	Description	OEM Part #	Price
20000	20000 MB599233 PEDAL,CLUTCH	MB599233	—
20003	20003 MB534533 CLIP, CLUTCH PEDAL	MB534533	US $5.77
20010	20010 MB193884 PAD, BRAKE PEDAL 62x58-40	MB193884	from US $3.26
20011B	20011B MB534525 BRACKET, CLUTCH PEDAL	MB534525	—
20014D	20014D MB012205 BUSHING, CLUTCH PEDAL 10.3x35	MB012205	US $3.55
20014E	20014E MB555171 BUSHING, CLUTCH PEDAL 10x8	MB555171	from US $4.11
20044C	20044C MB534531 SPRING, CLUTCH PEDAL RETURN	MB534531	US $16.28
20045	20045 MB004185 STOPPER, ACCEL PEDAL ARM	MB004185	US $4.38
20045	20045 MB151298 STOPPER, STEERING COLUMN BRACKET	MB151298	from US $2.52
20098B	20098B MS240125 BOLT, FUEL TANK Washer assembled,8x20	MS240125	from US $1.05
20919	20919 MB599879 LEVER, CLUTCH FLUID	MB599879	US $45.14
20921	20921 MB605790 SWITCH,CLUTCH	MB605790	—
53007C	53007C MB058634 BUSHING, CLUTCH PEDAL 18.3x10	MB058634	US $3.56
53007E	53007E MB534210 BUSHING, CLUTCH PEDAL 24x10	MB534210	US $6.98
53007F	53007F MB534211 BUSHING, CLUTCH PEDAL 17x10	MB534211	US $8.89
53010	53010 MB193884 PAD, BRAKE PEDAL 62x58-40	MB193884	from US $3.26
53012	53012 MB599230 PEDAL, BRAKE	MB599230	US $59.94
53022	53022 MB534772 ROD, BRAKE PEDAL	MB534772	US $43.66
53034B	53034B MB316046 SPRING, BRAKE PEDAL RETURN	MB316046	US $3.85
53035	53035 MB151298 STOPPER, STEERING COLUMN BRACKET	MB151298	from US $2.52
53084B	53084B MF450406 WASHER Spring,10	MF450406	from US $0.43
53084C	53084C MF451107 WASHER, FUEL FILLER LID LOCKING Wave,14	MF451107	US $3.28
53084E	53084E MF450006 WASHER, CYLINDER HEAD Plain,10	MF450006	from US $1.01
53092B	53092B MF430006 NUT 10	MF430006	from US $1.35
53092C	53092C MS440503 NUT, ENG FR MOUNTING Washer assembled,8	MS440503	from US $0.84
53098C	53098C MS240125 BOLT, FUEL TANK Washer assembled,8x20	MS240125	from US $1.05
53098G	53098G MF241251 BOLT, CYLINDER HEAD Washer assembled,8x16	MF241251	from US $0.98
53305	53305 MB599207 MEMBER, PEDAL SUPPORT	MB599207	—
66802	66802 MB479160 FOOTREST	MB479160	US $14.36
66806	66806 MB662196 CLIP, FOOTREST 6	MB662196	US $3.28
66893	66893 MB643881 CAP, FOOTREST	MB643881	US $4.65
66897	66897 MS440502 NUT, FUEL TANK Washer assembled,6	MS440502	from US $1.74
82110	82110 MB435457 SWITCH, STOP LAMP	MB435457	from US $9.52
82110	82110 MB596608 SWITCH, STOP LAMP	MB596608	from US $59.20

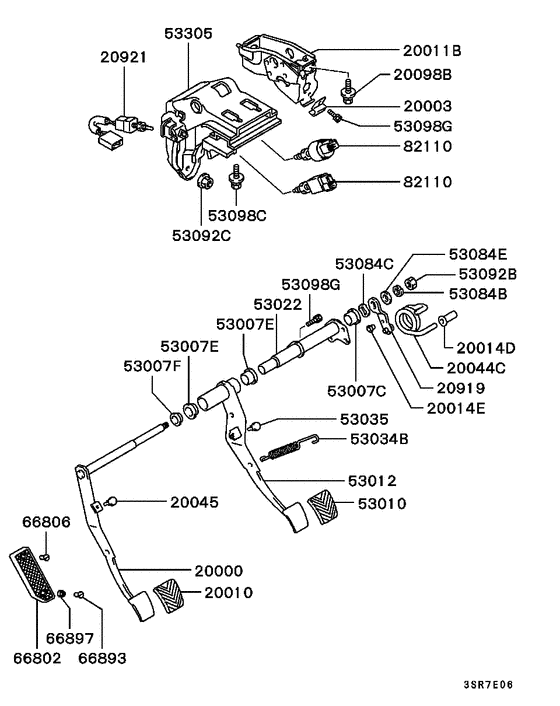

Brake & clutch pedal (M/T..TURBO) Diagram Mitsubishi ECLIPSE EUR/MMNA 1897866-166916

Brake & clutch pedal (M/T..TURBO) Diagram Mitsubishi ECLIPSE EUR/MMNA 1897866-166916
