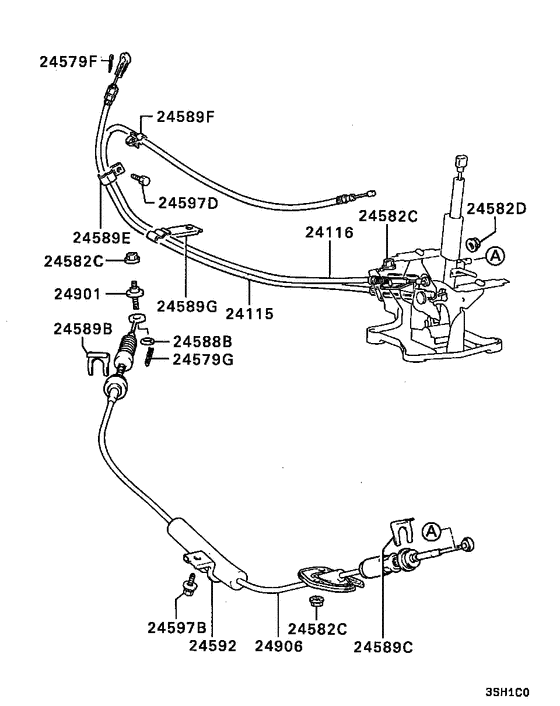

A/t floor shift linkage ('90MODEL-..CABLE ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1988 - 1994
- Sales region
- MMNA/MMNA
- Note
- HIGH LINE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24115
|
24115
MB580893 CABLE, GEARSHIFT LOCK |
MB580893 |
US $68.82 |
||
|
24116
|
24116
MB580894 CABLE, GEARSHIFT KEY LOCK |
MB580894 |
US $59.20 |
||
|
24579F
|
24579F
MF472026 PIN, BRAKE PEDALSplit,1.6x20 |
MF472026 |
US $1.04 |
||
|
24579G
|
24579G
MB844379 PIN, GEARSHIFT LINKSnap,8 |
MB844379 |
from US $4.15 |
||
|
24579G
|
24579G
MF472040 PIN, CLUTCH M/CYLSplit,2x25 |
MF472040 |
US $0.96 |
||
|
24582C
|
24582C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
24582D
|
24582D
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
24582D
|
24582D
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
24588B
|
24588B
MB180001 WASHER, GEARSHIFT LINKPlain,13.5 |
MB180001 |
US $3.97 |
||
|
24588B
|
24588B
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
24589B
|
24589B
MB367526 CLIP, GEARSHIFT LINK |
MB367526 |
US $6.43 |
||
|
24589C
|
24589C
MB307554 CLIP, GEARSHIFT LINK |
MB307554 |
US $3.11 |
||
|
24589E
|
24589E
MB580763 CLIP, GEARSHIFT LINK6x2 |
MB580763 |
US $4.74 |
||
|
24589F
|
24589F
MU481053 CLIP, CHOKE CABLE5 |
MU481053 |
US $3.01 |
||
|
24589G
|
24589G
MB580895 CLIP, GEARSHIFT LINK |
MB580895 |
US $9.77 |
||
|
24592
|
24592
MB484583 CLAMP, GEARSHIFT LINK |
MB484583 |
US $5.18 |
||
|
24597B
|
24597B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
24597B
|
24597B
MS240147 BOLT, GLOW CONTROL EQUIPWasher assembled,8x30 |
MS240147 |
from US $1.44 |
||
|
24597B
|
24597B
MS240421
BOLT, GEARSHIFT LINK
|
MS240421 |
— | ||
|
24597D
|
24597D
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
24597D
|
24597D
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
24901
|
24901
MB580579 ADJUSTER, GEARSHIFT CABLE |
MB580579 |
US $12.28 |
||
|
24901
|
24901
MB892142 ADJUSTER, GEARSHIFT CABLE |
MB892142 |
US $9.03 |
||
|
24906
|
24906
MB580581
CABLE,GEARSHIFT
|
MB580581 |
— | ||
|
24906
|
24906
MB580583
CABLE,GEARSHIFT
|
MB580583 |
— | ||
|
24906
|
24906
MB580896 CABLE, GEARSHIFT |
MB580896 |
US $115.44 |
