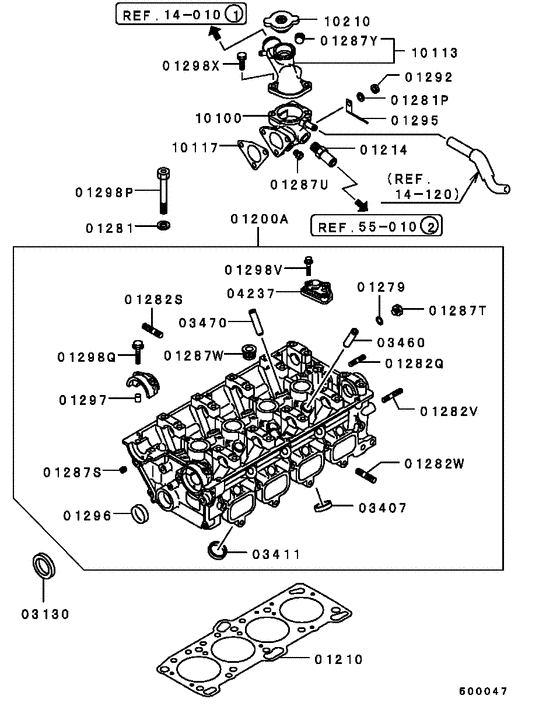

Cylinder head (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1990 - 1992
- Sales region
- PUERTO RICO/MMNA
- Note
- HIGH LINE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01200A
|
01200A
MD147281
HEAD ASSY, ENG CYLINDER
|
MD147281 |
— | ||
|
01200A
|
01200A
MD190769
HEAD ASSY, ENG CYLINDER
|
MD190769 |
— | ||
|
01210
|
01210
MD113173 GASKET, CYLINDER HEAD |
MD113173 |
US $96.20 |
||
|
01210
|
01210
MD183808 GASKET, CYLINDER HEAD |
MD183808 |
from US $89.82 |
||
|
01214
|
01214
MD020631 JOINT, CYLINDER HEAD |
MD020631 |
from US $13.27 |
||
|
01279
|
01279
MF660063 GASKET, CYLINDER HEAD PLUGD=10 |
MF660063 |
from US $0.43 |
||
|
01281
|
01281
MD020733 WASHER, CYLINDER HEADPlain,12.5 |
MD020733 |
from US $1.66 |
||
|
01281P
|
01281P
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
01282Q
|
01282Q
MS401427 STUD, CYLINDER HEAD8x25 |
MS401427 |
from US $1.07 |
||
|
01282S
|
01282S
MD005317 STUD, CYLINDER HEAD8x28 |
MD005317 |
from US $2.11 |
||
|
01282V
|
01282V
MS401431 STUD, CYLINDER HEAD8x35 |
MS401431 |
US $3.11 |
||
|
01282W
|
01282W
MS401452 STUD, CYLINDER HEAD10x30 |
MS401452 |
from US $2.52 |
||
|
01287S
|
01287S
MS661140 PLUG, CYLINDER HEADTaper,1/8 |
MS661140 |
US $3.15 |
||
|
01287T
|
01287T
MD137353 PLUG, CYLINDER HEADScrew,10 |
MD137353 |
US $10.95 |
||
|
01287U
|
01287U
MD014929 PLUG, CYLINDER HEADTaper,1/8 |
MD014929 |
US $3.28 |
||
|
01287W
|
01287W
MD122446 PLUG, CYLINDER HEADScrew,22 |
MD122446 |
US $9.92 |
||
|
01287Y
|
01287Y
MS661162 PLUG, INLET MANIFOLDTaper,3/8 |
MS661162 |
from US $3.43 |
||
|
01292
|
01292
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
01295
|
01295
MS470058 CLIP, ROCKER COVERL=60 |
MS470058 |
from US $1.74 |
||
|
01296
|
01296
MF665541 CAP, CYLINDER BLOCK (HEAD)Sealing,35 |
MF665541 |
from US $1.31 |
||
|
01297
|
01297
MD132806 BUSHING, CYLINDER HEAD10x12 |
MD132806 |
US $2.46 |
||
|
01298P
|
01298P
MD121887 BOLT, CYLINDER HEAD12x84 |
MD121887 |
US $7.10 |
||
|
01298P
|
01298P
MD191470 BOLT, CYLINDER HEADWasher assembled,11x97 |
MD191470 |
from US $4.29 |
||
|
01298Q
|
01298Q
MF140232 BOLT, CYLINDER HEADFlange,8x38 |
MF140232 |
from US $1.13 |
||
|
01298V
|
01298V
MF140209 BOLT, ROCKER COVERFlange,6x25 |
MF140209 |
from US $0.84 |
||
|
01298X
|
01298X
MF241855 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241855 |
US $3.01 |
||
|
03130
|
03130
MD008762 OIL SEAL, CAMSHAFT |
MD008762 |
US $11.40 |
||
| replacement | |||||
|
03130
|
03130
MD372536 OIL SEAL, CAMSHAFT |
MD372536 |
from US $7.33 |
||
|
03130
|
03130
MD153103
OIL SEAL, CAMSHAFT
|
MD153103 |
— | ||
| replacement | |||||
|
03130
|
03130
MD372536 OIL SEAL, CAMSHAFT |
MD372536 |
from US $7.33 |
||
|
03407
|
03407
MD117726 SEAT, EXHAUST VALVEO/size 0.30 |
MD117726 |
US $44.40 |
||
|
03407
|
03407
MD128762 SEAT, EXHAUST VALVEO/size 0.60 |
MD128762 |
US $44.40 |
||
|
03407
|
03407
MD169655 SEAT, EXHAUST VALVEO/size 0.30 |
MD169655 |
from US $31.45 |
||
|
03407
|
03407
MD169656
SEAT, EXHAUST VALVE
|
MD169656 |
— | ||
|
03411
|
03411
MD121489 SEAT, INLET VALVEO/size 0.30 |
MD121489 |
US $44.40 |
||
|
03411
|
03411
MD128846 SEAT, INLET VALVEO/size 0.60 |
MD128846 |
US $44.40 |
||
|
03411
|
03411
MD169831 SEAT, INLET VALVEO/size 0.30 |
MD169831 |
US $43.78 |
||
|
03411
|
03411
MD169832
SEAT, INLET VALVE
|
MD169832 |
— | ||
|
03460
|
03460
MD126605 GUIDE, INLET VALVEO/size 0.05 |
MD126605 |
US $22.94 |
||
|
03460
|
03460
MD126606 GUIDE, INLET VALVEO/size 0.50 |
MD126606 |
US $22.94 |
||
|
03460
|
03460
MD128844 GUIDE, INLET VALVEO/size 0.25 |
MD128844 |
US $22.94 |
||
|
03470
|
03470
MD126608
GUIDE, EXHAUST VALVE
|
MD126608 |
— | ||
| replacement | |||||
|
03470
|
03470
MD372795 GUIDE, EXHAUST VALVEO/size 0.05 |
MD372795 |
from US $32.15 |
||
|
03470
|
03470
MD126609 GUIDE, EXHAUST VALVEO/size 0.50 |
MD126609 |
US $22.94 |
||
|
03470
|
03470
MD128845 GUIDE, EXHAUST VALVEO/size 0.25 |
MD128845 |
US $22.94 |
||
|
04237
|
04237
MD165170 BODY ASSY, LASH ADJUSTER OIL PRESSURE VALVE |
MD165170 |
US $28.12 |
||
|
04237
|
04237
MD167599 BODY, LASH ADJUSTER OIL DELIVERY |
MD167599 |
US $26.64 |
||
|
10100
|
10100
MD130433 CASE, THERMOSTAT |
MD130433 |
US $125.06 |
||
|
10100
|
10100
MD190337 CASE, THERMOSTAT |
MD190337 |
US $116.92 |
||
|
10113
|
10113
MD130457
FITTING, COOLING WATER OUTLET HOSE
|
MD130457 |
— | ||
|
10117
|
10117
MD145038 GASKET, THERMOSTAT CASE |
MD145038 |
US $6.07 |
||
|
10210
|
10210
MB222066
CAP, RADIATOR
|
MB222066 |
— | ||
| replacement | |||||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
