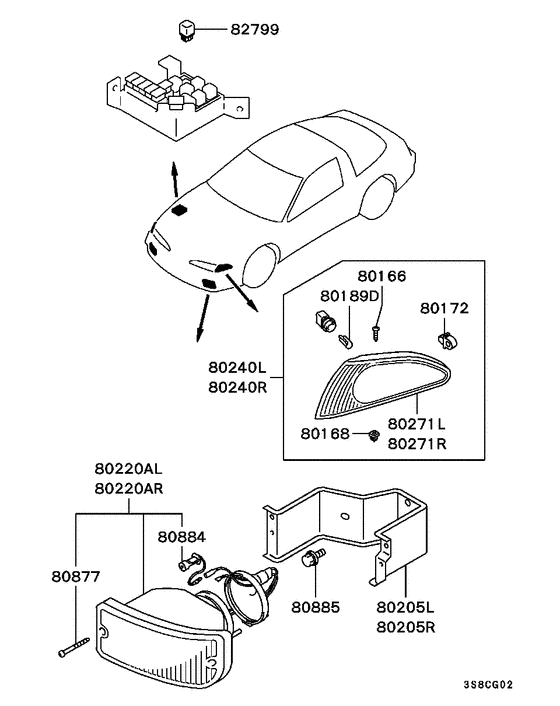

Front exterior lamp ('92MODEL-) Diagram Mitsubishi ECLIPSE
- Year
- 1990 - 1992
- Sales region
- PUERTO RICO/MMNA
- Note
- HIGH LINE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80166
|
80166
MF453079 SCREW, FR FENDERTapping,4x16 |
MF453079 |
from US $1.52 |
||
|
80166
|
80166
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
80166
|
80166
MS200125 SCREW, FR SEAT BELTMachine tapping,5x12 |
MS200125 |
US $2.81 |
||
|
80168
|
80168
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $1.07 |
||
|
80172
|
80172
MB596509
CLIP,FR LAMP
|
MB596509 |
— | ||
|
80189D
|
80189D
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80205L
|
80205L
MB542459
BRACKET,FR FOG LAMP,LH
|
MB542459 |
— | ||
|
80205R
|
80205R
MB542460
BRACKET,FR FOG LAMP,RH
|
MB542460 |
— | ||
|
80220AL
|
80220AL
MB542457
LAMP ASSY,FOG,FR LH
|
MB542457 |
— | ||
|
80220AR
|
80220AR
MB542458
LAMP ASSY,FOG,FR RH
|
MB542458 |
— | ||
|
80240L
|
80240L
MB597765
LAMP KIT,COMBINATION,FR LH
|
MB597765 |
— | ||
|
80240L
|
80240L
MB861295
LAMP KIT,COMBINATION,FR LH
|
MB861295 |
— | ||
|
80240R
|
80240R
MB597766
LAMP KIT,COMBINATION,FR RH
|
MB597766 |
— | ||
|
80240R
|
80240R
MB861296
LAMP KIT,COMBINATION,FR RH
|
MB861296 |
— | ||
|
80271L
|
80271L
MB596571
LAMP UNIT,COMBINATION,FR LH
|
MB596571 |
— | ||
|
80271L
|
80271L
MB881775
LAMP UNIT,COMBINATION,FR LH
|
MB881775 |
— | ||
|
80271R
|
80271R
MB596572
LAMP UNIT,COMBINATION,FR RH
|
MB596572 |
— | ||
|
80271R
|
80271R
MB881776
LAMP UNIT,COMBINATION,FR RH
|
MB881776 |
— | ||
|
80877
|
80877
MB596489
SCREW,FOG LAMP
|
MB596489 |
— | ||
|
80884
|
80884
MB381005 BULB, FR TURN SIGNAL LAMP12v-35w |
MB381005 |
US $50.32 |
||
|
80885
|
80885
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
82799
|
82799
MB084670 RELAY, ENG CONTROL EQUIP |
MB084670 |
from US $21.94 |
||
|
82799
|
82799
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
82799
|
82799
MB543647 CONTROL UNIT, DOORG8r-27m |
MB543647 |
US $69.56 |
