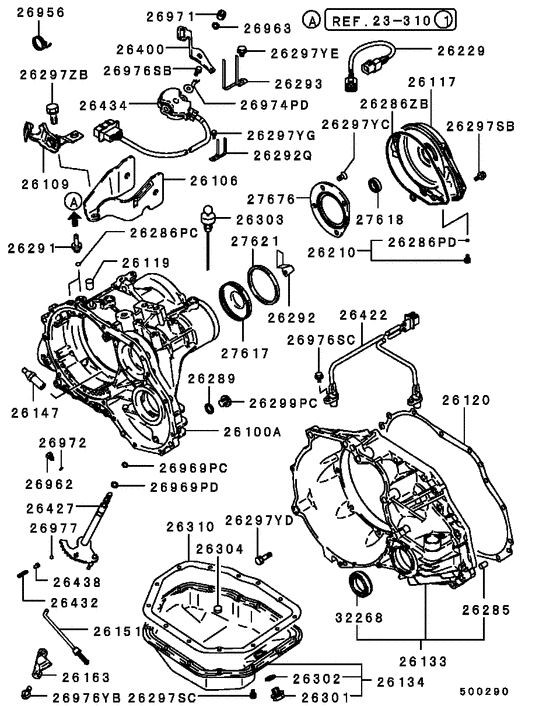

A/t case (ALL (EQUIPMENT PARTS OF T/M CASE)) Diagram Mitsubishi ECLIPSE
- Year
- 1988 - 1994
- Sales region
- MMNA/MMNA
- Note
- HIGH LINE,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26100A
|
26100A
MD727997 CASE ASSY, A/T |
MD727997 |
US $879.42 |
||
|
26100A
|
26100A
MD739900 CASE ASSY, A/T |
MD739900 |
US $726.54 |
||
|
26100A
|
26100A
MD755611 CASE ASSY, A/T |
MD755611 |
US $776.05 |
||
|
26106
|
26106
MD733094
BRACKET,A/T CASE MOUNTING
|
MD733094 |
— | ||
|
26106
|
26106
MD737085 BRACKET, A/T CASE MOUNTING |
MD737085 |
US $107.30 |
||
|
26106
|
26106
MD754469 BRACKET, A/T CASE MOUNTING |
MD754469 |
US $99.16 |
||
|
26109
|
26109
MD735479 BRACKET, A/T CASE MANUAL CONTROL CABLE |
MD735479 |
US $45.14 |
||
|
26109
|
26109
MD752333 BRACKET, A/T CASE MANUAL CONTROL CABLE |
MD752333 |
US $54.76 |
||
|
26117
|
26117
MD729730 COVER, T/F DRIVE SHAFT BEARING |
MD729730 |
US $70.30 |
||
|
26117
|
26117
MD754975 COVER, A/T CASE, RR |
MD754975 |
US $113.22 |
||
|
26119
|
26119
MD728103 CAP, A/T CASE |
MD728103 |
US $6.29 |
||
|
26120
|
26120
MD730804 GASKET, A/T CASE TO CLUTCH HOUSING |
MD730804 |
US $34.78 |
||
|
26133
|
26133
MD721830 HOUSING, A/T TORQUE CONVERTER |
MD721830 |
US $419.33 |
||
|
26134
|
26134
MD728230 OIL PAN, A/T CASE |
MD728230 |
US $79.92 |
||
|
26134
|
26134
MD735338 OIL PAN, A/T CASE |
MD735338 |
US $97.68 |
||
|
26134
|
26134
MD754043 OIL PAN, A/T CASE |
MD754043 |
US $83.62 |
||
|
26147
|
26147
MD714430 ROD, A/T CASE ANCHOR |
MD714430 |
US $12.28 |
||
|
26151
|
26151
MD733430 ROD, A/T PARKING PAWL |
MD733430 |
US $15.54 |
||
|
26163
|
26163
MD707617 SUPPORT, A/T PARKING PAWL ROD |
MD707617 |
US $20.72 |
||
|
26210
|
26210
MD707198 PLUG KIT, A/T CASE |
MD707198 |
US $5.48 |
||
|
26229
|
26229
MD731991 HARNESS, A/T |
MD731991 |
US $112.48 |
||
|
26285
|
26285
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
26286PC
|
26286PC
MD707200
O-RING, OIL FILTER
|
MD707200 |
— | ||
| replacement | |||||
|
26286PC
|
26286PC
MR486844 O-RING, A/T CASE9.8 |
MR486844 |
from US $1.25 |
||
|
26286PD
|
26286PD
MD707187
O-RING, A/T CASE
|
MD707187 |
— | ||
| replacement | |||||
|
26286PD
|
26286PD
2502A002 PLUG KIT, A/T CASE |
2502A002 |
US $2.46 |
||
|
26286ZB
|
26286ZB
MD729729 O-RING, A/T CASE |
MD729729 |
US $7.25 |
||
|
26289
|
26289
MF660035 GASKET, ENG OIL PAN DRAIN PLUGD=14 |
MF660035 |
from US $0.64 |
||
|
26291
|
26291
MD707199 JOINT, A/T CASE |
MD707199 |
US $10.21 |
||
| replacement | |||||
|
26291
|
26291
2502A007 JOINT, A/T CASE |
2502A007 |
US $6.66 |
||
|
26292
|
26292
MD731280 HOLDER, T/F DRIVEN GEAR COVER |
MD731280 |
US $4.59 |
||
|
26292Q
|
26292Q
MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP6.6-40/55 |
MB113038 |
US $3.97 |
||
|
26292Q
|
26292Q
MB875984 CLIP, ENG WIRING6.6-60/75 |
MB875984 |
US $3.85 |
||
|
26293
|
26293
MB627838
CLIP, A/T CASE
|
MB627838 |
— | ||
|
26297SB
|
26297SB
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
26297SB
|
26297SB
MF140206 BOLT, CYLINDER HEADFlange,6x18 |
MF140206 |
from US $0.78 |
||
|
26297SC
|
26297SC
MF241223 BOLT, ROCKER COVERWasher assembled,6x12 |
MF241223 |
from US $1.05 |
||
|
26297SC
|
26297SC
MF241823 BOLT, FUEL INJECTORWasher assembled,6x12 |
MF241823 |
US $3.42 |
||
|
26297SC
|
26297SC
MF241824 BOLT, ROCKER COVERWasher assembled,6x14 |
MF241824 |
US $2.22 |
||
|
26297YC
|
26297YC
MD704449
BOLT, M/T CASE
|
MD704449 |
— | ||
| replacement | |||||
|
26297YC
|
26297YC
32152W000P BOLT, M/T CASE |
32152W000P |
from US $2.69 |
||
|
26297YC
|
26297YC
MD734702
BOLT, A/T CASE
|
MD734702 |
— | ||
|
26297YD
|
26297YD
MF241262 BOLT, ENG RH COVERWasher assembled,8x45 |
MF241262 |
US $4.10 |
||
|
26297YE
|
26297YE
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
26297YG
|
26297YG
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
26297YG
|
26297YG
MF241222 BOLT, ROCKER COVERWasher assembled,6x10 |
MF241222 |
from US $1.76 |
||
|
26297ZB
|
26297ZB
MF241308 BOLT, A/T CASEWasher assembled,12x28 |
MF241308 |
from US $2.55 |
||
|
26297ZB
|
26297ZB
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
26299PC
|
26299PC
MD050316 PLUG, ENG OIL PAN... |
MD050316 |
from US $5.30 |
||
|
26301
|
26301
MD050316 PLUG, ENG OIL PAN... |
MD050316 |
from US $5.30 |
||
|
26302
|
26302
MD050317 GASKET, ENG OIL PAN DRAIN PLUGD=14 |
MD050317 |
from US $1.23 |
||
|
26303
|
26303
MD732520
GAUGE, A/T OIL LEVEL
|
MD732520 |
— | ||
|
26303
|
26303
MD738772 GAUGE, A/T OIL LEVEL |
MD738772 |
US $34.20 |
||
|
26304
|
26304
MD955485 MAGNET, M/T CASE |
MD955485 |
from US $2.05 |
||
|
26310
|
26310
MD707183 GASKET, A/T OIL PAN |
MD707183 |
US $7.84 |
||
|
26310
|
26310
MD739235 GASKET, A/T OIL PAN |
MD739235 |
from US $15.05 |
||
|
26400
|
26400
MD733344 LEVER, A/T MANUAL CONTROL |
MD733344 |
US $14.65 |
||
|
26422
|
26422
MD732752 PULSE GENERATOR, A/T |
MD732752 |
US $144.30 |
||
|
26422
|
26422
MD751038 PULSE GENERATOR, A/T |
MD751038 |
US $159.84 |
||
|
26422
|
26422
MD754150 PULSE GENERATOR, A/T |
MD754150 |
US $159.84 |
||
|
26427
|
26427
MD728646 SHAFT, A/T MANUAL CONTROL LEVER |
MD728646 |
US $41.44 |
||
|
26427
|
26427
MD738300 SHAFT, A/T MANUAL CONTROL LEVER |
MD738300 |
US $44.40 |
||
|
26432
|
26432
MD728177 SPRING, A/T MANUAL CONTROL SHAFT POPPET |
MD728177 |
US $2.07 |
||
|
26434
|
26434
MD734632
SWITCH, A/T CASE INHIBITOR
|
MD734632 |
— | ||
|
26434
|
26434
MD753631 SWITCH, A/T CASE INHIBITOR |
MD753631 |
US $139.54 |
||
|
26438
|
26438
MD728554 SEAT, A/T MANUAL CONTROL SHAFT POPPET SPRING |
MD728554 |
US $5.18 |
||
|
26956
|
26956
MD129756 CLAMP, A/T CONTROL EQUIP |
MD129756 |
US $3.40 |
||
|
26962
|
26962
MD707601 SET SCREW, A/T CONTROL EQUIP8x11.3 |
MD707601 |
US $3.55 |
||
|
26963
|
26963
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
26969PC
|
26969PC
MD726966 O-RING, A/T CONTROL EQUIP8.2 |
MD726966 |
from US $1.29 |
||
|
26969PD
|
26969PD
MD707200
O-RING, OIL FILTER
|
MD707200 |
— | ||
| replacement | |||||
|
26969PD
|
26969PD
MR486844 O-RING, A/T CASE9.8 |
MR486844 |
from US $1.25 |
||
|
26971
|
26971
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
26972
|
26972
MF660032 GASKET, ENG OIL LINE8 |
MF660032 |
from US $1.29 |
||
|
26974PD
|
26974PD
MD733499
CLAMP, A/T CONTROL EQUIP
|
MD733499 |
— | ||
|
26976SB
|
26976SB
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
26976SB
|
26976SB
MF140206 BOLT, CYLINDER HEADFlange,6x18 |
MF140206 |
from US $0.78 |
||
|
26976SC
|
26976SC
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
26976YB
|
26976YB
MF140226 BOLT, ENG OIL PANFlange,8x22 |
MF140226 |
from US $1.31 |
||
|
26976YB
|
26976YB
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
26977
|
26977
MF540010 BALL, CAMSHAFT5/16 |
MF540010 |
from US $1.31 |
||
|
27617
|
27617
MD723058 COVER, T/F DRIVEN GEAR |
MD723058 |
US $12.28 |
||
|
27618
|
27618
MD730062 BEARING, A/T INPUT SHAFT, RRBall,30 |
MD730062 |
US $22.20 |
||
|
27618
|
27618
MD736846 BEARING, A/T INPUT SHAFT, RRBall,31 |
MD736846 |
US $76.22 |
||
|
27621
|
27621
MD719815 D-RING, T/F CASE77.7 |
MD719815 |
US $7.25 |
||
|
27676
|
27676
MD722543 RETAINER, A/T T/F DRIVE SHAFT BEARING |
MD722543 |
US $62.16 |
||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
|
