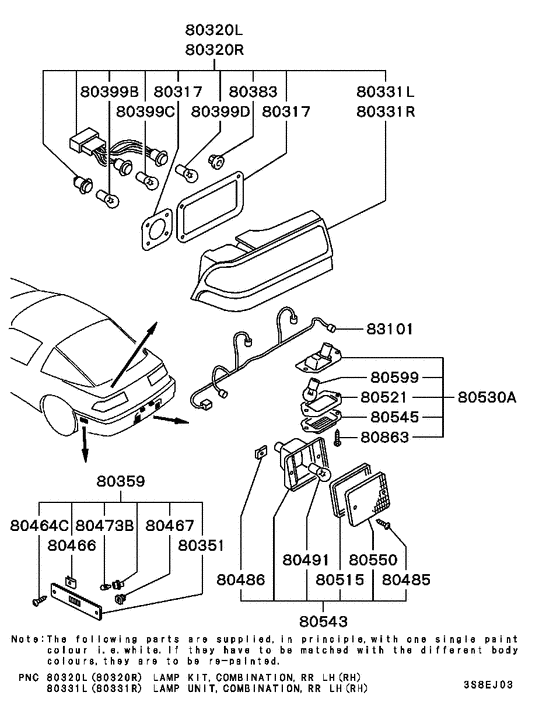

Rear exterior lamp (COMBINATION LAMP ETC.'92MODEL-) Diagram Mitsubishi ECLIPSE
- Year
- 1990 - 1994
- Sales region
- EUR/MMNA
- Note
- HIGH LINE,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80317
|
80317
MB596519 GASKET, RR COMBINATION LAMP |
MB596519 |
US $12.88 |
||
|
80317
|
80317
MB596520 GASKET, RR COMBINATION LAMP |
MB596520 |
US $6.81 |
||
|
80320L
|
80320L
MB597771
LAMP KIT,COMBINATION,RR LH
|
MB597771 |
— | ||
|
80320L
|
80320L
MB861925
LAMP KIT,COMBINATION,RR LH
|
MB861925 |
— | ||
|
80320R
|
80320R
MB597772
LAMP KIT,COMBINATION,RR RH
|
MB597772 |
— | ||
|
80320R
|
80320R
MB861926
LAMP KIT,COMBINATION,RR RH
|
MB861926 |
— | ||
|
80331L
|
80331L
MB623381
LAMP UNIT,COMBINATION,RR LH
|
MB623381 |
— | ||
|
80331L
|
80331L
MB881761
LAMP UNIT,COMBINATION,RR LH
|
MB881761 |
— | ||
|
80331R
|
80331R
MB623388
LAMP UNIT,COMBINATION,RR RH
|
MB623388 |
— | ||
|
80331R
|
80331R
MB881762
LAMP UNIT,COMBINATION,RR RH
|
MB881762 |
— | ||
|
80351
|
80351
MB596494 LAMP UNIT,SIDE MARKER,RR |
MB596494 |
US $30.34 |
||
|
80359
|
80359
MB597718 LAMP KIT,SIDE MARKER & REFLECTOR,RR |
MB597718 |
US $30.34 |
||
|
80383
|
80383
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
80399B
|
80399B
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80399B
|
80399B
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80399C
|
80399C
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80399D
|
80399D
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80464C
|
80464C
MB596495
SCREW, RR LAMP
|
MB596495 |
— | ||
|
80466
|
80466
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80467
|
80467
MU480001 GROMMET, FR BUMPERScrew,4 |
MU480001 |
US $4.10 |
||
|
80473B
|
80473B
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80485
|
80485
MS450946
SCREW, BACKUP LAMP
|
MS450946 |
— | ||
|
80486
|
80486
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80491
|
80491
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80515
|
80515
MB596493 GASKET, BACKUP LAMP |
MB596493 |
US $5.62 |
||
|
80521
|
80521
MB596502 GASKET, LICENSE PLATE LAMP LENS |
MB596502 |
from US $1.46 |
||
|
80530A
|
80530A
MB530248
LAMP ASSY,LICENSE PLATE
|
MB530248 |
— | ||
|
80543
|
80543
MB597781 LAMP KIT, BACKUP12v-27w |
MB597781 |
US $39.96 |
||
|
80545
|
80545
MB596500 LENS, LICENSE PLATE LAMP |
MB596500 |
from US $2.57 |
||
|
80550
|
80550
MB596492 LENS, BACKUP LAMP |
MB596492 |
US $5.62 |
||
|
80599
|
80599
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80863
|
80863
MS200335 SCREW, LICENSE PLATE LAMPMachine,4x14 |
MS200335 |
US $2.60 |
||
|
83101
|
83101
MB530247 HARNESS, LICENSE PLATE LAMP |
MB530247 |
US $107.30 |
||
|
83101
|
83101
MB823883
HARNESS,LICENSE PLATE LAMP
|
MB823883 |
— |
