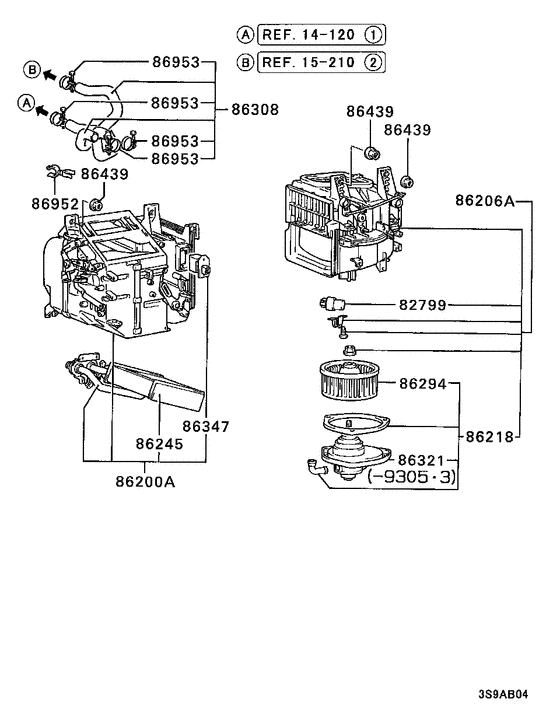

Heater unit & piping Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1993
- Sales region
- MMNA
- Note
- GS,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82799
|
82799
MB084670 RELAY, ENG CONTROL EQUIP |
MB084670 |
from US $21.94 |
||
|
82799
|
82799
MB543647 CONTROL UNIT, DOORG8r-27m |
MB543647 |
US $69.56 |
||
|
86200A
|
86200A
MB438662 HEATER ASSY |
MB438662 |
US $288.60 |
||
|
86200A
|
86200A
MB813613 HEATER ASSY |
MB813613 |
US $541.63 |
||
|
86206A
|
86206A
MB568299 BLOWER ASSY, HEATER |
MB568299 |
US $397.49 |
||
|
86218
|
86218
MB439838 FAN & MOTOR KIT, HEATER |
MB439838 |
US $318.86 |
||
|
86245
|
86245
MB439468
CORE, HEATER
|
MB439468 |
— | ||
|
86294
|
86294
MB080777 FAN, HEATER BLOWER |
MB080777 |
US $29.45 |
||
|
86294
|
86294
MB188930
FAN, HEATER BLOWER
|
MB188930 |
— | ||
|
86308
|
86308
MB527995 HOSE KIT, HEATER WATER |
MB527995 |
US $44.40 |
||
|
86321
|
86321
MB568800
MOTOR, HEATER BLOWER
|
MB568800 |
— | ||
|
86347
|
86347
MB439839
RESISTOR, HEATER
|
MB439839 |
— | ||
|
86439
|
86439
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86952
|
86952
MS470478 CLIP, HEATER PIPING22.5-22.5 |
MS470478 |
US $5.62 |
||
|
86953
|
86953
MA609047 CLIP, FUEL LINED=25 |
MA609047 |
from US $2.24 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
