	Description	OEM Part #	Price
27222	27222 MD731176 SHAFT, A/T END CLUTCH	MD731176	US $79.92
27600A	27600A MD732754 CARRIER ASSY, A/T PLANETARY	MD732754	—
27601	27601 MD710663 BEARING, M/T DIFF CASE Taper roller,72	MD710663	from US $19.15
27601P	27601P MD710663 BEARING, M/T DIFF CASE Taper roller,72	MD710663	from US $19.15
27608	27608 MD718323 BEARING, T/F DRIVEN SHAFT GEAR, RR Taper roller,68	MD718323	US $70.30
27611	27611 MD718322 BEARING, M/T OUTPUT SHAFT Taper roller,71.5	MD718322	US $46.51
27624	27624 MD731168 FLANGE, A/T OUTPUT	MD731168	US $22.94
27628XB	27628XB MD731161 BEARING, T/F DRIVE GEAR	MD731161	—
27628XC	27628XC MD731160 BEARING, T/F DRIVE GEAR	MD731160	—
27633	27633 MD734433 GEAR,A/T DIFF DRIVE	MD734433	—
27633	27633 MD740939 GEAR, A/T DIFF DRIVE N=57	MD740939	US $569.30
27640	27640 MD735034 CASE, A/T DIFF	MD735034	US $471.74
27640	27640 MD751507 CASE, A/T DIFF	MD751507	US $518.34
27642	27642 MD731153 GEAR, A/T PLANETARY ANNULUS	MD731153	US $227.92
27643	27643 MD731165 GEAR, A/T PLANETARY FWD SUN	MD731165	US $150.96
27644	27644 MD735060 GEAR, A/T PLANETARY REV SUN	MD735060	US $349.44
27648	27648 MD740494 GEAR, T/F DRIVE	MD740494	US $302.85
27650	27650 MD733840 GEAR KIT, M/T DIFF	MD733840	US $287.12
27650	27650 MD752753 GEAR KIT, A/T DIFF	MD752753	US $291.56
27654	27654 MD750643 GEAR, T/F IDLER N=37	MD750643	US $187.96
27661	27661 MD731785 ONE-WAY CLUTCH, A/T PLANETARY	MD731785	US $189.44
27666	27666 MD734261 PLATE, A/T PLANETARY STOPPER	MD734261	US $4.74
27667	27667 MD734962 PLATE, T/F IDLER SHAFT LOCK	MD734962	—
27669	27669 MD712247 PIN, M/T POWER TRAIN	MD712247	—
27670	27670 MD750646 SHAFT,A/T OUTPUT	MD750646	—
27670	27670 MD757439 SHAFT, A/T OUTPUT	MD757439	US $1,641.60
27674	27674 MD736246 RACE, A/T PLANETARY ONE-WAY CLUTCH, OTR	MD736246	US $205.72
27697	27697 MD722632 SHAFT, A/T DIFF PINION	MD722632	US $39.96
27702	27702 MD733205 SHAFT, T/F IDLER GEAR	MD733205	US $102.86
27706	27706 MD997795 SPACER SET, A/T DIFF SIDE GEAR	MD997795	US $42.41
27717	27717 MA145188 WASHER, M/T POWER TRAIN Spring,17.3	MA145188	US $3.69
27717	27717 MD722981 WASHER, A/T POWER TRAIN Spring,18.3	MD722981	US $5.18
27717P	27717P MD739374 WASHER, A/T POWER TRAIN Spring,6.7	MD739374	US $4.59
27742	27742 MD734098 PLATE, T/F DRIVE GEAR STOPPER	MD734098	US $22.94
27788	27788 MD732499 RIVET, A/T POWER TRAIN 5x22.5	MD732499	US $3.26
27791SB	27791SB MD733638 SPACER, A/T POWER TRAIN 1.0	MD733638	US $7.10
27791SC	27791SC MD728802 SPACER, A/T POWER TRAIN 0.74	MD728802	US $7.10
27791SC	27791SC MD728803 SPACER, A/T POWER TRAIN 0.77	MD728803	US $7.10
27791SC	27791SC MD728804 SPACER, A/T POWER TRAIN 0.80	MD728804	US $7.10
27791SC	27791SC MD728805 SPACER, A/T POWER TRAIN 0.83	MD728805	US $7.10
27791SC	27791SC MD728806 SPACER, A/T POWER TRAIN 0.86	MD728806	US $7.10
27791SC	27791SC MD728807 SPACER, A/T POWER TRAIN 0.89	MD728807	US $7.10
27791SC	27791SC MD728808 SPACER, A/T POWER TRAIN 0.92	MD728808	US $7.10
27791SC	27791SC MD728809 SPACER, A/T POWER TRAIN 0.95	MD728809	US $7.10
27791SC	27791SC MD728810 SPACER, A/T POWER TRAIN 0.98	MD728810	US $7.10
27791SC	27791SC MD728811 SPACER, A/T POWER TRAIN 1.01	MD728811	US $7.10
27791SC	27791SC MD728812 SPACER, A/T POWER TRAIN 1.04	MD728812	US $7.10
27791SC	27791SC MD728813 SPACER, A/T POWER TRAIN 1.07	MD728813	US $7.10
27791SC	27791SC MD728814 SPACER, A/T POWER TRAIN 1.10	MD728814	US $7.10
27791SC	27791SC MD728815 SPACER, A/T POWER TRAIN 1.13	MD728815	US $7.10
27791SC	27791SC MD728816 SPACER, A/T POWER TRAIN 1.16	MD728816	US $7.10
27791SC	27791SC MD728817 SPACER, A/T POWER TRAIN 1.19	MD728817	US $7.10
27791SC	27791SC MD728818 SPACER, A/T POWER TRAIN 1.22	MD728818	US $7.10
27791SC	27791SC MD728819 SPACER, A/T POWER TRAIN 1.25	MD728819	US $7.10
27791SC	27791SC MD728820 SPACER, A/T POWER TRAIN 1.28	MD728820	US $7.10
27791SC	27791SC MD728821 SPACER, A/T POWER TRAIN 1.31	MD728821	US $7.10
27791SC	27791SC MD737444 SPACER, A/T POWER TRAIN 0.62	MD737444	US $7.10
27791SC	27791SC MD737445 SPACER, A/T POWER TRAIN 0.65	MD737445	US $7.10
27791SC	27791SC MD737446 SPACER, A/T POWER TRAIN 0.68	MD737446	US $7.10
27791SC	27791SC MD737447 SPACER, A/T POWER TRAIN 0.71	MD737447	US $7.10
27791SE	27791SE MD700270 SPACER, M/T DIFF 1.13	MD700270	US $6.02
27791SE	27791SE MD700271 SPACER, M/T DIFF 1.22	MD700271	from US $5.11
27791SE	27791SE MD706574 SPACER, M/T DIFF 1.31	MD706574	US $6.84
27791SE	27791SE MD710454 SPACER, M/T DIFF 1.10	MD710454	US $6.02
27791SE	27791SE MD710455 SPACER, M/T DIFF 1.16	MD710455	US $6.02
27791SE	27791SE MD710456 SPACER, M/T DIFF 1.19	MD710456	from US $4.93
27791SE	27791SE MD710457 SPACER, M/T DIFF 1.25	MD710457	US $6.02
27791SE	27791SE MD710458 SPACER, M/T DIFF 1.28	MD710458	US $6.84
27791SE	27791SE MD710459 SPACER, M/T DIFF 1.34	MD710459	US $6.84
27791SE	27791SE MD710460 SPACER, M/T DIFF 1.37	MD710460	from US $5.11
27791SE	27791SE MD720937 SPACER, M/T DIFF 0.83	MD720937	from US $5.07
27791SE	27791SE MD720938 SPACER, M/T DIFF 0.86	MD720938	US $6.02
27791SE	27791SE MD720939 SPACER, M/T DIFF 0.89	MD720939	from US $5.11
27791SE	27791SE MD720940 SPACER, M/T DIFF 0.92	MD720940	from US $5.11
27791SE	27791SE MD720941 SPACER, M/T DIFF 0.95	MD720941	US $6.02
27791SE	27791SE MD720942 SPACER, M/T DIFF 0.98	MD720942	from US $5.11
27791SE	27791SE MD720943 SPACER, M/T DIFF 1.01	MD720943	US $6.02
27791SE	27791SE MD720944 SPACER, M/T DIFF 1.04	MD720944	US $6.02
27791SE	27791SE MD720945 SPACER, M/T DIFF 1.07	MD720945	US $6.02
27791SE	27791SE MD727660 SPACER, M/T DIFF 0.74	MD727660	US $5.18
27791SE	27791SE MD727661 SPACER, M/T DIFF 0.80	MD727661	US $5.18
27791SE	27791SE MD754475 SPACER, A/T POWER TRAIN 0.71	MD754475	US $5.18
27791SE	27791SE MD754476 SPACER, A/T POWER TRAIN 0.77	MD754476	from US $4.02
27794SC	27794SC MD731164 SNAP RING, A/T POWER TRAIN 1.6	MD731164	US $5.18
27794SD	27794SD MD721014 SNAP RING, A/T POWER TRAIN 1.88	MD721014	US $4.51
27794SD	27794SD MD721015 SNAP RING, A/T POWER TRAIN 1.94	MD721015	US $4.14
27794SD	27794SD MD721016 SNAP RING, A/T POWER TRAIN 2.00	MD721016	US $4.14
27794SD	27794SD MD721017 SNAP RING, A/T POWER TRAIN 2.06	MD721017	US $4.14
27794SD	27794SD MD722538 SNAP RING, A/T POWER TRAIN 1.82	MD722538	US $4.59
27794SD	27794SD MD722539 SNAP RING, A/T POWER TRAIN 2.12	MD722539	US $4.59
27794SD	27794SD MD733314 SNAP RING, A/T POWER TRAIN 1.76	MD733314	US $4.14
27794SD	27794SD MD733315 SNAP RING, A/T POWER TRAIN 2.18	MD733315	US $4.14
27795XC	27795XC MD726258 SEAL RING, A/T OIL PUMP 37	MD726258	US $12.73
27795XC	27795XC MD752527 SEAL RING, A/T OIL PUMP 41	MD752527	US $7.10
27796VB	27796VB MD735063 RACE, A/T POWER TRAIN T=0.8	MD735063	US $7.99
27798ZB	27798ZB MD040557 BOLT, CRANKSHAFT Flange,12x22.5	MD040557	US $4.24
27798ZD	27798ZD MD734354 BOLT, A/T POWER TRAIN Idler shaft,10x90	MD734354	US $8.14
27799TB	27799TB MD735062 THRUST BEARING, A/T POWER TRAIN Thrust,45.5	MD735062	US $11.25
27799TC	27799TC MD731170 THRUST BEARING, A/T POWER TRAIN Thrust,46.362	MD731170	US $11.25
27799TD	27799TD MD719846 THRUST BEARING, A/T POWER TRAIN	MD719846	—

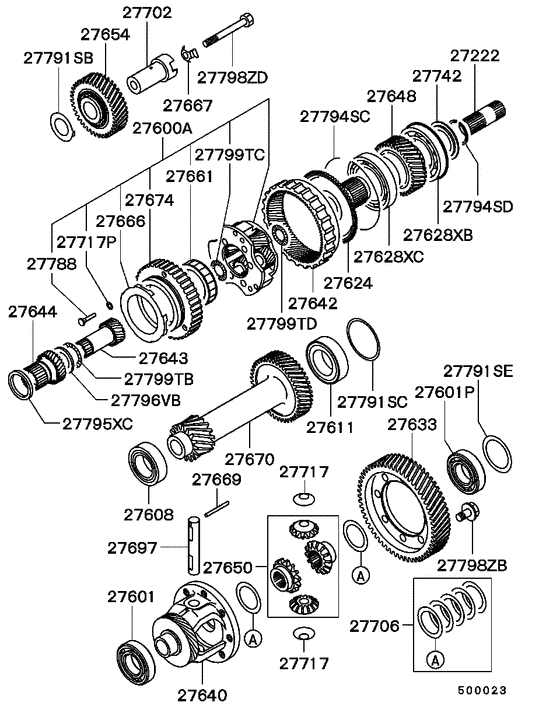

A/t gear & governor (WITH TURBO) Diagram Mitsubishi ECLIPSE MMNA/MMNA 1870438-164143

A/t gear & governor (WITH TURBO) Diagram Mitsubishi ECLIPSE MMNA/MMNA 1870438-164143
