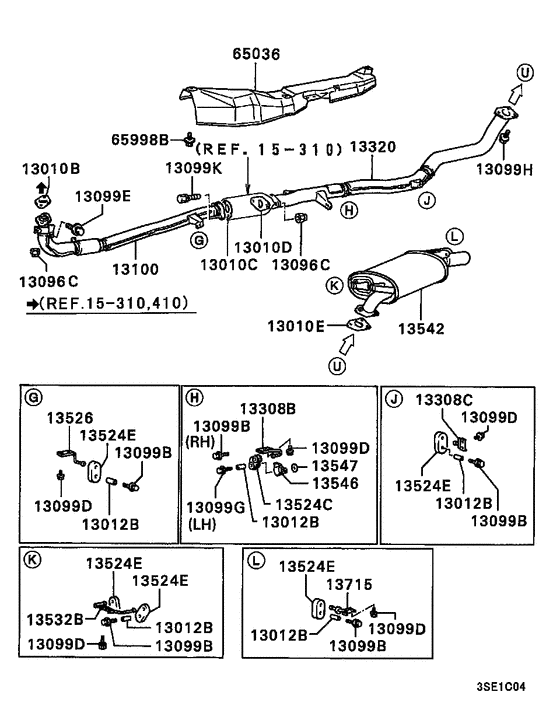

Exhaust pipe & muffler (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1994
- Sales region
- MMNA/MMNA
- Note
- SPECIAL LINE(TURBO/4WD),5FM/T CAL
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- SPECIAL LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB548649 GASKET, EXHAUST PIPE |
MB548649 |
US $5.33 |
||
|
13010B
|
13010B
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010C
|
13010C
MB548649 GASKET, EXHAUST PIPE |
MB548649 |
US $5.33 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB514708 GASKET, EXHAUST PIPE |
MB514708 |
US $5.92 |
||
|
13010D
|
13010D
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010E
|
13010E
MB548652 GASKET, EXHAUST PIPE |
MB548652 |
US $6.81 |
||
|
13010E
|
13010E
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13099B
|
13099B
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099B
|
13099B
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099D
|
13099D
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099E
|
13099E
MF244884 BOLT, ENG RR MOUNTINGWasher assembled,10x35 |
MF244884 |
from US $1.37 |
||
|
13099G
|
13099G
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099H
|
13099H
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099H
|
13099H
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099K
|
13099K
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13100
|
13100
MB577381
PIPE,EXHAUST,FR
|
MB577381 |
— | ||
|
13308B
|
13308B
MB549049 HANGER, EXHAUST CTR PIPE |
MB549049 |
US $30.34 |
||
|
13308C
|
13308C
MB549194 HANGER, EXHAUST CTR PIPE |
MB549194 |
US $30.34 |
||
|
13320
|
13320
MB611587
PIPE,EXHAUST,CTR
|
MB611587 |
— | ||
|
13524C
|
13524C
MB376954 HANGER, EXHAUST MUFFLER |
MB376954 |
from US $10.43 |
||
|
13524E
|
13524E
MB059936
HANGER, EXHAUST MUFFLER
|
MB059936 |
— | ||
| replacement | |||||
|
13524E
|
13524E
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13526
|
13526
MB548655 HANGER, EXHAUST MUFFLER, FR |
MB548655 |
US $28.86 |
||
|
13532B
|
13532B
MB549025 HANGER, EXHAUST MUFFLER, RR |
MB549025 |
US $45.14 |
||
|
13542
|
13542
MB549103 MUFFLER, EXHAUST MAIN |
MB549103 |
US $630.45 |
||
|
13546
|
13546
MB549135 PROTECTOR, EXHAUST MUFFLER HANGER |
MB549135 |
US $5.62 |
||
|
13547
|
13547
MB179930 SEAT, EXHAUST MUFFLER HANGER |
MB179930 |
US $5.33 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13715
|
13715
MB549024 HANGER, EXHAUST TAIL PIPE |
MB549024 |
US $22.20 |
||
|
65036
|
65036
MB528612 PROTECTOR, CATALYTIC CONVERTER |
MB528612 |
US $92.50 |
||
|
65998B
|
65998B
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
US $2.46 |
||
|
