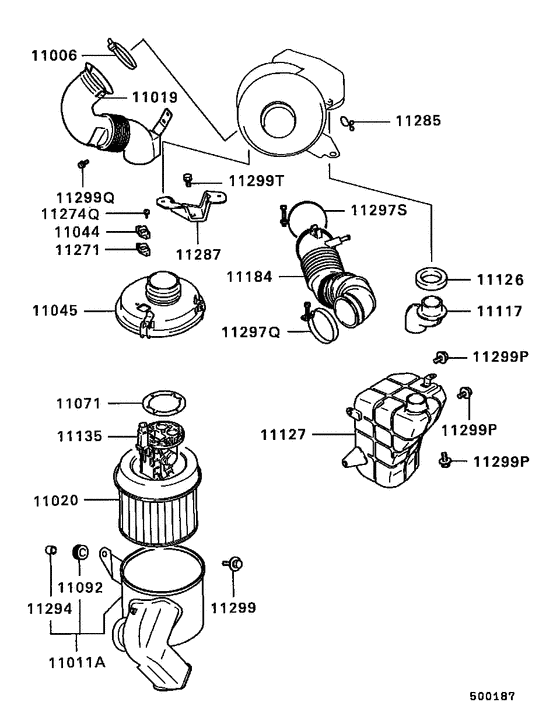

Air cleaner Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11006
|
11006
MB084139 BAND, FUEL TANKL=270 |
MB084139 |
US $4 |
||
|
11011A
|
11011A
MD620714
BODY ASSY,AIR CLEANER
|
MD620714 |
— | ||
|
11019
|
11019
MD171414
PIPE,AIR CLEANER BRANCH
|
MD171414 |
— | ||
|
11020
|
11020
MD603932
ELEMENT, AIR CLEANER
|
MD603932 |
— | ||
| replacement | |||||
|
11020
|
11020
MR571477 ELEMENT, AIR CLEANER |
MR571477 |
US $73.19 |
||
|
11044
|
11044
MD620235 COVER, AIR CLEANER FLOW SENSOR CONNECTOR |
MD620235 |
US $7.40 |
||
|
11045
|
11045
MD620713
COVER,AIR CLEANER
|
MD620713 |
— | ||
|
11071
|
11071
MD620238 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD620238 |
US $21.20 |
||
|
11092
|
11092
MD040886 INSULATOR, AIR CLEANER SUPPORT |
MD040886 |
US $3.83 |
||
|
11117
|
11117
MD134627 PIPE, AIR CLEANER RESONATOR |
MD134627 |
US $22.94 |
||
|
11126
|
11126
MD136929 GASKET, AIR CLEANER RESONATOR PIPE |
MD136929 |
US $7.10 |
||
|
11127
|
11127
MD126450 RESONATOR, AIR CLEANER |
MD126450 |
US $72.52 |
||
|
11135
|
11135
MD141564
SENSOR, AIR CLEANER AIR FLOW
|
MD141564 |
— | ||
|
11135
|
11135
MD172999
SENSOR,AIR CLEANER AIR FLOW
|
MD172999 |
— | ||
|
11184
|
11184
MD162484
DUCT,AIR CLEANER TO CARB
|
MD162484 |
— | ||
|
11271
|
11271
MD620236 GROMMET, AIR CLEANER |
MD620236 |
US $6.22 |
||
|
11274Q
|
11274Q
MF351284
SCREW, AIR CLEANER INR
|
MF351284 |
— | ||
|
11285
|
11285
MS470359 CLIP, ENG OIL FILLER16 |
MS470359 |
US $2.19 |
||
|
11287
|
11287
MB034170 BRACKET, AIR CLEANER |
MB034170 |
US $216.08 |
||
|
11287
|
11287
MD162417 BRACKET, AIR CLEANER |
MD162417 |
US $19.24 |
||
|
11294
|
11294
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297Q
|
11297Q
MD122529 CLAMP, AIR CLEANER INR83 |
MD122529 |
from US $6.43 |
||
|
11297S
|
11297S
MD122530
CLAMP, AIR CLEANER
|
MD122530 |
— | ||
|
11299
|
11299
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $3.97 |
||
|
11299
|
11299
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
11299P
|
11299P
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
11299Q
|
11299Q
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
11299T
|
11299T
MS240568 BOLT, BRAKE FLUID LINEWasher assembled,8x20 |
MS240568 |
US $2.46 |
||
