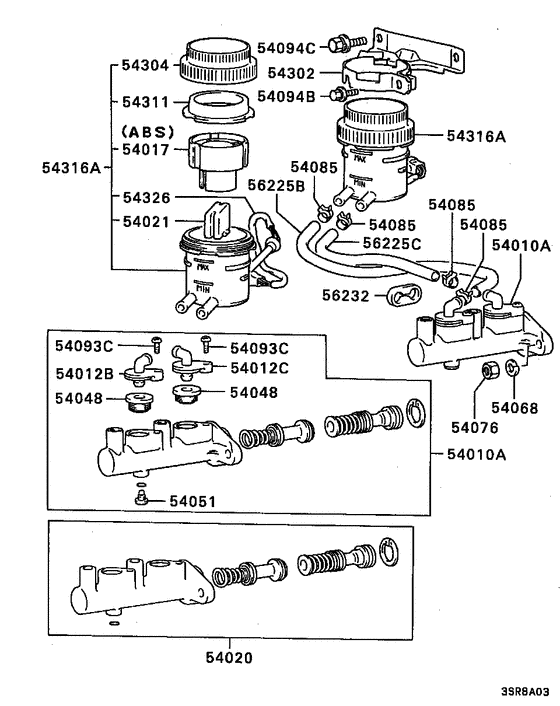

Brake master cylinder Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54010A
|
54010A
MB699439 CYLINDER ASSY, BRAKE MASTER |
MB699439 |
US $525.62 |
||
|
54010A
|
54010A
MB950148 CYLINDER ASSY, BRAKE MASTER |
MB950148 |
US $506.69 |
||
|
54012B
|
54012B
MB534288 COLLAR, BRAKE M/CYL |
MB534288 |
US $22.94 |
||
|
54012C
|
54012C
MB534349 COLLAR, BRAKE M/CYL |
MB534349 |
US $18.50 |
||
|
54017
|
54017
MB407397 FILTER, BRAKE FLUID RESERVOIR |
MB407397 |
US $13.32 |
||
|
54020
|
54020
MB699481 CYLINDER KIT, BRAKE MASTER1; |
MB699481 |
US $185 |
||
|
54021
|
54021
MB151326
FLOAT, BRAKE FLUID RESERVOIR
|
MB151326 |
— | ||
|
54048
|
54048
MB238309 SEAL, BRAKE M/CYL TO FLUID RESERVOIR |
MB238309 |
from US $2.36 |
||
|
54051
|
54051
MB618496 STOPPER, BRAKE M/CYL SECONDARY PISTON |
MB618496 |
US $2.96 |
||
|
54068
|
54068
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
54076
|
54076
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
54085
|
54085
MB058362 CLIP, FUEL VAPOR CONTROL LINE13.2 |
MB058362 |
US $3.28 |
||
|
54093C
|
54093C
MB534289 BOLT, BRAKE M/CYL INRM6 |
MB534289 |
US $4.74 |
||
|
54094B
|
54094B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
54094C
|
54094C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
54302
|
54302
MB534537
BRACKET, BRAKE FLUID RESERVOIR
|
MB534537 |
— | ||
|
54304
|
54304
MB587550
CAP, BRAKE FLUID RESERVOIR
|
MB587550 |
— | ||
| replacement | |||||
|
54304
|
54304
MB895999 CAP, BRAKE FLUID RESERVOIR |
MB895999 |
from US $10.26 |
||
|
54304
|
54304
MB895812
CAP, BRAKE FLUID RESERVOIR
|
MB895812 |
— | ||
| replacement | |||||
|
54304
|
54304
MB895999 CAP, BRAKE FLUID RESERVOIR |
MB895999 |
from US $10.26 |
||
|
54311
|
54311
MB534262
DIAPHRAGM, BRAKE FLUID RESERVOIR
|
MB534262 |
— | ||
| replacement | |||||
|
54311
|
54311
MB895813 DIAPHRAGM, BRAKE FLUID RESERVOIR |
MB895813 |
from US $11.91 |
||
|
54311
|
54311
MB895813 DIAPHRAGM, BRAKE FLUID RESERVOIR |
MB895813 |
from US $11.91 |
||
|
54316A
|
54316A
MB534535
RESERVOIR ASSY, BRAKE FLUID
|
MB534535 |
— | ||
|
54326
|
54326
MB618382 SWITCH, BRAKE FLUID LEVEL INDICATOR |
MB618382 |
US $39.96 |
||
|
56225B
|
56225B
MB082024 HOSE, CLUTCH FLUID RESERVOIR9x1100 |
MB082024 |
from US $8 |
||
|
56225C
|
56225C
MB082024 HOSE, CLUTCH FLUID RESERVOIR9x1100 |
MB082024 |
from US $8 |
||
|
56232
|
56232
MB344110 PAD, BRAKE FLUID RESERVOIR HOSE |
MB344110 |
US $8.73 |
||
