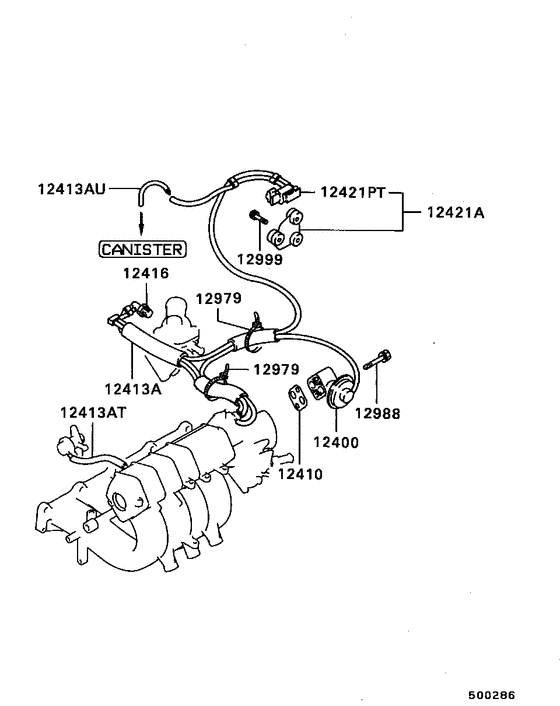

Emission control (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD112794
VALVE, EGR
|
MD112794 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD153146
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD153146 |
— | ||
|
12413AT
|
12413AT
MD133228 HOSE ASSY, EMISSION VACUUM CONTROL |
MD133228 |
US $11.10 |
||
|
12413AU
|
12413AU
MD145580 HOSE ASSY, EMISSION VACUUM CONTROL |
MD145580 |
US $6.51 |
||
|
12416
|
12416
MD103867
THERMO-VALVE, EMISSION CONTROL
|
MD103867 |
— | ||
|
12421A
|
12421A
MD113584 VALVE ASSY, EMISSION SOLENOID |
MD113584 |
US $75.48 |
||
|
12421PT
|
12421PT
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
