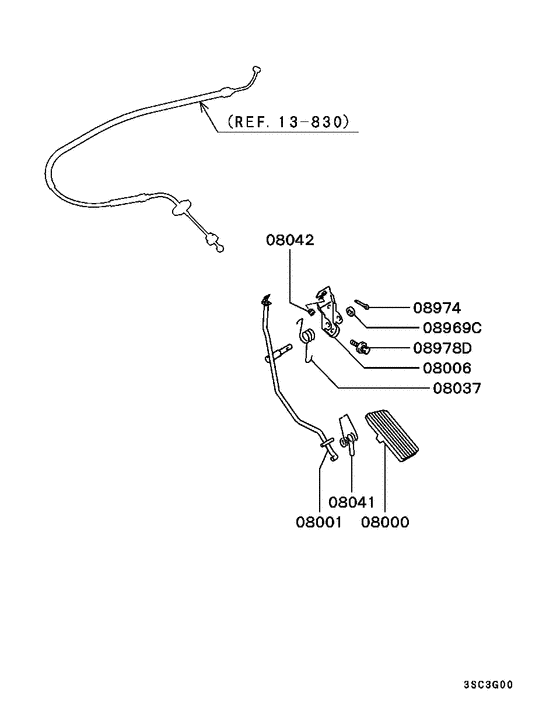

Engine control (PEDAL,ACCEL ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08000
|
08000
MB322294 PEDAL, ACCEL |
MB322294 |
US $12.18 |
||
|
08001
|
08001
MB539004 ARM, ACCEL PEDAL |
MB539004 |
US $102.12 |
||
|
08006
|
08006
MB322370 BRACKET, ACCEL PEDAL ARM |
MB322370 |
US $16.28 |
||
|
08037
|
08037
MA152074 SPRING, ACCEL PEDAL ARM RETURN |
MA152074 |
US $5.88 |
||
|
08041
|
08041
MB011388 SPRING, ACCEL PEDAL ARM RETURN |
MB011388 |
US $5.92 |
||
|
08042
|
08042
MA152079 STOPPER, ACCEL PEDAL ARM |
MA152079 |
US $3.56 |
||
|
08969C
|
08969C
MA152064 WASHER, WATER SEPARATOR INR |
MA152064 |
US $4.24 |
||
|
08974
|
08974
MF472067 PIN, WATER SEPARATOR INRSplit,3x20 |
MF472067 |
from US $0.45 |
||
|
08978D
|
08978D
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
13 830
|
Speed control
13 830
|
||||
|
13 830
|
Speed control
13 830
|
||||
