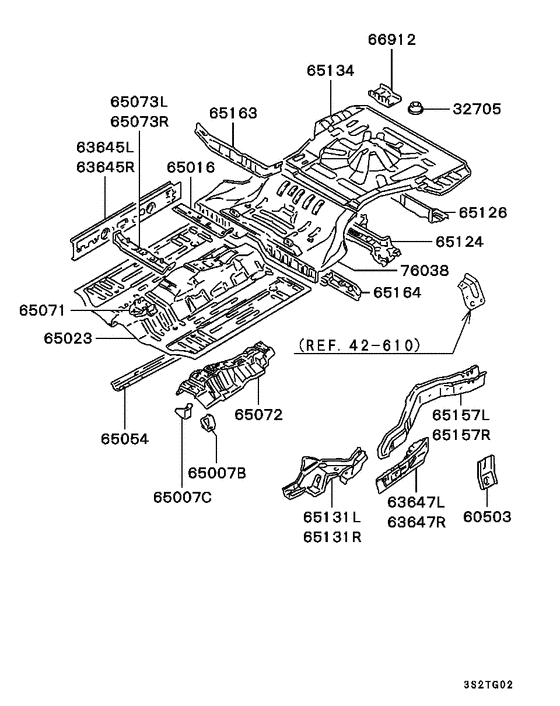

Floor (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32705
|
32705
MB312684 BRACKET, SPARE TIRE |
MB312684 |
US $11.99 |
||
|
60503
|
60503
MB637371 BRACKET, TRACTION HOOK |
MB637371 |
US $76.22 |
||
|
63645L
|
63645L
MB549719 SIDE SILL, FR FLOOR, INR LH |
MB549719 |
US $284.16 |
||
|
63645R
|
63645R
MB835078 SIDE SILL, FR FLOOR, INR RH |
MB835078 |
US $281.20 |
||
|
63647L
|
63647L
MB593355 SIDE SILL, RR FLOOR, LH |
MB593355 |
US $254.56 |
||
|
63647R
|
63647R
MB593356 SIDE SILL, RR FLOOR, RH |
MB593356 |
US $254.56 |
||
|
65007B
|
65007B
MB593369 BRACKET, FR FLOOR PROPELLER SHAFT |
MB593369 |
US $22.20 |
||
|
65007C
|
65007C
MB593370 BRACKET, FR FLOOR PROPELLER SHAFT |
MB593370 |
US $22.20 |
||
|
65016
|
65016
MB593367 CROSSMEMBER, FR FLOOR, RR |
MB593367 |
US $71.78 |
||
|
65023
|
65023
MB549730 FLOOR, FR |
MB549730 |
US $612.98 |
||
|
65054
|
65054
MB593368
SIDEMEMBER, FR FLOOR
|
MB593368 |
— | ||
|
65071
|
65071
MB637055 REINFORCEMENT, FR FLOOR BACKBONE, FR |
MB637055 |
US $103.60 |
||
|
65072
|
65072
MB593364 REINFORCEMENT, FR FLOOR BACKBONE, RR |
MB593364 |
US $560.56 |
||
|
65073L
|
65073L
MB593365 CROSSMEMBER, FR FLOOR, FR LH |
MB593365 |
US $150.96 |
||
|
65073R
|
65073R
MB593366 CROSSMEMBER, FR FLOOR, FR RH |
MB593366 |
US $150.96 |
||
|
65124
|
65124
MB593315 CROSSMEMBER, RR FLOOR |
MB593315 |
US $324.69 |
||
|
65126
|
65126
MB593316 CROSSMEMBER, RR FLOOR RR END |
MB593316 |
US $293.04 |
||
|
65131L
|
65131L
MB593371 EXTENSION, RR FLOOR SIDEMEMBER, LH |
MB593371 |
US $168.72 |
||
|
65131R
|
65131R
MB593372 EXTENSION, RR FLOOR SIDEMEMBER, RH |
MB593372 |
US $168.72 |
||
|
65134
|
65134
MB593314 FLOOR, RR |
MB593314 |
US $777.50 |
||
|
65157L
|
65157L
MB593317 SIDEMEMBER, RR FLOOR, LH |
MB593317 |
US $1,272.54 |
||
|
65157R
|
65157R
MB593318 SIDEMEMBER, RR FLOOR, RH |
MB593318 |
US $1,214.30 |
||
|
65163
|
65163
MB593352 CROSSMEMBER, RR FLOOR, UPR |
MB593352 |
US $74.74 |
||
|
65164
|
65164
MB593313 CROSSMEMBER, RR FLOOR RR SEAT UNDER |
MB593313 |
US $107.30 |
||
|
66912
|
66912
MB637372 REINFORCEMENT, TRAILER TRACTION BRACKET |
MB637372 |
US $27.38 |
||
|
76038
|
76038
MB549724 FLOOR, RR SEAT UNDER |
MB549724 |
US $428.06 |
||
|
42 610
|
Loose panel
42 610
|
||||
