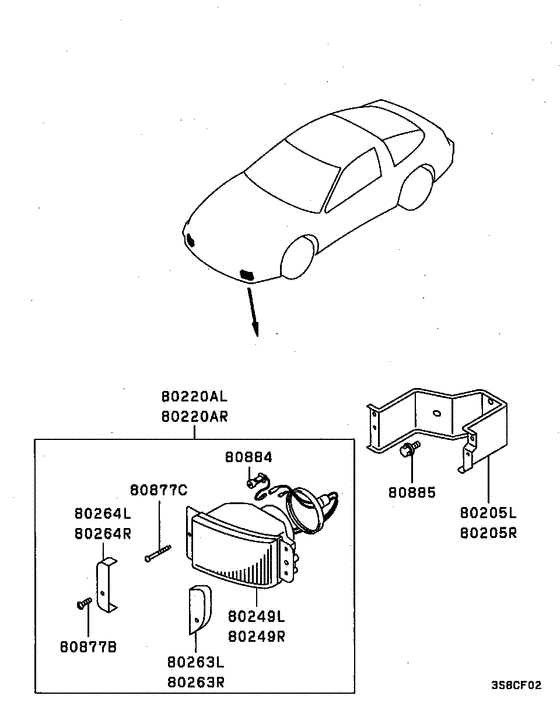

Front exterior lamp (FOG LAMP) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80205L
|
80205L
MB606257 BRACKET, FR TURN SIGNAL LAMP, LH |
MB606257 |
US $36.26 |
||
|
80205R
|
80205R
MB606258 BRACKET, FR TURN SIGNAL LAMP, RH |
MB606258 |
US $36.26 |
||
|
80220AL
|
80220AL
MB623973
LAMP ASSY,FOG,FR LH
|
MB623973 |
— | ||
|
80220AR
|
80220AR
MB623974
LAMP ASSY,FOG,FR RH
|
MB623974 |
— | ||
|
80249L
|
80249L
MB881767
LAMP UNIT,FOG,FR LH
|
MB881767 |
— | ||
|
80249R
|
80249R
MB881768
LAMP UNIT,FOG,FR RH
|
MB881768 |
— | ||
|
80263L
|
80263L
MB881771
COVER,FR FOG LAMP SIDE,LH
|
MB881771 |
— | ||
|
80263R
|
80263R
MB881772
COVER,FR FOG LAMP SIDE,RH
|
MB881772 |
— | ||
|
80264L
|
80264L
MB881769
COVER,FR FOG LAMP,LH
|
MB881769 |
— | ||
|
80264R
|
80264R
MB881770
COVER,FR FOG LAMP,RH
|
MB881770 |
— | ||
|
80877B
|
80877B
MB881812
SCREW,FOG LAMP
|
MB881812 |
— | ||
|
80877C
|
80877C
MB881845
SCREW,FOG LAMP
|
MB881845 |
— | ||
|
80884
|
80884
MS820961 BULB, HEADLAMP12v-55w,h1 |
MS820961 |
from US $34.88 |
||
|
80885
|
80885
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
