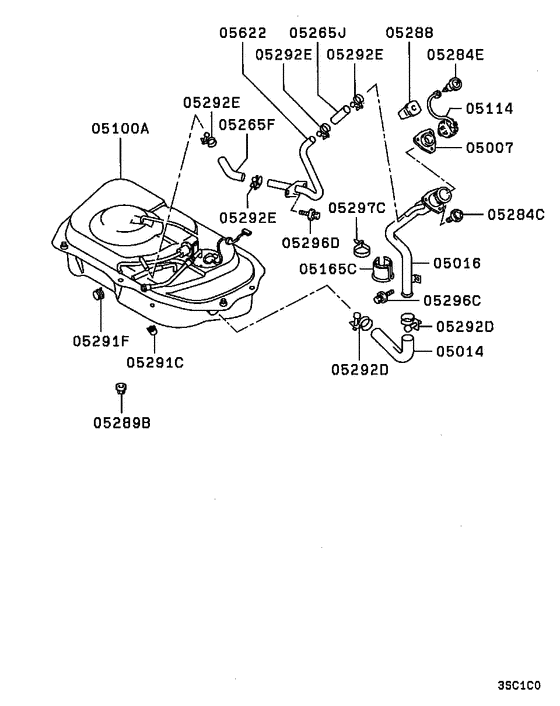

Fuel tank (FUEL TANK & FILLER NECK ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MB554397
HOSE, FUEL FILLER
|
MB554397 |
— | ||
|
05016
|
05016
MB554395
NECK,FUEL FILLER
|
MB554395 |
— | ||
|
05100A
|
05100A
MB554385 FUEL TANK ASSY |
MB554385 |
US $1,900.80 |
||
|
05114
|
05114
MB621780
CAP,FUEL TANK
|
MB621780 |
— | ||
|
05165C
|
05165C
MB621628 PROTECTOR, FUEL TANK |
MB621628 |
US $39.96 |
||
|
05265F
|
05265F
MB554399
HOSE, FUEL TANK
|
MB554399 |
— | ||
|
05265J
|
05265J
MB554398 HOSE, FUEL TANK14x120 |
MB554398 |
US $7.10 |
||
|
05284C
|
05284C
MU240097 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MU240097 |
US $3.01 |
||
|
05284E
|
05284E
MU461020
SCREW,FUEL TANK
|
MU461020 |
— | ||
|
05288
|
05288
MU480032 GROMMET, SIDE AIR DAM5 |
MU480032 |
from US $0.96 |
||
|
05289B
|
05289B
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291F
|
05291F
MS660175 CLIP, ROCKER COVERD=12.5 |
MS660175 |
from US $1.52 |
||
|
05292D
|
05292D
MS660031 CLAMP, FUEL TANK52 |
MS660031 |
from US $2.81 |
||
|
05292E
|
05292E
MF661011 CLAMP, FUEL TANKD=22 |
MF661011 |
US $2.33 |
||
|
05296C
|
05296C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
05296D
|
05296D
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05297C
|
05297C
MB249340 BAND, FUEL TANK PROTECTORL=219.5 |
MB249340 |
US $2.74 |
||
|
05622
|
05622
MB554379 PIPE, FUEL VAPOR |
MB554379 |
US $88.80 |
