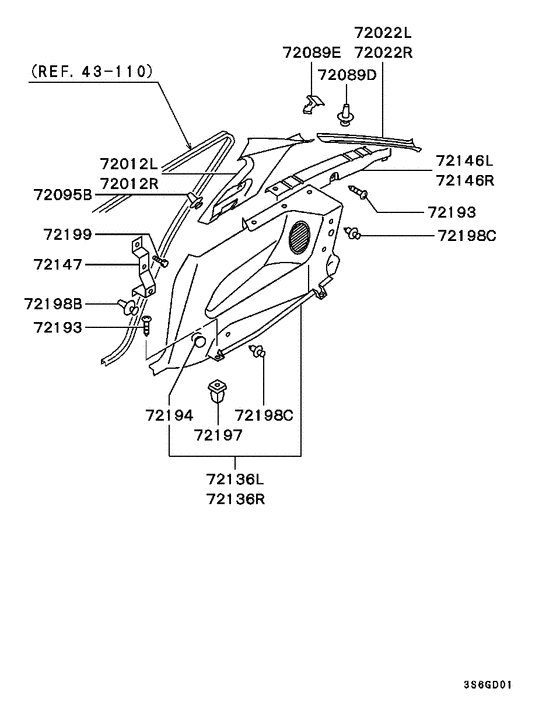

Interior trim (REAR) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72012L
|
72012L
MB722503
TRIM,CTR PILLAR,LH
|
MB722503 |
— | ||
|
72012L
|
72012L
MB791417
TRIM,CTR PILLAR,LH
|
MB791417 |
— | ||
|
72012R
|
72012R
MB722505
TRIM,CTR PILLAR,RH
|
MB722505 |
— | ||
|
72012R
|
72012R
MB791418
TRIM,CTR PILLAR,RH
|
MB791418 |
— | ||
|
72022L
|
72022L
MB722385 TRIM, RR PILLAR, LH |
MB722385 |
US $27.38 |
||
|
72022L
|
72022L
MB791309 TRIM, RR PILLAR, LH |
MB791309 |
US $28.86 |
||
|
72022R
|
72022R
MB722387 TRIM, RR PILLAR, RH |
MB722387 |
US $27.38 |
||
|
72022R
|
72022R
MB791310 TRIM, RR PILLAR, RH |
MB791310 |
US $28.86 |
||
|
72089D
|
72089D
MB566720 CLIP, RR VIEW MIRROR9x14.6 |
MB566720 |
from US $2.38 |
||
|
72089E
|
72089E
MB479110 CLIP, RR PILLAR TRIM |
MB479110 |
US $2.96 |
||
|
72095B
|
72095B
MB317677 CLIP, SIDE AIR DAM |
MB317677 |
from US $1.46 |
||
|
72136L
|
72136L
MB722409
TRIM,QTR,LH
|
MB722409 |
— | ||
|
72136L
|
72136L
MB791329
TRIM,QTR,LH
|
MB791329 |
— | ||
|
72136R
|
72136R
MB722411 TRIM,QTR,RH |
MB722411 |
US $368.37 |
||
|
72136R
|
72136R
MB791330
TRIM,QTR,RH
|
MB791330 |
— | ||
|
72146L
|
72146L
MB479081 BRACKET, QTR TRIM, UPR LH |
MB479081 |
US $39.96 |
||
|
72146R
|
72146R
MB479082 BRACKET, QTR TRIM, UPR RH |
MB479082 |
US $39.96 |
||
|
72147
|
72147
MB479083 BRACKET, QTR TRIM, LWR |
MB479083 |
US $11.10 |
||
|
72193
|
72193
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
72194
|
72194
MB724474 PLUG, QTR TRIM |
MB724474 |
US $3.26 |
||
|
72194
|
72194
MB791420 PLUG, QTR TRIM |
MB791420 |
US $4.74 |
||
|
72197
|
72197
MS480012 GROMMET, FUEL TANK5 |
MS480012 |
from US $1.56 |
||
|
72198B
|
72198B
MB317677 CLIP, SIDE AIR DAM |
MB317677 |
from US $1.46 |
||
|
72198C
|
72198C
MB795534 CLIP, FLOOR TRIM |
MB795534 |
US $2.81 |
||
|
72198C
|
72198C
MB877737 CLIP, FLOOR TRIM |
MB877737 |
US $2.81 |
||
|
