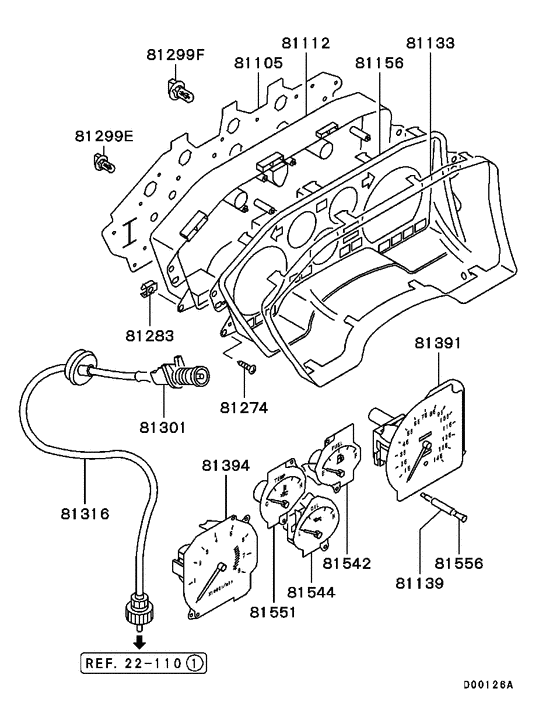

Meter,gauge & clock Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
MB832251
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB832251 |
— | ||
|
81112
|
81112
MB832246
CASE,COMBINATION METER
|
MB832246 |
— | ||
|
81133
|
81133
MB562670
GLASS, COMBINATION METER
|
MB562670 |
— | ||
|
81139
|
81139
MB562693 INSULATOR, COMBINATION METER |
MB562693 |
US $1.63 |
||
|
81156
|
81156
MB832236 PLATE, COMBINATION METER WINDOW |
MB832236 |
US $113.22 |
||
|
81274
|
81274
MF453094 SCREW, STEERING COLUMN COVERTapping,5x20 |
MF453094 |
from US $1.66 |
||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81299E
|
81299E
MB832266 BULB, INSTRUMENT PANEL METER14v-1.4w |
MB832266 |
US $4.59 |
||
|
81299F
|
81299F
MB832267 BULB, INSTRUMENT PANEL METER14v-3.78w |
MB832267 |
US $4.59 |
||
|
81301
|
81301
MB326171 ADAPTER, SPEEDOMETER CABLE |
MB326171 |
from US $1.42 |
||
|
81316
|
81316
MB521556 CABLE, SPEEDOMETER1120 |
MB521556 |
from US $47.35 |
||
|
81391
|
81391
MB803110
Speedometer
|
MB803110 |
— | ||
|
81394
|
81394
MB832259 TACHOMETER |
MB832259 |
US $589.68 |
||
|
81542
|
81542
MB832262
GAUGE,FUEL
|
MB832262 |
— | ||
|
81544
|
81544
MB832265
GAUGE,OIL PRESSURE
|
MB832265 |
— | ||
|
81551
|
81551
MB832263
GAUGE,WATER TEMPERATURE
|
MB832263 |
— | ||
|
81556
|
81556
MB562692 KNOB, TRIP METER |
MB562692 |
US $3.26 |
||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
