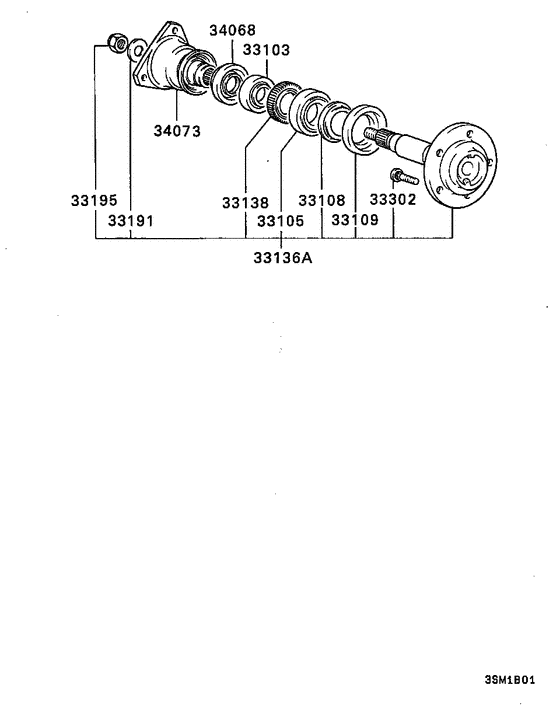

Rear axle housing & shaft Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
MB290175 BEARING, RR AXLE SHAFTBall,16x58 |
MB290175 |
US $27.36 |
||
|
33105
|
33105
MB393801
BEARING, RR AXLE SHAFT, OTR
|
MB393801 |
— | ||
| replacement | |||||
|
33105
|
33105
MB569972 BEARING, RR AXLE SHAFT, OTRBall,72x17-35 |
MB569972 |
US $61.56 |
||
|
33108
|
33108
MB290428 COVER, RR AXLE SHAFT |
MB290428 |
US $6.29 |
||
|
33109
|
33109
MB393803 COVER, RR AXLE SHAFT |
MB393803 |
US $9.30 |
||
|
33136A
|
33136A
MB664332
SHAFT ASSY, RR AXLE
|
MB664332 |
— | ||
|
33138
|
33138
MB668573 ROTOR, RR AXLE SHAFT |
MB668573 |
US $74.56 |
||
|
33191
|
33191
MT203641 WASHER, PROPELLER SHAFTPlain,18.5 |
MT203641 |
from US $4.76 |
||
|
33195
|
33195
MA143517 NUT, PROPELLER SHAFTLock,18 |
MA143517 |
from US $4.76 |
||
|
33302
|
33302
MA123234
BOLT, RR WHEEL HUB
|
MA123234 |
— | ||
| replacement | |||||
|
33302
|
33302
MB911495 BOLT, FR WHEEL HUB12x43 |
MB911495 |
from US $2.03 |
||
|
34068
|
34068
MB393807 DUST SEAL, RR AXLE SHAFT, INR |
MB393807 |
US $34.20 |
||
|
34073
|
34073
MB393808
FLANGE, RR AXLE SHAFT COMPANION
|
MB393808 |
— | ||
