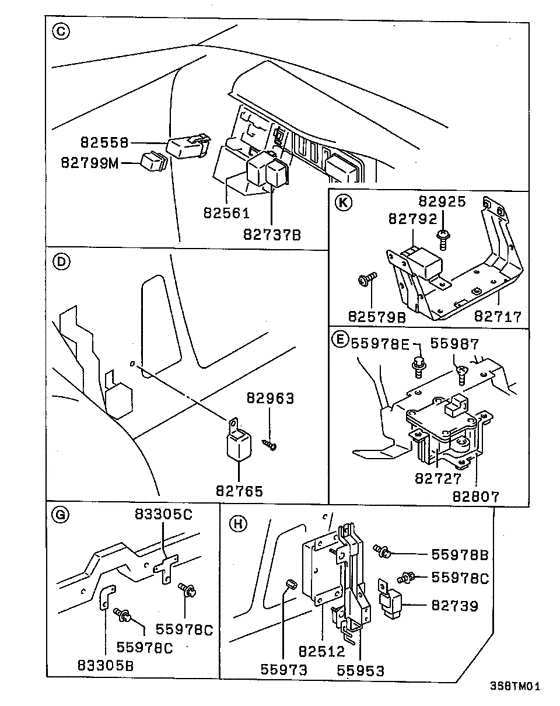

Relay,flasher & sensor (RELAY(AROUND COWL SIDE & DASH PANEL)) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55953
|
55953
MB686467 BRACKET, ABS CONTROL UNIT |
MB686467 |
US $30.34 |
||
|
55973
|
55973
MB823327 NUT, ABS CONTROL EQUIP20(6x11) |
MB823327 |
US $7.84 |
||
|
55978B
|
55978B
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
55978C
|
55978C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
55978E
|
55978E
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
55987
|
55987
MF201573 SCREW, ABS EQUIPMachine,6x18 |
MF201573 |
US $2.66 |
||
|
82512
|
82512
MB686563 CONTROL UNIT, ABS120 000 f0012 |
MB686563 |
US $1,756.80 |
||
|
82512
|
82512
MB903852 CONTROL UNIT, ABS120 000 f0111 |
MB903852 |
US $4,910.40 |
||
|
82558
|
82558
MB302373
FLASHER UNIT, HAZARD & TURN SIGNAL LAMP
|
MB302373 |
— | ||
|
82561
|
82561
MB543230 TIMER, SEAT BELT WARNINGG8d-36m |
MB543230 |
US $45.88 |
||
|
82579B
|
82579B
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
82717
|
82717
MB649241 BRACKET, ALARM LAMP RELAY |
MB649241 |
US $12.88 |
||
|
82727
|
82727
MB534699 G-SENSOR |
MB534699 |
US $308.67 |
||
|
82727
|
82727
MB903853 G-SENSOR |
MB903853 |
US $308.67 |
||
|
82737B
|
82737B
MB543647 CONTROL UNIT, DOORG8r-27m |
MB543647 |
US $69.56 |
||
|
82739
|
82739
MB627895 RELAYG8ms-1a24t-r-n20 |
MB627895 |
US $23.94 |
||
|
82765
|
82765
MB530319 RELAY, ROOM LAMPG8d-70m |
MB530319 |
US $85.10 |
||
|
82792
|
82792
MB627895 RELAYG8ms-1a24t-r-n20 |
MB627895 |
US $23.94 |
||
|
82799M
|
82799M
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
82807
|
82807
MB686469 BRACKET, G-SENSOR |
MB686469 |
US $148 |
||
|
82925
|
82925
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
82963
|
82963
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
83305B
|
83305B
MB543058 BRACKET, HARNESS CONNECTOR |
MB543058 |
US $5.33 |
||
|
83305C
|
83305C
MB852260 BRACKET, HARNESS CONNECTOR |
MB852260 |
US $5.77 |
