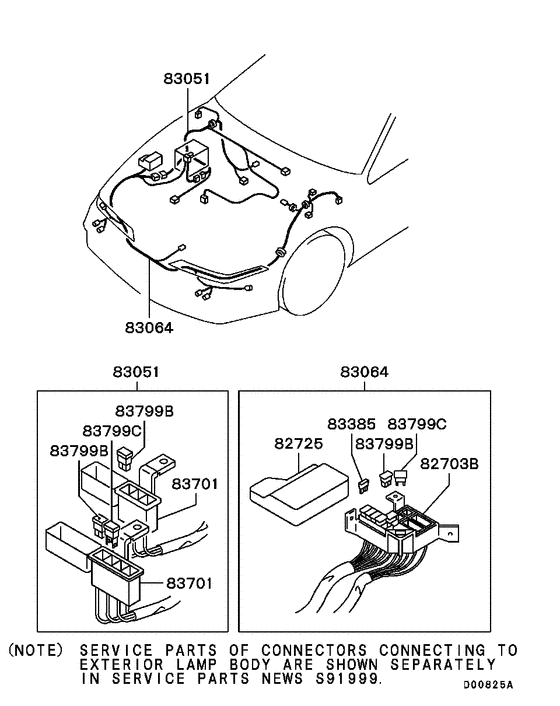

Wiring & attaching parts (WIRING HARNESS(AROUND ENGINE ROOM)) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703B
|
82703B
MB530257 BOX, RELAY |
MB530257 |
US $120.62 |
||
|
82725
|
82725
MB530258 COVER, RELAY BOX |
MB530258 |
US $36.26 |
||
|
82725
|
82725
MB622123
COVER,RELAY BOX
|
MB622123 |
— | ||
|
83051
|
83051
MB802083
HARNESS,CONTROL
|
MB802083 |
— | ||
|
83064
|
83064
MB823975
HARNESS,ENG ROOM
|
MB823975 |
— | ||
|
83064
|
83064
MB903631
HARNESS,ENG ROOM
|
MB903631 |
— | ||
|
83385
|
83385
MS810986 FUSE, A/C CONTROL EQUIPBlade type,10a |
MS810986 |
US $3.55 |
||
|
83701
|
83701
MB822541
BOX, FUSIBLE LINK
|
MB822541 |
— | ||
|
83799B
|
83799B
MU840014 FUSIBLE LINK20a,conn type |
MU840014 |
US $4.38 |
||
|
83799B
|
83799B
MU840015 FUSIBLE LINK30a,conn type |
MU840015 |
from US $9.03 |
||
|
83799B
|
83799B
MU840016 FUSIBLE LINK40a,conn type |
MU840016 |
from US $7.98 |
||
|
83799C
|
83799C
MU840019 FUSIBLE LINK30a,screw up type |
MU840019 |
US $12.88 |
||
|
83799C
|
83799C
MU840020 FUSIBLE LINK60a,screw up type |
MU840020 |
from US $8.50 |
||
|
83799C
|
83799C
MU840021 FUSIBLE LINK80a,screw up type |
MU840021 |
from US $6.86 |
