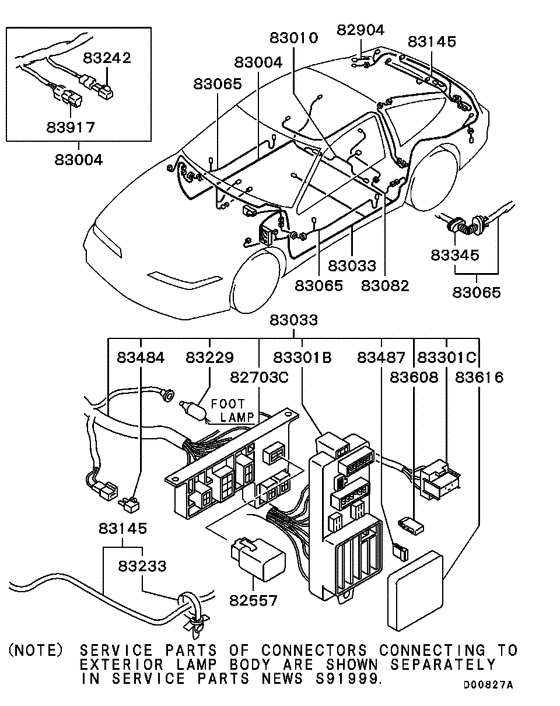

Wiring & attaching parts (WIRING HARNESS(AROUND FLOOR)) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82557
|
82557
MB572253 TIMER UNIT, DEFOGGERG8d-71m |
MB572253 |
US $94.39 |
||
|
82557
|
82557
MB697254 TIMER UNIT, DEFOGGER |
MB697254 |
US $162.80 |
||
|
82703C
|
82703C
MB542472 BOX, RELAY |
MB542472 |
US $30.34 |
||
|
82904
|
82904
MB530374 CABLE, DEFOGGER(-) |
MB530374 |
US $4.29 |
||
|
83004
|
83004
MB649248
HARNESS,ABS
|
MB649248 |
— | ||
|
83010
|
83010
MB852324 HARNESS, ABS SENSOR |
MB852324 |
US $158.36 |
||
|
83033
|
83033
MB802095
HARNESS,BODY MAIN
|
MB802095 |
— | ||
|
83033
|
83033
MB903575
HARNESS,BODY MAIN
|
MB903575 |
— | ||
|
83065
|
83065
MB628470
HARNESS,FR DOOR
|
MB628470 |
— | ||
|
83065
|
83065
MB628471
HARNESS,FR DOOR
|
MB628471 |
— | ||
|
83145
|
83145
MB530370 HARNESS, TAILGATE |
MB530370 |
US $99.90 |
||
|
83229
|
83229
MB562350
BULB, BODY WIRING
|
MB562350 |
— | ||
|
83233
|
83233
MU481133 BAND, WIRING100.5 |
MU481133 |
US $2.96 |
||
|
83242
|
83242
MU804011
DIODE, INSTRUMENT PANEL WIRING
|
MU804011 |
— | ||
| replacement | |||||
|
83242
|
83242
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $6.28 |
||
|
83301B
|
83301B
MB542498 BLOCK, CHASSIS HARNESS JUNCTION |
MB542498 |
US $205.72 |
||
|
83301B
|
83301B
MB839031 BLOCK, CHASSIS HARNESS JUNCTION |
MB839031 |
US $199.80 |
||
|
83301C
|
83301C
MB529461 BLOCK, CHASSIS HARNESS JUNCTION |
MB529461 |
US $6.51 |
||
|
83345
|
83345
MB542427 GROMMET, DOOR WIRINGPlastic,rubber,30x58-30x58 |
MB542427 |
US $45.14 |
||
|
83484
|
83484
MU804013 DIODE, CHASSIS WIRING1.5a,3p |
MU804013 |
US $27.38 |
||
|
83487
|
83487
MS810986 FUSE, A/C CONTROL EQUIPBlade type,10a |
MS810986 |
US $3.55 |
||
|
83487
|
83487
MS810987 FUSE, CHASSIS WIRINGBlade type,15a |
MS810987 |
US $3.55 |
||
|
83487
|
83487
MS810990 FUSE, BODY WIRINGBlade type,30a |
MS810990 |
US $2.81 |
||
|
83608
|
83608
MB529459 PULLER, FUSE |
MB529459 |
US $9.62 |
||
|
83616
|
83616
MB542462 COVER, FUSE BOX |
MB542462 |
US $26.64 |
||
|
83917
|
83917
MB606742 RESISTOR, ABS WIRING |
MB606742 |
US $17.76 |
||
