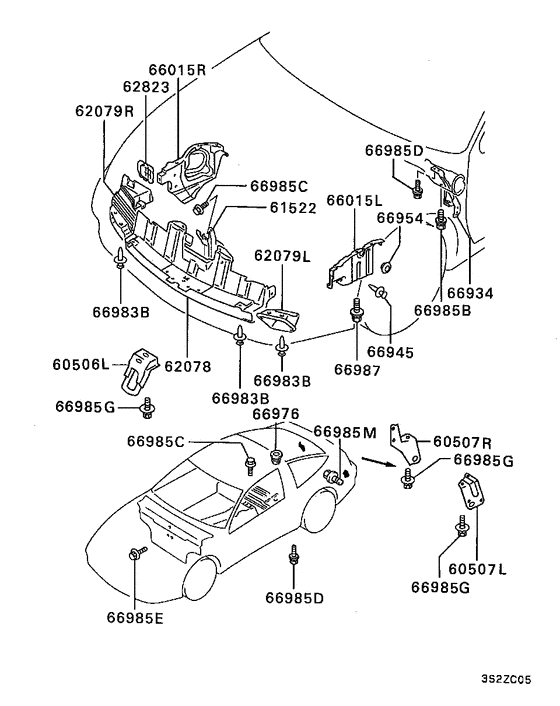

Loose panel (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1993
- Sales region
- MMNA
- Note
- GSR-4(4WD),4FA/T
- drive
- 4WD/4WD
- transmission
- 4FA/T
- grade
- GSR-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60506L
|
60506L
MB631038 HOOK, TRACTION, FR LH |
MB631038 |
US $118.40 |
||
|
60507L
|
60507L
MB631212 HOOK, TRACTION, RR LH |
MB631212 |
US $103.60 |
||
|
60507R
|
60507R
MB631028 HOOK, TRACTION, RR RH |
MB631028 |
US $153.92 |
||
|
61522
|
61522
MB528600
SUPPORT, HOOD LATCH
|
MB528600 |
— | ||
|
62078
|
62078
MB528607 DUCT, FR BUMPER AIR GUIDE, CTR |
MB528607 |
US $59.94 |
||
|
62078
|
62078
MB631167
DUCT, FR BUMPER AIR GUIDE, CTR
|
MB631167 |
— | ||
|
62079L
|
62079L
MB574155
DUCT, FR BUMPER INTER COOLER
|
MB574155 |
— | ||
|
62079R
|
62079R
MB574154
DUCT, FR BUMPER INTER COOLER
|
MB574154 |
— | ||
|
62823
|
62823
MB574140 PLATE, WATERPROOF |
MB574140 |
US $38.48 |
||
|
66015L
|
66015L
MB528711
COVER, ENG ROOM UNDER, LH
|
MB528711 |
— | ||
|
66015R
|
66015R
MB631171 COVER, ENG ROOM UNDER, RH |
MB631171 |
US $67.34 |
||
|
66934
|
66934
MB590077 STAY, BODY LOOSE PANEL |
MB590077 |
US $37 |
||
|
66945
|
66945
MB406894 CLIP, FR BUMPER8 |
MB406894 |
US $2.74 |
||
|
66954
|
66954
MS660186
PLUG, ENG CONTROL EQUIP
|
MS660186 |
— | ||
| replacement | |||||
|
66954
|
66954
MU670026 PLUG, BODY35 |
MU670026 |
from US $3.26 |
||
|
66976
|
66976
MS660185 PLUG, M/T CLUTCH CONTROL EQUIPRubber,30 |
MS660185 |
US $3.11 |
||
|
66983B
|
66983B
MB406894 CLIP, FR BUMPER8 |
MB406894 |
US $2.74 |
||
|
66985B
|
66985B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
66985C
|
66985C
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
66985D
|
66985D
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
66985E
|
66985E
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
66985E
|
66985E
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
66985G
|
66985G
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
66985M
|
66985M
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
66987
|
66987
MS240158 BOLT, FUEL TANKWasher assembled,8x20 |
MS240158 |
US $3.69 |
||
