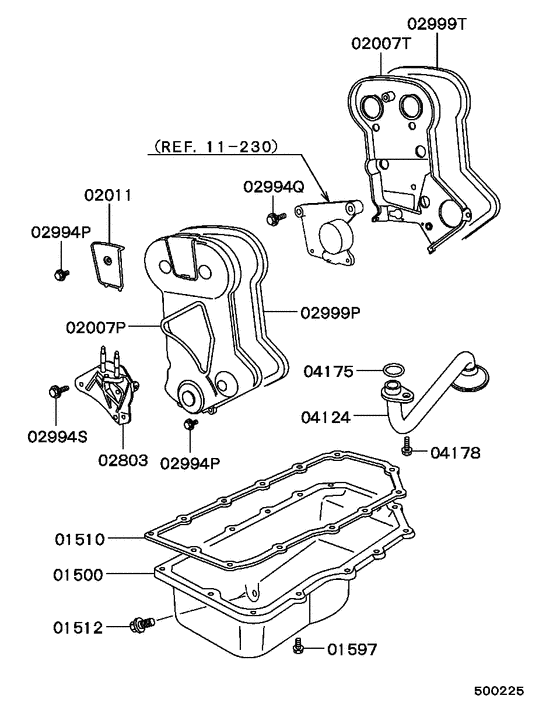

Cover,rear plate & oil pan (ALL (TIMING BELT COVER & OIL PAN)) Diagram Mitsubishi ECLIPSE
- Year
- 1994 - 1999
- Sales region
- MMNA/MMNA
- Note
- RS,5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01500
|
01500
M04667547
OIL PAN,ENG
|
M04667547 |
— | ||
|
01500
|
01500
M04777335
OIL PAN,ENG
|
M04777335 |
— | ||
|
01510
|
01510
M04556666
GASKET,ENG OIL PAN
|
M04556666 |
— | ||
|
01512
|
01512
M06035417
PLUG,ENG OIL PAN...
|
M06035417 |
— | ||
|
01512
|
01512
M06503433
PLUG,ENG OIL PAN...
|
M06503433 |
— | ||
|
01512
|
01512
M06504424
PLUG,ENG OIL PAN...
|
M06504424 |
— | ||
|
01597
|
01597
M06503570
BOLT,ENG OIL PAN
|
M06503570 |
— | ||
|
01597
|
01597
M06503969
BOLT,ENG OIL PAN
|
M06503969 |
— | ||
|
02007P
|
02007P
M04667435
COVER,TIMING BELT
|
M04667435 |
— | ||
|
02007T
|
02007T
04667436AB
COVER,TIMING BELT
|
04667436AB |
— | ||
| replacement | |||||
|
02007T
|
02007T
04777523AB
New Genuine Part
|
04777523AB |
— | ||
|
02007T
|
02007T
M04667436
COVER,TIMING BELT
|
M04667436 |
— | ||
| replacement | |||||
|
02007T
|
02007T
04777523AB
New Genuine Part
|
04777523AB |
— | ||
|
02007T
|
02007T
M04777522
COVER,TIMING BELT
|
M04777522 |
— | ||
|
02011
|
02011
M04667610
COVER,TIMING BELT ACCESS
|
M04667610 |
— | ||
|
02803
|
02803
M04668116
BRACKET,CYLINDER BLOCK ENG FR MOUNTING
|
M04668116 |
— | ||
|
02994P
|
02994P
M06502926
BOLT,TIMING BELT COVER
|
M06502926 |
— | ||
|
02994Q
|
02994Q
M06101722
BOLT,TIMING BELT COVER
|
M06101722 |
— | ||
|
02994Q
|
02994Q
M06101746
BOLT,TIMING BELT COVER
|
M06101746 |
— | ||
|
02994Q
|
02994Q
M06500584
BOLT,TIMING BELT COVER
|
M06500584 |
— | ||
|
02994S
|
02994S
M06503703
BOLT,TIMING BELT COVER
|
M06503703 |
— | ||
|
02999P
|
02999P
M04667438
GASKET,TIMING BELT COVER
|
M04667438 |
— | ||
|
02999T
|
02999T
M04667340
GASKET,TIMING BELT COVER
|
M04667340 |
— | ||
|
04124
|
04124
M04667295
O-RING,OIL STRAINER
|
M04667295 |
— | ||
|
04175
|
04175
M06032920
GASKET,OIL STRAINER
|
M06032920 |
— | ||
|
04178
|
04178
M06500070
BOLT,OIL STRAINER
|
M06500070 |
— | ||
