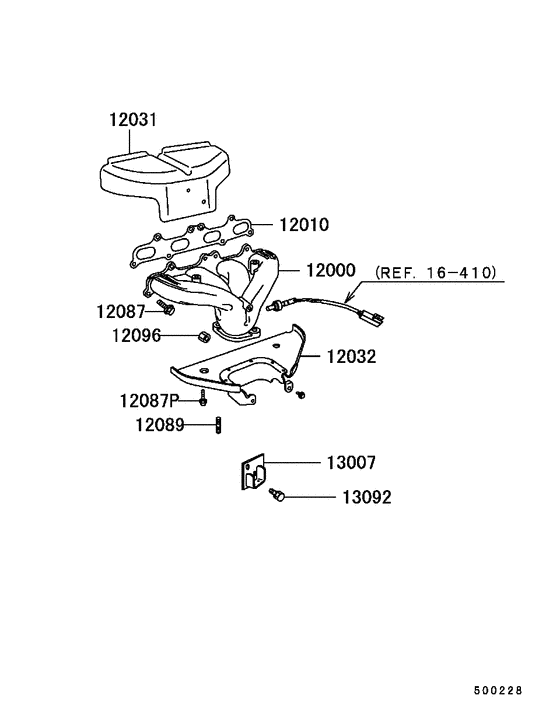

Exhaust manifold (ALL (MANIFOLD)) Diagram Mitsubishi ECLIPSE
- Year
- 1994 - 1999
- Sales region
- MMNA/MMNA
- Note
- RS,5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12000
|
12000
M04667150
MANIFOLD,EXHAUST
|
M04667150 |
— | ||
|
12000
|
12000
M04777054
MANIFOLD,EXHAUST
|
M04777054 |
— | ||
|
12010
|
12010
M04621833
GASKET,EXHAUST MANIFOLD
|
M04621833 |
— | ||
|
12010
|
12010
M04667722
GASKET,EXHAUST MANIFOLD
|
M04667722 |
— | ||
|
12031
|
12031
M04667664
SHIELD,EXHAUST MANIFOLD HEAT,UPR
|
M04667664 |
— | ||
|
12032
|
12032
M04667665
SHIELD,EXHAUST MANIFOLD HEAT,LWR
|
M04667665 |
— | ||
|
12087
|
12087
M06503334
SCREW,EXHAUST MANIFOLD
|
M06503334 |
— | ||
|
12087P
|
12087P
M06101813
SCREW,EXHAUST MANIFOLD
|
M06101813 |
— | ||
|
12089
|
12089
M06503118
STUD,CYLINDER HEAD
|
M06503118 |
— | ||
|
12096
|
12096
M06500363
NUT,INLET MANIFOLD
|
M06500363 |
— | ||
|
12096
|
12096
M06504152
NUT,INLET MANIFOLD
|
M06504152 |
— | ||
|
13007
|
13007
M04667441
BRACKET,EXHAUST PIPE SUPPORT
|
M04667441 |
— | ||
|
13092
|
13092
M06101663
SCREW,EXHAUST PIPE
|
M06101663 |
— | ||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
