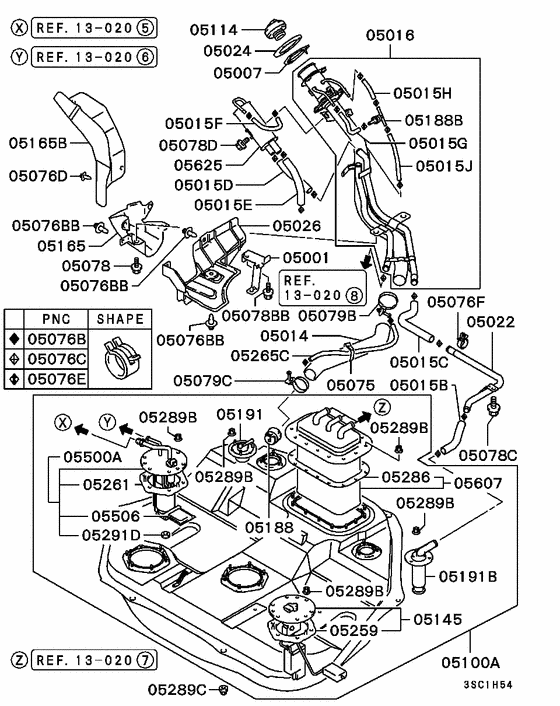

Fuel tank (98MODEL-) Diagram Mitsubishi ECLIPSE
- Year
- 1994 - 1999
- Sales region
- MMNA/MMNA
- Note
- RS,5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05001
|
05001
MR385603
BRACKET,FUEL FILLER NECK
|
MR385603 |
— | ||
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MR100452
HOSE, FUEL FILLER
|
MR100452 |
— | ||
|
05014
|
05014
MR134402
HOSE,FUEL FILLER
|
MR134402 |
— | ||
|
05014
|
05014
MR135666 HOSE,FUEL FILLER |
MR135666 |
US $58.46 |
||
|
05014
|
05014
MR432575
HOSE,FUEL FILLER
|
MR432575 |
— | ||
|
05015B
|
05015B
MR342240
HOSE,FUEL TANK
|
MR342240 |
— | ||
|
05015C
|
05015C
MR342238
HOSE,FUEL TANK
|
MR342238 |
— | ||
|
05015D
|
05015D
MR342371
HOSE,FUEL FILLER NECK BREATHER
|
MR342371 |
— | ||
|
05015E
|
05015E
MR342370
HOSE,FUEL FILLER NECK BREATHER
|
MR342370 |
— | ||
|
05015F
|
05015F
MR523871
HOSE,FUEL FILLER NECK BREATHER
|
MR523871 |
— | ||
|
05015G
|
05015G
MR342225
HOSE,FUEL FILLER NECK BREATHER
|
MR342225 |
— | ||
|
05015H
|
05015H
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05015J
|
05015J
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05016
|
05016
MB923792
NECK, FUEL FILLER
|
MB923792 |
— | ||
|
05016
|
05016
MR135118
NECK,FUEL FILLER
|
MR135118 |
— | ||
|
05016
|
05016
MR271612
NECK,FUEL FILLER
|
MR271612 |
— | ||
|
05022
|
05022
MR342188
PIPE,FUEL FILLER BREATHER
|
MR342188 |
— | ||
|
05024
|
05024
MB504932 PLATE, FUEL FILLER NECK REINF |
MB504932 |
US $8.62 |
||
|
05026
|
05026
MR385610
PROTECTOR,FUEL FILLER HOSE
|
MR385610 |
— | ||
|
05075
|
05075
MB249340 BAND, FUEL TANK PROTECTORL=219.5 |
MB249340 |
US $2.74 |
||
|
05076B
|
05076B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05076B
|
05076B
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05076BB
|
05076BB
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.68 |
||
|
05076C
|
05076C
MS660174 CLIP, ENG OIL LINED=19.8 |
MS660174 |
US $2.81 |
||
|
05076D
|
05076D
MB344728 CLIP, SPLASH SHIELD |
MB344728 |
from US $1.91 |
||
|
05076E
|
05076E
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05076F
|
05076F
MU481045 CLIP, LPG LEAD LINE16 |
MU481045 |
US $1.92 |
||
|
05078
|
05078
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
05078BB
|
05078BB
MS240038 BOLT, FUEL LINEWasher assembled,6x16 |
MS240038 |
US $2.46 |
||
|
05078C
|
05078C
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
05078D
|
05078D
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05079B
|
05079B
MF661123 CLAMP, AIR CLEANER48 |
MF661123 |
US $5.75 |
||
|
05079C
|
05079C
MF661022 CLAMP, FUEL TANKD=46 |
MF661022 |
US $2.60 |
||
|
05079C
|
05079C
MF661123 CLAMP, AIR CLEANER48 |
MF661123 |
US $5.75 |
||
|
05100A
|
05100A
MR134634
FUEL TANK ASSY
|
MR134634 |
— | ||
|
05100A
|
05100A
MR134739
FUEL TANK ASSY
|
MR134739 |
— | ||
|
05100A
|
05100A
MR134867
FUEL TANK ASSY
|
MR134867 |
— | ||
|
05100A
|
05100A
MR271772
FUEL TANK ASSY
|
MR271772 |
— | ||
|
05114
|
05114
MB504900
CAP, FUEL TANK
|
MB504900 |
— | ||
|
05114
|
05114
MR342184
CAP,FUEL TANK
|
MR342184 |
— | ||
|
05114
|
05114
MR462264
CAP,FUEL TANK
|
MR462264 |
— | ||
|
05145
|
05145
MR178743
GAUGE UNIT, FUEL TANK
|
MR178743 |
— | ||
|
05145
|
05145
MR241078 GAUGE UNIT, FUEL TANK |
MR241078 |
from US $158.69 |
||
|
05145
|
05145
MR392017
GAUGE UNIT,FUEL TANK
|
MR392017 |
— | ||
|
05165
|
05165
MR100456
PROTECTOR, FUEL TANK
|
MR100456 |
— | ||
|
05165
|
05165
MR342480
PROTECTOR, FUEL TANK
|
MR342480 |
— | ||
|
05165B
|
05165B
MR342338
PROTECTOR,FUEL TANK
|
MR342338 |
— | ||
|
05188
|
05188
MB867389 VALVE, FUEL FILLER NECK |
MB867389 |
US $9.99 |
||
|
05188
|
05188
MR271464 VALVE, FUEL FILLER NECK |
MR271464 |
US $5.75 |
||
|
05188B
|
05188B
MR342160 VALVE, FUEL FILLER NECK |
MR342160 |
US $24.42 |
||
|
05191
|
05191
MB595490
VALVE, FUEL TANK SAFETY
|
MB595490 |
— | ||
| replacement | |||||
|
05191
|
05191
MR526922 VALVE, FUEL TANK SAFETY |
MR526922 |
from US $51.05 |
||
|
05191B
|
05191B
MR135668
VALVE,FUEL TANK SAFETY
|
MR135668 |
— | ||
|
05259
|
05259
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05261
|
05261
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05265C
|
05265C
MB866268
HOSE, FUEL TANK
|
MB866268 |
— | ||
|
05265C
|
05265C
MU600908
HOSE,FUEL VAPOR CONTROL LINE
|
MU600908 |
— | ||
|
05265C
|
05265C
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05286
|
05286
MR100054 GASKET, FUEL TANK8 |
MR100054 |
from US $0.96 |
||
|
05286
|
05286
MR271621
GASKET,FUEL TANK
|
MR271621 |
— | ||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
05289C
|
05289C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
05291D
|
05291D
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05500A
|
05500A
MR134804
FUEL PUMP ASSY
|
MR134804 |
— | ||
|
05500A
|
05500A
MR134868
FUEL PUMP ASSY
|
MR134868 |
— | ||
|
05506
|
05506
MB890617 FILTER, FUEL PUMP |
MB890617 |
US $59.20 |
||
|
05607
|
05607
MR126605
CANISTER,FUEL VAPOR
|
MR126605 |
— | ||
|
05607
|
05607
MR258310
CANISTER,FUEL VAPOR
|
MR258310 |
— | ||
|
05607
|
05607
MR376995
CANISTER,FUEL VAPOR
|
MR376995 |
— | ||
|
05625
|
05625
MR271411
TANK,FUEL VAPOR SEPARATOR
|
MR271411 |
— | ||
|
