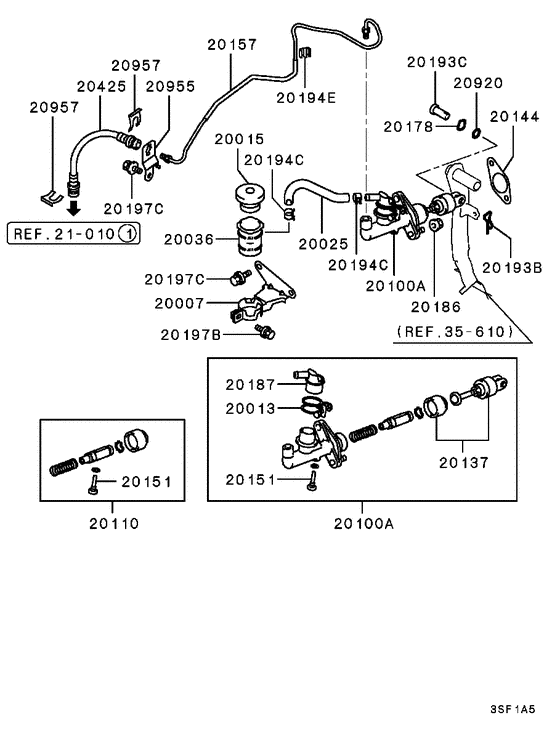

Clutch control (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1998 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS(SPECIAL),5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20007
|
20007
MB910567
BRACKET, CLUTCH FLUID RESERVOIR
|
MB910567 |
— | ||
|
20013
|
20013
MB193387
BAND, BRAKE M/CYL INR
|
MB193387 |
— | ||
|
20015
|
20015
MB555135 CAP, CLUTCH FLUID RESERVOIR |
MB555135 |
from US $8.17 |
||
|
20025
|
20025
MB858498
HOSE, BRAKE M/CYL FLUID RESERVOIR
|
MB858498 |
— | ||
| replacement | |||||
|
20025
|
20025
MB082024 HOSE, CLUTCH FLUID RESERVOIR9x1100 |
MB082024 |
from US $8 |
||
|
20036
|
20036
MB911648 RESERVOIR, CLUTCH FLUID |
MB911648 |
from US $7.99 |
||
|
20100A
|
20100A
MB911650
CYLINDER ASSY,CLUTCH MASTER
|
MB911650 |
— | ||
|
20110
|
20110
MB870511 CYLINDER KIT, CLUTCH MASTER |
MB870511 |
US $57.46 |
||
|
20137
|
20137
MR103805
PUSH ROD,CLUTCH M/CYL
|
MR103805 |
— | ||
|
20144
|
20144
MB555016 SEAL, CLUTCH M/CYL |
MB555016 |
US $3.56 |
||
|
20151
|
20151
MB870520 STOPPER, CLUTCH M/CYL SUPPLY VALVE |
MB870520 |
US $4.14 |
||
|
20157
|
20157
MB910565
TUBE,CLUTCH M/CYL
|
MB910565 |
— | ||
|
20178
|
20178
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20178
|
20178
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20187
|
20187
MB910572
COLLAR, CLUTCH M/CYL
|
MB910572 |
— | ||
|
20193B
|
20193B
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
from US $1.13 |
||
|
20193C
|
20193C
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
20194C
|
20194C
MB058362 CLIP, FUEL VAPOR CONTROL LINE13.2 |
MB058362 |
US $3.28 |
||
|
20194E
|
20194E
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
20197B
|
20197B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
20197C
|
20197C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
20425
|
20425
MR151546 HOSE, CLUTCH RELEASE CYLINDER270 |
MR151546 |
US $32.56 |
||
|
20920
|
20920
MF520006 O-RING, ENG OIL FILLER10.1 |
MF520006 |
from US $0.96 |
||
|
20955
|
20955
MB910560
BRACKET,CLUTCH FLUID LINE
|
MB910560 |
— | ||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
21 010
|
Clutch & clutch release
21 010
|
||||
|
21 010
|
Clutch & clutch release
21 010
|
||||
|
35 610
|
Brake & clutch pedal
35 610
|
||||
