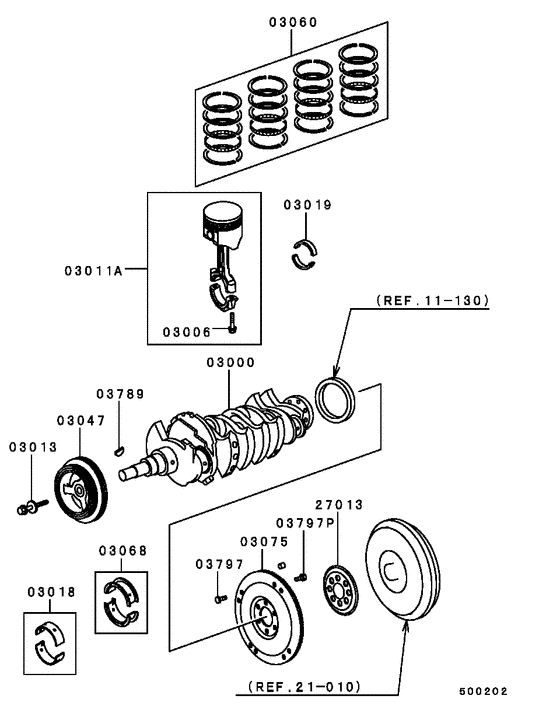

Piston & crankshaft (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1996 - 1998
- Sales region
- MMNA/MMNA
- Note
- LOW LINE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LOW LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
M04667754
CRANKSHAFT
|
M04667754 |
— | ||
|
03011A
|
03011A
M04741372
PISTON & CONNECTING ROD ASSY
|
M04741372 |
— | ||
|
03011A
|
03011A
M04797613
PISTON & CONNECTING ROD ASSY
|
M04797613 |
— | ||
|
03013
|
03013
M06503553
CENTER BOLT,CRANKSHAFT PULLEY
|
M06503553 |
— | ||
|
03018
|
03018
M04728993
Bearing,crankshaft
|
M04728993 |
— | ||
|
03018
|
03018
M04728994
Bearing,crankshaft
|
M04728994 |
— | ||
|
03018
|
03018
M04728999
Bearing,crankshaft
|
M04728999 |
— | ||
| replacement | |||||
|
03018
|
03018
04728999AB
BEARINGCRANKSHAFT
|
04728999AB |
— | ||
|
03018
|
03018
M04856733
Bearing,crankshaft
|
M04856733 |
— | ||
| replacement | |||||
|
03018
|
03018
04856733AB
New Genuine Part
|
04856733AB |
— | ||
|
03018
|
03018
M04856735
Bearing,crankshaft
|
M04856735 |
— | ||
|
03018
|
03018
M04856737
Bearing,crankshaft
|
M04856737 |
— | ||
|
03019
|
03019
M04728991
BEARING,CONNROD
|
M04728991 |
— | ||
|
03019
|
03019
M04728992
BEARING,CONNROD
|
M04728992 |
— | ||
|
03019
|
03019
M04728997
BEARING,CONNROD
|
M04728997 |
— | ||
| replacement | |||||
|
03019
|
03019
04728997AB
New Genuine Part
|
04728997AB |
— | ||
|
03047
|
03047
M04667772
PULLEY,CRANKSHAFT
|
M04667772 |
— | ||
|
03060
|
03060
M04741401
RING SET,PISTON
|
M04741401 |
— | ||
|
03068
|
03068
M04728995
BEARING,CRANKSHAFT,CTR
|
M04728995 |
— | ||
|
03068
|
03068
M04728996
BEARING,CRANKSHAFT,CTR
|
M04728996 |
— | ||
|
03068
|
03068
M04729000
BEARING,CRANKSHAFT,CTR
|
M04729000 |
— | ||
|
03068
|
03068
M04856734
BEARING,CRANKSHAFT,CTR
|
M04856734 |
— | ||
|
03068
|
03068
M04856736
BEARING,CRANKSHAFT,CTR
|
M04856736 |
— | ||
|
03068
|
03068
M04856738
BEARING,CRANKSHAFT,CTR
|
M04856738 |
— | ||
|
03075
|
03075
M04567143
PLATE,FLYWHEEL FLEXIBLE
|
M04567143 |
— | ||
|
03789
|
03789
M06034803
KEY,CRANKSHAFT
|
M06034803 |
— | ||
|
03789
|
03789
M06035473
KEY,CRANKSHAFT
|
M06035473 |
— | ||
|
03797
|
03797
M06501099
BOLT,FLYWHEEL
|
M06501099 |
— | ||
|
03797P
|
03797P
M06503465
BOLT,A/T DRIVE PLATE
|
M06503465 |
— | ||
|
27013
|
27013
M04471933
PLATE,A/T DRIVE PLATE ADAPTER
|
M04471933 |
— | ||
|
11 130
|
Cylinder block
11 130
|
||||
