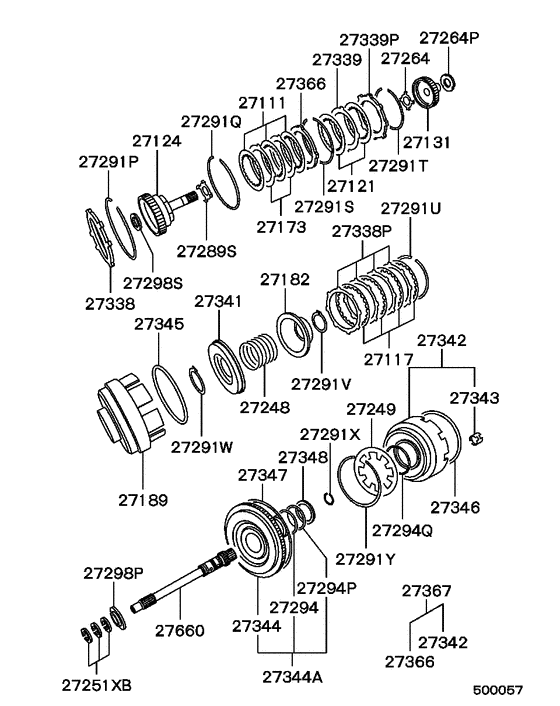

A/t clutch (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1998 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS(SPECIAL),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27111
|
27111
M04531678
DISC,A/T U/D CLUTCH
|
M04531678 |
— | ||
|
27121
|
27121
M04531678
DISC,A/T U/D CLUTCH
|
M04531678 |
— | ||
|
27124
|
27124
M04864936
HUB,A/T U/D CLUTCH
|
M04864936 |
— | ||
| replacement | |||||
|
27124
|
27124
04864936AC
HUB,A/T U/D CLUTCH
|
04864936AC |
— | ||
|
27131
|
27131
M04659994
HUB,A/T U/D CLUTCH
|
M04659994 |
— | ||
|
27173
|
27173
M04659053
PLATE,A/T U/D CLUTCH
|
M04659053 |
— | ||
|
27182
|
27182
M04431612
RETAINER,A/T U/D CLUTCH SPRING
|
M04431612 |
— | ||
|
27189
|
27189
M04659935
RETAINER,A/T INPUT CLUTCH
|
M04659935 |
— | ||
|
27248
|
27248
M04377177
SPRING,A/T U/D CLUTCH PISTON RETURN
|
M04377177 |
— | ||
|
27249
|
27249
M04412202
SPRING,A/T REV & O/D CLUTCH PISTON RETURN
|
M04412202 |
— | ||
|
27251XB
|
27251XB
M04446543
SEAL RING,A/T CLUTCH
|
M04446543 |
— | ||
|
27264
|
27264
M04431973
PLATE,A/T O/D CLUTCH THRUST
|
M04431973 |
— | ||
| replacement | |||||
|
27264
|
27264
05018923AA
PLATE,A/T O/D CLUTCH THRUST
|
05018923AA |
— | ||
|
27264P
|
27264P
M03836237
PLATE,A/T O/D CLUTCH THRUST
|
M03836237 |
— | ||
|
27264P
|
27264P
M03836238
PLATE,A/T O/D CLUTCH THRUST
|
M03836238 |
— | ||
|
27264P
|
27264P
M03836239
PLATE,A/T O/D CLUTCH THRUST
|
M03836239 |
— | ||
|
27264P
|
27264P
M03836240
PLATE,A/T O/D CLUTCH THRUST
|
M03836240 |
— | ||
|
27264P
|
27264P
M03836241
PLATE,A/T O/D CLUTCH THRUST
|
M03836241 |
— | ||
|
27264P
|
27264P
M04431662
PLATE,A/T O/D CLUTCH THRUST
|
M04431662 |
— | ||
|
27264P
|
27264P
M04431663
PLATE,A/T O/D CLUTCH THRUST
|
M04431663 |
— | ||
|
27264P
|
27264P
M04431664
PLATE,A/T O/D CLUTCH THRUST
|
M04431664 |
— | ||
|
27264P
|
27264P
M04431665
PLATE,A/T O/D CLUTCH THRUST
|
M04431665 |
— | ||
|
27264P
|
27264P
M04431666
PLATE,A/T O/D CLUTCH THRUST
|
M04431666 |
— | ||
|
27264P
|
27264P
M04431667
PLATE,A/T O/D CLUTCH THRUST
|
M04431667 |
— | ||
|
27264P
|
27264P
M04431668
PLATE,A/T O/D CLUTCH THRUST
|
M04431668 |
— | ||
|
27264P
|
27264P
M04431669
PLATE,A/T O/D CLUTCH THRUST
|
M04431669 |
— | ||
|
27264P
|
27264P
M04446601
PLATE,A/T O/D CLUTCH THRUST
|
M04446601 |
— | ||
|
27264P
|
27264P
M04446670
PLATE,A/T O/D CLUTCH THRUST
|
M04446670 |
— | ||
|
27264P
|
27264P
M04446671
PLATE,A/T O/D CLUTCH THRUST
|
M04446671 |
— | ||
|
27264P
|
27264P
M04446672
PLATE,A/T O/D CLUTCH THRUST
|
M04446672 |
— | ||
|
27289S
|
27289S
M04659883
THRUST WASHER,A/T CLUTCH
|
M04659883 |
— | ||
|
27291P
|
27291P
M04659934
SNAP RING,A/T CLUTCH
|
M04659934 |
— | ||
|
27291Q
|
27291Q
M04505621
SNAP RING,A/T CLUTCH
|
M04505621 |
— | ||
|
27291S
|
27291S
M04505622
SNAP RING,A/T CLUTCH
|
M04505622 |
— | ||
|
27291T
|
27291T
M04377195
SNAP RING,A/T CLUTCH
|
M04377195 |
— | ||
|
27291T
|
27291T
M04412871
SNAP RING,A/T CLUTCH
|
M04412871 |
— | ||
|
27291T
|
27291T
M04412872
SNAP RING,A/T CLUTCH
|
M04412872 |
— | ||
|
27291T
|
27291T
M04412873
SNAP RING,A/T CLUTCH
|
M04412873 |
— | ||
|
27291U
|
27291U
M04659980
SNAP RING,A/T CLUTCH
|
M04659980 |
— | ||
|
27291V
|
27291V
M06501715
SNAP RING,A/T CLUTCH
|
M06501715 |
— | ||
|
27291W
|
27291W
M06501812
SNAP RING,A/T CLUTCH
|
M06501812 |
— | ||
|
27291X
|
27291X
M06501702
SNAP RING,A/T CLUTCH
|
M06501702 |
— | ||
|
27291Y
|
27291Y
M04412203
SNAP RING,A/T CLUTCH
|
M04412203 |
— | ||
|
27294
|
27294
M06502271
O-RING,A/T CLUTCH
|
M06502271 |
— | ||
|
27294P
|
27294P
M06502269
O-RING,A/T CLUTCH
|
M06502269 |
— | ||
|
27294Q
|
27294Q
M06033158
O-RING,A/T CLUTCH
|
M06033158 |
— | ||
|
27298P
|
27298P
M04412209
THRUST BEARING,A/T CLUTCH
|
M04412209 |
— | ||
|
27298S
|
27298S
M04567262
THRUST BEARING,A/T POWER TRAIN
|
M04567262 |
— | ||
|
27338
|
27338
04883013AB
PLATE,A/T U/D CLUTCH
|
04883013AB |
— | ||
|
27338
|
27338
04883014AB
PLATE,A/T U/D CLUTCH
|
04883014AB |
— | ||
|
27338
|
27338
04883015AB
PLATE,A/T U/D CLUTCH
|
04883015AB |
— | ||
|
27338P
|
27338P
M04659053
PLATE,A/T U/D CLUTCH
|
M04659053 |
— | ||
|
27339
|
27339
M04659053
PLATE,A/T U/D CLUTCH
|
M04659053 |
— | ||
|
27339P
|
27339P
M04377194
DISC,A/T REV CLUTCH
|
M04377194 |
— | ||
|
27341
|
27341
M04431610
PISTON,A/T U/D CLUTCH
|
M04431610 |
— | ||
|
27342
|
27342
04531910AB
PISTON,A/T REV & O/D CLUTCH
|
04531910AB |
— | ||
|
27343
|
27343
M04531903
DISC,A/T REV CLUTCH
|
M04531903 |
— | ||
|
27344
|
27344
M05241064
HUB ASSY,A/T INPUT CLUTCH
|
M05241064 |
— | ||
| replacement | |||||
|
27344
|
27344
05017518AB
PISTON,A/T REV & O/D CLUTCH
|
05017518AB |
— | ||
|
27345
|
27345
M04659871
SEAL,A/T U/D CLUTCH PISTON,OTR
|
M04659871 |
— | ||
|
27346
|
27346
M04659056
PLATE,A/T REV CLUTCH
|
M04659056 |
— | ||
|
27347
|
27347
M04659056
PLATE,A/T REV CLUTCH
|
M04659056 |
— | ||
|
27348
|
27348
M04659391
SEAL,A/T U/D CLUTCH PISTON,INR
|
M04659391 |
— | ||
| replacement | |||||
|
27348
|
27348
04659391AB
SEAL,A/T U/D CLUTCH PISTON,INR
|
04659391AB |
— | ||
|
27366
|
27366
04531556AB
SEAL,ENG OIL PUMP TO CYLINDER BLOCK
|
04531556AB |
— | ||
|
27660
|
27660
M04549223
SHAFT,A/T INPUT
|
M04549223 |
— | ||
| replacement | |||||
|
27660
|
27660
04549223AB
SHAFT,A/T INPUT
|
04549223AB |
— | ||
