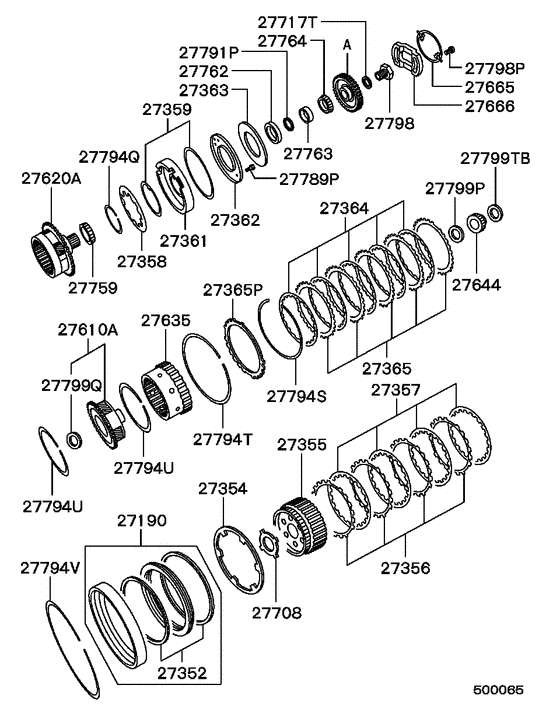

A/t gear & governor (ALL (PLANET CARRIER)) Diagram Mitsubishi ECLIPSE
- Year
- 1998 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS(SPECIAL),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27190
|
27190
M04883078
RETAINER,A/T 2ND & 4TH CLUTCH PISTON
|
M04883078 |
— | ||
|
27352
|
27352
M04856002
SEAL SET,A/T 2ND & 4TH CLUTCH PISTON
|
M04856002 |
— | ||
|
27354
|
27354
M04412248
SPRING,A/T 2ND & 4TH CLUTCH PISTON RETURN
|
M04412248 |
— | ||
|
27355
|
27355
04659618AB
HUB,A/T 2ND & 4TH CLUTCH
|
04659618AB |
— | ||
|
27356
|
27356
M04659054
PLATE,A/T 2ND & 4TH CLUTCH
|
M04659054 |
— | ||
|
27357
|
27357
04799860AA
DISC,A/T 2ND & 4TH CLUTCH
|
04799860AA |
— | ||
|
27358
|
27358
M04412261
SPRING,A/T L-R CLUTCH PISTON RETURN
|
M04412261 |
— | ||
|
27359
|
27359
M04882917
SEAL SET,A/T L-R CLUTCH PISTON
|
M04882917 |
— | ||
|
27361
|
27361
M04431672
PISTON,A/T L-R CLUTCH
|
M04431672 |
— | ||
|
27362
|
27362
M04431648
RETAINER,A/T L-R CLUTCH PISTON
|
M04431648 |
— | ||
|
27363
|
27363
M04431649
GASKET,A/T L-R CLUTCH PISTON RETURN
|
M04431649 |
— | ||
|
27364
|
27364
M04567573
DISC,A/T L-R CLUTCH
|
M04567573 |
— | ||
| replacement | |||||
|
27364
|
27364
04567573AB
DISC,A/T L-R CLUTCH
|
04567573AB |
— | ||
|
27365
|
27365
M04659055
PLATE,A/T L-R CLUTCH
|
M04659055 |
— | ||
|
27365P
|
27365P
04897452AA
PLATE,A/T L-R CLUTCH
|
04897452AA |
— | ||
|
27365P
|
27365P
04897453AA
PLATE,A/T L-R CLUTCH
|
04897453AA |
— | ||
|
27365P
|
27365P
04897454AA
PLATE,A/T L-R CLUTCH
|
04897454AA |
— | ||
|
27365P
|
27365P
04897455AA
PLATE,A/T L-R CLUTCH
|
04897455AA |
— | ||
|
27610A
|
27610A
M04567539
CARRIER ASSY,A/T FR PLANETARY
|
M04567539 |
— | ||
| replacement | |||||
|
27610A
|
27610A
04567539AB
CARRIER ASSY,A/T FR PLANETARY
|
04567539AB |
— | ||
|
27620A
|
27620A
04897329AA
CARRIER ASSY,A/T RR PLANETARY
|
04897329AA |
— | ||
|
27635
|
27635
M04799794
GEAR,A/T FR PLANETARY ANNULUS
|
M04799794 |
— | ||
|
27644
|
27644
M04377080
GEAR,A/T PLANETARY REV SUN
|
M04377080 |
— | ||
|
27665
|
27665
M04659134
PLATE,A/T VALVE BODY
|
M04659134 |
— | ||
|
27666
|
27666
M04567263
THRUST BEARING,A/T CLUTCH
|
M04567263 |
— | ||
|
27708
|
27708
M04412216
THRUST WASHER,A/T POWER TRAIN
|
M04412216 |
— | ||
|
27717T
|
27717T
M06501832
WASHER,A/T POWER TRAIN
|
M06501832 |
— | ||
|
27759
|
27759
04567025AB
CONE,M/T DIFF CASE BEARING
|
04567025AB |
— | ||
|
27762
|
27762
M04567022
CUP,M/T DIFF CASE BEARING
|
M04567022 |
— | ||
|
27763
|
27763
M04412234
CUP,A/T OUTPUT SHAFT GEAR BEARING
|
M04412234 |
— | ||
|
27764
|
27764
M04412235
CONE,A/T OUTPUT SHAFT GEAR BEARING
|
M04412235 |
— | ||
|
27789P
|
27789P
M06501819
SCREW,A/T POWER TRAIN
|
M06501819 |
— | ||
|
27791P
|
27791P
M04412806
SPACER,A/T POWER TRAIN
|
M04412806 |
— | ||
| replacement | |||||
|
27791P
|
27791P
04412806AB
SPACER,A/T POWER TRAIN
|
04412806AB |
— | ||
|
27791P
|
27791P
M04412807
SPACER,A/T POWER TRAIN
|
M04412807 |
— | ||
|
27791P
|
27791P
M04412808
SPACER,A/T POWER TRAIN
|
M04412808 |
— | ||
|
27791P
|
27791P
M04412809
SPACER,A/T POWER TRAIN
|
M04412809 |
— | ||
|
27791P
|
27791P
M04412811
SPACER,A/T POWER TRAIN
|
M04412811 |
— | ||
|
27791P
|
27791P
M04412812
SPACER,A/T POWER TRAIN
|
M04412812 |
— | ||
|
27791P
|
27791P
M04412813
SPACER,A/T POWER TRAIN
|
M04412813 |
— | ||
|
27791P
|
27791P
M04412814
SPACER,A/T POWER TRAIN
|
M04412814 |
— | ||
|
27791P
|
27791P
M04412815
SPACER,A/T POWER TRAIN
|
M04412815 |
— | ||
|
27791P
|
27791P
M04412816
SPACER,A/T POWER TRAIN
|
M04412816 |
— | ||
|
27791P
|
27791P
M04412817
SPACER,A/T POWER TRAIN
|
M04412817 |
— | ||
|
27791P
|
27791P
M04412818
SPACER,A/T POWER TRAIN
|
M04412818 |
— | ||
|
27791P
|
27791P
M04412819
SPACER,A/T POWER TRAIN
|
M04412819 |
— | ||
|
27791P
|
27791P
M04412820
SPACER,A/T POWER TRAIN
|
M04412820 |
— | ||
|
27791P
|
27791P
M04412821
SPACER,A/T POWER TRAIN
|
M04412821 |
— | ||
|
27791P
|
27791P
M04412822
SPACER,A/T POWER TRAIN
|
M04412822 |
— | ||
|
27791P
|
27791P
M04412823
SPACER,A/T POWER TRAIN
|
M04412823 |
— | ||
|
27791P
|
27791P
M04412824
SPACER,A/T POWER TRAIN
|
M04412824 |
— | ||
|
27791P
|
27791P
M04412825
SPACER,A/T POWER TRAIN
|
M04412825 |
— | ||
|
27791P
|
27791P
M04412826
SPACER,A/T POWER TRAIN
|
M04412826 |
— | ||
| replacement | |||||
|
27791P
|
27791P
04412826AB
SPACER,A/T POWER TRAIN
|
04412826AB |
— | ||
|
27791P
|
27791P
M04412827
SPACER,A/T POWER TRAIN
|
M04412827 |
— | ||
|
27791P
|
27791P
M04412828
SPACER,A/T POWER TRAIN
|
M04412828 |
— | ||
|
27791P
|
27791P
M04412829
SPACER,A/T POWER TRAIN
|
M04412829 |
— | ||
|
27791P
|
27791P
M04412830
SPACER,A/T POWER TRAIN
|
M04412830 |
— | ||
|
27794Q
|
27794Q
M06501853
SNAP RING,A/T POWER TRAIN
|
M06501853 |
— | ||
|
27794S
|
27794S
M04412395
SNAP RING,A/T POWER TRAIN
|
M04412395 |
— | ||
|
27794T
|
27794T
04897456AA
PLATE,A/T L-R CLUTCH
|
04897456AA |
— | ||
|
27794U
|
27794U
M06035238
O-RING,A/T CLUTCH
|
M06035238 |
— | ||
|
27794V
|
27794V
M04505591
SNAP RING,A/T POWER TRAIN
|
M04505591 |
— | ||
|
27798
|
27798
M06502607
BOLT,A/T POWER TRAIN
|
M06502607 |
— | ||
|
27798
|
27798
M06503548
BOLT,A/T POWER TRAIN
|
M06503548 |
— | ||
|
27798P
|
27798P
M06503355
SCREW,A/T VALVE BODY INR
|
M06503355 |
— | ||
|
27799P
|
27799P
M04412229
THRUST BEARING,A/T POWER TRAIN
|
M04412229 |
— | ||
| replacement | |||||
|
27799P
|
27799P
04412229AB
THRUST BEARING,A/T POWER TRAIN
|
04412229AB |
— | ||
|
27799Q
|
27799Q
M04567262
THRUST BEARING,A/T POWER TRAIN
|
M04567262 |
— | ||
|
27799TB
|
27799TB
M04567262
THRUST BEARING,A/T POWER TRAIN
|
M04567262 |
— | ||
