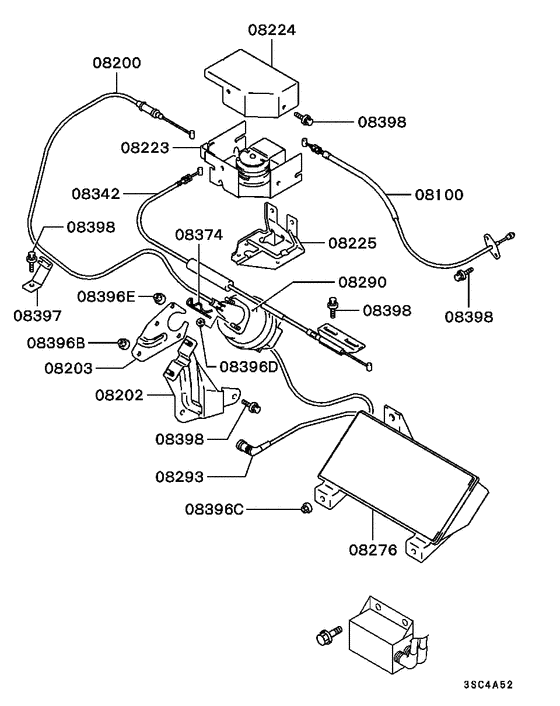

Speed control (-'96MODEL) Diagram Mitsubishi ECLIPSE
- Year
- 1998 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS(SPECIAL),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08100
|
08100
MB910570
CABLE,ACCEL
|
MB910570 |
— | ||
|
08100
|
08100
MB942963
CABLE,ACCEL
|
MB942963 |
— | ||
|
08200
|
08200
M04669144
CABLE,CRUISE CONTROL
|
M04669144 |
— | ||
|
08202
|
08202
MB942844
BRACKET,CRUISE CONTROL ACTUATOR
|
MB942844 |
— | ||
|
08203
|
08203
MR282895
BRACKET,CRUISE CONTROL VACUUM PUMP
|
MR282895 |
— | ||
|
08223
|
08223
MB942967
LINK,CRUISE CONTROL ACTUATOR
|
MB942967 |
— | ||
|
08224
|
08224
MB942845
PROTECTOR,CRUISE CONTROL ACTUATOR LINK
|
MB942845 |
— | ||
|
08225
|
08225
MB920652
BRACKET,CRUISE CONTROL ACTUATOR LINK
|
MB920652 |
— | ||
|
08276
|
08276
M04669226
VACUUM TANK,CRUISE CONTROL
|
M04669226 |
— | ||
|
08290
|
08290
M04669977
SERVO,CRUISE CONTROL VACUUM
|
M04669977 |
— | ||
|
08293
|
08293
M04669225
TUBE HARNESS,CRUISE CONTROL VACUUM
|
M04669225 |
— | ||
|
08342
|
08342
MB942965
CABLE,THROTTLE
|
MB942965 |
— | ||
|
08374
|
08374
M06025867
CLIP,CRUISE CONTROL EQUIP
|
M06025867 |
— | ||
|
08396B
|
08396B
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
08396C
|
08396C
M06100517
NUT,CRUISE CONTROL ELECTRICALS
|
M06100517 |
— | ||
|
08396D
|
08396D
M06100846
NUT,CRUISE CONTROL ELECTRICALS
|
M06100846 |
— | ||
|
08396E
|
08396E
M06101466
NUT,CRUISE CONTROL ELECTRICALS
|
M06101466 |
— | ||
|
08397
|
08397
MB942846
CLIP,CRUISE CONTROL ELECTRICALS
|
MB942846 |
— | ||
|
08398
|
08398
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
