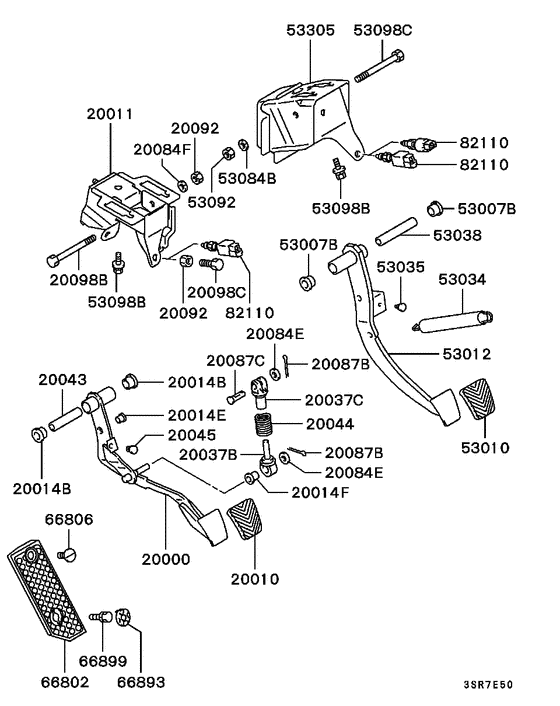

Brake & clutch pedal (M/T) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1996
- Sales region
- MMNA
- Note
- DOHC-TURBO,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MR171369 PEDAL, CLUTCH |
MR171369 |
US $120.38 |
||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20011
|
20011
MB948560 BRACKET, CLUTCH PEDAL |
MB948560 |
US $59.94 |
||
|
20014B
|
20014B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
20014E
|
20014E
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20014F
|
20014F
MB844608 BUSHING, CLUTCH PEDAL10x16.5 |
MB844608 |
US $6.16 |
||
|
20037B
|
20037B
MB844605
ROD, CLUTCH PEDAL RETURN SPRING
|
MB844605 |
— | ||
|
20037C
|
20037C
MB807045 ROD, CLUTCH PEDAL RETURN SPRING |
MB807045 |
US $18.47 |
||
|
20043
|
20043
MB151139 SPACER, CLUTCH PEDAL56 |
MB151139 |
US $6.70 |
||
|
20044
|
20044
MB807307 SPRING, CLUTCH PEDAL RETURN |
MB807307 |
US $9.03 |
||
|
20045
|
20045
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
20084E
|
20084E
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20084F
|
20084F
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20087B
|
20087B
MF472052 PIN, FUEL TANKSplit,2.5x20 |
MF472052 |
US $0.96 |
||
|
20087C
|
20087C
MB844735 PIN, CLUTCH PEDALClevis,10x30 |
MB844735 |
US $4.79 |
||
|
20092
|
20092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098B
|
20098B
MB911025 BOLT, BRAKE PEDAL10x80 |
MB911025 |
US $5.77 |
||
|
20098C
|
20098C
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
53007B
|
53007B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MR102747 PEDAL, BRAKE |
MR102747 |
US $60.68 |
||
|
53034
|
53034
MB534332 SPRING, BRAKE PEDAL RETURN |
MB534332 |
US $12.58 |
||
|
53035
|
53035
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
53038
|
53038
MB891997 SPACER, CLUTCH PEDAL |
MB891997 |
US $8.76 |
||
|
53084B
|
53084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098B
|
53098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53098C
|
53098C
MB892115 BOLT, BRAKE PEDAL10x115 |
MB892115 |
US $6.96 |
||
|
53305
|
53305
MR103696 MEMBER, PEDAL SUPPORT |
MR103696 |
US $117.66 |
||
|
66802
|
66802
MB946501
FOOTREST
|
MB946501 |
— | ||
|
66806
|
66806
MB662196 CLIP, FOOTREST6 |
MB662196 |
US $3.28 |
||
|
66893
|
66893
MB946502 CAP, FOOTREST |
MB946502 |
US $6.70 |
||
|
66899
|
66899
MF240024 BOLT, FUEL TANKWasher assembled,6x14 |
MF240024 |
US $2.60 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
|
82110
|
82110
MB596608 SWITCH, STOP LAMP |
MB596608 |
from US $59.20 |
