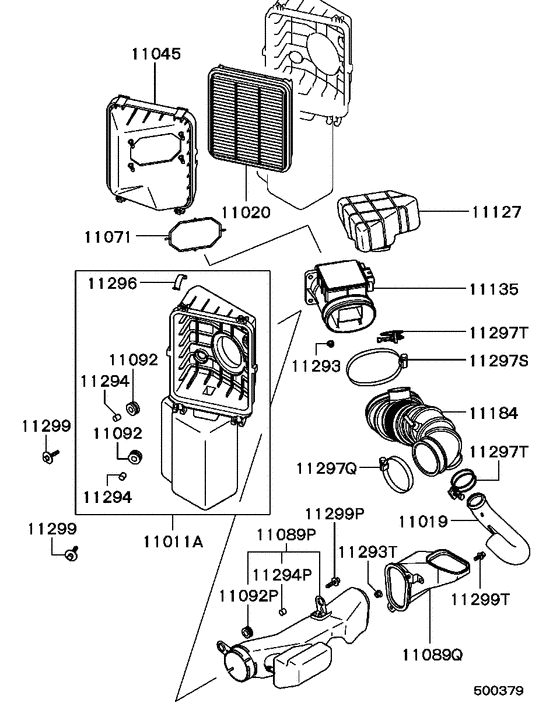

Air cleaner (9606.1-) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MR224892
BODY ASSY,AIR CLEANER
|
MR224892 |
— | ||
|
11011A
|
11011A
MR312416
BODY ASSY,AIR CLEANER
|
MR312416 |
— | ||
|
11019
|
11019
MR299811
PIPE,AIR CLEANER BRANCH
|
MR299811 |
— | ||
|
11020
|
11020
MB906051 ELEMENT, AIR CLEANERNon woven |
MB906051 |
US $71.14 |
||
|
11045
|
11045
MR224891
COVER,AIR CLEANER
|
MR224891 |
— | ||
|
11045
|
11045
MR312415
COVER,AIR CLEANER
|
MR312415 |
— | ||
|
11071
|
11071
MD151672 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD151672 |
from US $7.16 |
||
|
11089P
|
11089P
MR239212
DUCT,AIR CLEANER INTAKE
|
MR239212 |
— | ||
|
11089P
|
11089P
MR299815
DUCT,AIR CLEANER INTAKE
|
MR299815 |
— | ||
|
11089Q
|
11089Q
MB925161 DUCT, AIR CLEANER INTAKE |
MB925161 |
US $92.50 |
||
|
11092
|
11092
MD620598 INSULATOR, AIR CLEANER SUPPORT |
MD620598 |
US $3.26 |
||
|
11092P
|
11092P
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11127
|
11127
MR239213
RESONATOR,AIR CLEANER
|
MR239213 |
— | ||
|
11127
|
11127
MR299148
RESONATOR,AIR CLEANER
|
MR299148 |
— | ||
|
11135
|
11135
MD183609 SENSOR, AIR CLEANER AIR FLOW |
MD183609 |
US $1,045.10 |
||
|
11135
|
11135
MD357338 SENSOR, AIR CLEANER AIR FLOW |
MD357338 |
US $953.16 |
||
|
11184
|
11184
MR224927
DUCT,AIR CLEANER TO THROTTLE BODY
|
MR224927 |
— | ||
|
11184
|
11184
MR299864
DUCT,AIR CLEANER TO THROTTLE BODY
|
MR299864 |
— | ||
|
11293
|
11293
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
11293T
|
11293T
MS440517 NUT, AIR CLEANERWasher assembled,6 |
MS440517 |
from US $1.40 |
||
|
11294
|
11294
MD620599 COLLAR, AIR CLEANER |
MD620599 |
US $2.33 |
||
|
11294P
|
11294P
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11296
|
11296
MD620849 CLAMP, AIR CLEANER INR |
MD620849 |
US $3.55 |
||
|
11297Q
|
11297Q
MF661138 CLAMP, AIR CLEANER83 |
MF661138 |
from US $3.71 |
||
|
11297S
|
11297S
MD151059 CLAMP, AIR CLEANER |
MD151059 |
US $10.53 |
||
|
11297T
|
11297T
MF661123 CLAMP, AIR CLEANER48 |
MF661123 |
US $5.75 |
||
|
11299
|
11299
MD194046 BOLT, AIR CLEANERWasher assembled,6x30 |
MD194046 |
US $3.15 |
||
|
11299P
|
11299P
MS240603 BOLT, RR BUMPERWasher assembled,6x25 |
MS240603 |
US $2.74 |
||
|
11299T
|
11299T
MS240581 BOLT, BRAKE FLUID LINEWasher assembled,6x16 |
MS240581 |
US $2.60 |
