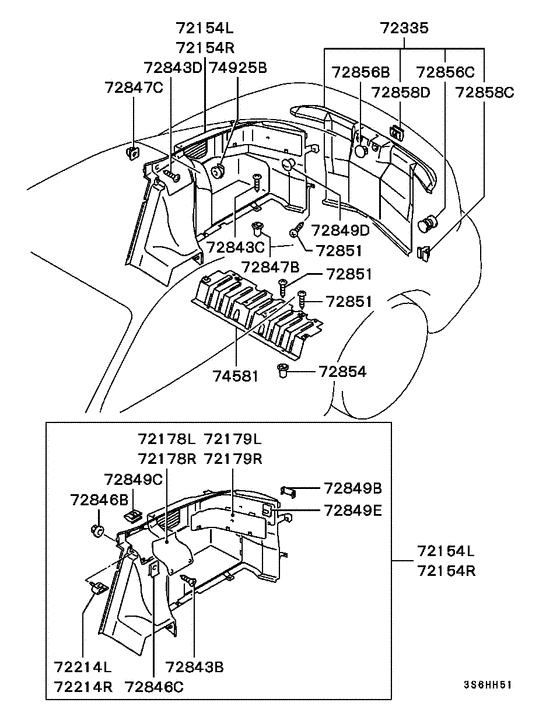

Baggage room trim (RR SIDE & END TRIM,ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72154L
|
72154L
MR708046
TRIM, RR SIDE, LH
|
MR708046 |
— | ||
|
72154R
|
72154R
MR729162
TRIM,RR SIDE,RH
|
MR729162 |
— | ||
|
72178L
|
72178L
MR725723
LID, RR SIDE TRIM, FR LH
|
MR725723 |
— | ||
|
72178R
|
72178R
MR708091
LID, RR SIDE TRIM, FR RH
|
MR708091 |
— | ||
|
72179L
|
72179L
MR729166
LID, RR SIDE TRIM, RR LH
|
MR729166 |
— | ||
|
72179R
|
72179R
MR729168
LID, RR SIDE TRIM, RR RH
|
MR729168 |
— | ||
|
72214L
|
72214L
MB958995 HOLDER, RR SHELF ROD, LH |
MB958995 |
US $5.18 |
||
|
72214R
|
72214R
MB958996 HOLDER, RR SHELF ROD, RH |
MB958996 |
US $5.18 |
||
|
72335
|
72335
MR366084
TRIM,TRUNK ROOM RR END
|
MR366084 |
— | ||
|
72335
|
72335
MR708037
TRIM, TRUNK ROOM RR END
|
MR708037 |
— | ||
|
72843B
|
72843B
MF453976
SCREW, FR DOOR TRIM
|
MF453976 |
— | ||
|
72843C
|
72843C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
72843D
|
72843D
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
72843D
|
72843D
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
72846B
|
72846B
MS440121 NUT, ENG CONTROL EQUIPFlange,4 |
MS440121 |
US $2.22 |
||
|
72846C
|
72846C
MB530249 NUT, RR LAMPSpring,4 |
MB530249 |
US $2.07 |
||
|
72847B
|
72847B
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
72847C
|
72847C
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
72849B
|
72849B
MR168413 CLIP, RR SIDE TRIM |
MR168413 |
US $3.11 |
||
|
72849C
|
72849C
MU470013 CLIP, TAILGATE TRIM |
MU470013 |
from US $0.84 |
||
|
72849D
|
72849D
MU481130 CLIP, RR END TRIM |
MU481130 |
from US $1.03 |
||
|
72849E
|
72849E
MR729164
CLIP, RR SIDE TRIM
|
MR729164 |
— | ||
|
72851
|
72851
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
72854
|
72854
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
72856B
|
72856B
MR722446
CAP, FR DOOR TRIM
|
MR722446 |
— | ||
| replacement | |||||
|
72856B
|
72856B
MB445294 CAP, FR DOOR TRIM |
MB445294 |
US $4.65 |
||
|
72856B
|
72856B
MR780805
CAP,RR SHELF TRIM
|
MR780805 |
— | ||
|
72856C
|
72856C
MR201466
CAP, TRUNK ROOM TRIM
|
MR201466 |
— | ||
|
72858C
|
72858C
MB608152 CLIP, RR PILLAR TRIM |
MB608152 |
US $3.97 |
||
|
72858D
|
72858D
MU470013 CLIP, TAILGATE TRIM |
MU470013 |
from US $0.84 |
||
|
74581
|
74581
MB947857 BRACKET, TRUNK ROOM CARPET |
MB947857 |
US $48.84 |
||
|
74925B
|
74925B
MR149057
ANCHOR, PARCEL NET
|
MR149057 |
— | ||
