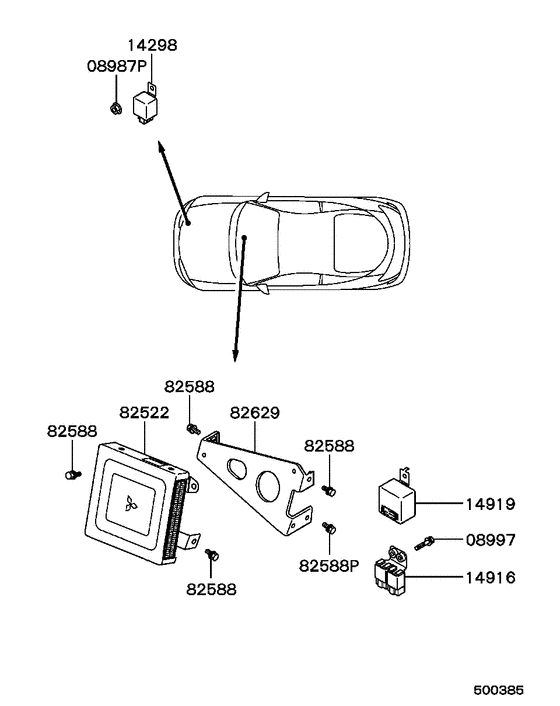

Electrical control (ALL (CONTROL UNIT ETC.)) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08987P
|
08987P
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
08997
|
08997
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
14298
|
14298
MD128752 RELAY, ALTERNATOR SAFETYG82-d-mk1 |
MD128752 |
US $37.62 |
||
|
14916
|
14916
MR224160 RELAY, ENG CONTROL |
MR224160 |
US $39.22 |
||
|
14919
|
14919
MD332124 RELAY,ENG OIL LEVEL |
MD332124 |
US $88.06 |
||
|
82522
|
82522
MD325938
CONTROL UNIT,ENG
|
MD325938 |
— | ||
|
82522
|
82522
MD327134
CONTROL UNIT,ENG
|
MD327134 |
— | ||
|
82522
|
82522
MD332691
CONTROL UNIT,ENG
|
MD332691 |
— | ||
|
82522
|
82522
MD334797
CONTROL UNIT,ENG
|
MD334797 |
— | ||
|
82522
|
82522
MD344763
CONTROL UNIT,ENG
|
MD344763 |
— | ||
|
82522
|
82522
MD346010
CONTROL UNIT,ENG
|
MD346010 |
— | ||
|
82588
|
82588
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82588P
|
82588P
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
82629
|
82629
MD308126 BRACKET, ENG CONTROL MODULATOR |
MD308126 |
US $28.86 |
||
|
82629
|
82629
MD350188
BRACKET,ENG CONTROL MODULATOR
|
MD350188 |
— |
