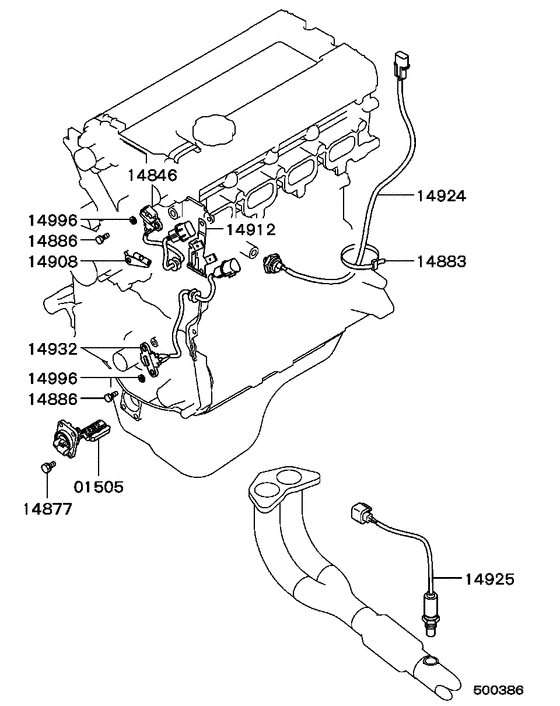

Electrical control (-9605.3 (OXYGEN SENSOR ETC.)) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01505
|
01505
MD302295 SENSOR, ENG OIL PAN OIL LEVEL |
MD302295 |
US $192.82 |
||
|
14846
|
14846
MD300102
SENSOR, CAMSHAFT POSITION
|
MD300102 |
— | ||
|
14846
|
14846
MD327107
SENSOR, CAMSHAFT POSITION
|
MD327107 |
— | ||
| replacement | |||||
|
14846
|
14846
23731W000P SENSOR, CAMSHAFT POSITION |
23731W000P |
from US $83.91 |
||
|
14877
|
14877
MF244823 BOLT, 6x14Washer assembled,6x14 |
MF244823 |
US $3.01 |
||
|
14883
|
14883
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
14886
|
14886
MD182842
BOLT, CRANK ANGLE SENSOR
|
MD182842 |
— | ||
| replacement | |||||
|
14886
|
14886
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14908
|
14908
MD300100 CLAMP, CRANK ANGLE SENSOR |
MD300100 |
US $5.62 |
||
|
14912
|
14912
MD192858 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD192858 |
US $4.14 |
||
|
14912
|
14912
MD333087
BRACKET, CRANK ANGLE SENSOR CONNECTOR
|
MD333087 |
— | ||
|
14924
|
14924
MD300670
SENSOR, ENG CONTROL KNOCK
|
MD300670 |
— | ||
|
14925
|
14925
MD300080
SENSOR,ENG CONTROL OXYGEN
|
MD300080 |
— | ||
|
14932
|
14932
MD300101 SENSOR, ENG CRANK ANGLE |
MD300101 |
US $153.22 |
||
|
14996
|
14996
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
