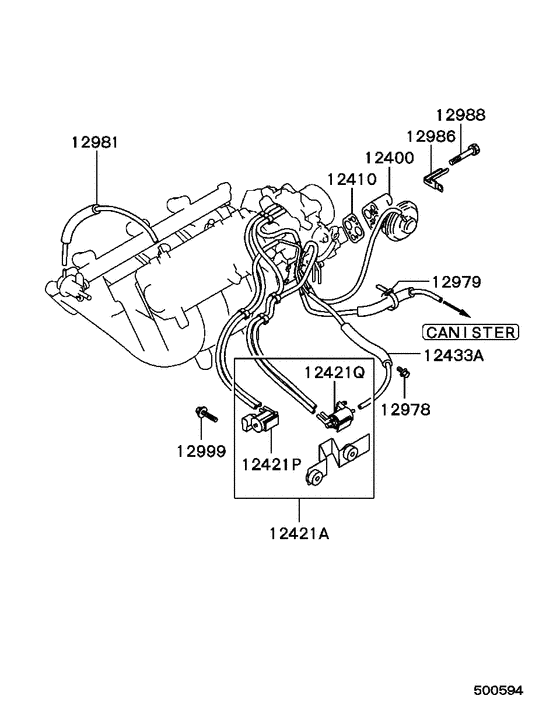

Emission control (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD193660
VALVE,EGR
|
MD193660 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12421A
|
12421A
MR239240
VALVE ASSY,EMISSION SOLENOID
|
MR239240 |
— | ||
|
12421P
|
12421P
MR161747
VALVE,EMISSION SOLENOID
|
MR161747 |
— | ||
|
12421Q
|
12421Q
MR187000
VALVE,EMISSION SOLENOID
|
MR187000 |
— | ||
|
12433A
|
12433A
MR239242
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR239242 |
— | ||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12981
|
12981
MD133228 HOSE ASSY, EMISSION VACUUM CONTROL |
MD133228 |
US $11.10 |
||
|
12986
|
12986
MB043630 CLIP, CRUISE CONTROL EQUIP8.5-40/55 |
MB043630 |
US $2.96 |
||
| replacement | |||||
|
12986
|
12986
MB305867 CLIP, SPEEDOMETER CABLE8.5-50/65 |
MB305867 |
US $4.65 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
