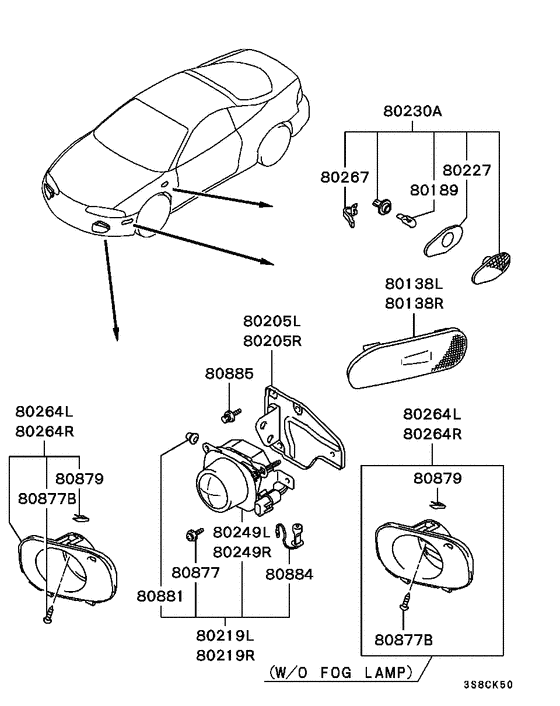

Front exterior lamp ('98MODEL-) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80138L
|
80138L
MB929969
GARNISH KIT,FR BUMPER HOLE,LH
|
MB929969 |
— | ||
|
80138R
|
80138R
MB929970
GARNISH KIT,FR BUMPER HOLE,RH
|
MB929970 |
— | ||
|
80189
|
80189
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80205L
|
80205L
MB882371 BRACKET, FR FOG LAMP, LH |
MB882371 |
US $28.86 |
||
|
80205L
|
80205L
MR221611 BRACKET, FR FOG LAMP, LH |
MR221611 |
US $22.57 |
||
|
80205R
|
80205R
MB882372 BRACKET, FR FOG LAMP, RH |
MB882372 |
US $28.86 |
||
|
80205R
|
80205R
MR221612 BRACKET, FR FOG LAMP, RH |
MR221612 |
US $21.89 |
||
|
80219L
|
80219L
MR162473
LAMP KIT,FOG,FR LH
|
MR162473 |
— | ||
|
80219L
|
80219L
MR344719 LAMP KIT, FOG, FR LH12v-55w,halogen |
MR344719 |
US $553.28 |
||
|
80219R
|
80219R
MR162474
LAMP KIT,FOG,FR RH
|
MR162474 |
— | ||
|
80219R
|
80219R
MR344720 LAMP KIT, FOG, FR RH12v-55w,halogen |
MR344720 |
US $553.28 |
||
|
80227
|
80227
MR191349 GASKET, SIDE TURN SIGNAL LAMP |
MR191349 |
US $2.46 |
||
|
80230A
|
80230A
MR109488 LAMP ASSY, SIDE TURN SIGNAL, FR12v-5w |
MR109488 |
US $28.73 |
||
|
80249L
|
80249L
MR154413
LAMP UNIT,FOG,FR LH
|
MR154413 |
— | ||
|
80249L
|
80249L
MR300753 LAMP UNIT, FOG, FR LH |
MR300753 |
US $496.50 |
||
|
80249R
|
80249R
MR154414
LAMP UNIT,FOG,FR RH
|
MR154414 |
— | ||
|
80249R
|
80249R
MR300754 LAMP UNIT, FOG, FR RH |
MR300754 |
US $496.50 |
||
|
80264L
|
80264L
MR162599
COVER,FR BUMPER,LH
|
MR162599 |
— | ||
|
80264L
|
80264L
MR296097
COVER, FR FOG LAMP, LH
|
MR296097 |
— | ||
|
80264L
|
80264L
MR296277
COVER,FR FOG LAMP,LH
|
MR296277 |
— | ||
|
80264R
|
80264R
MR162600
COVER,FR BUMPER,RH
|
MR162600 |
— | ||
|
80264R
|
80264R
MR296098
COVER, FR FOG LAMP, RH
|
MR296098 |
— | ||
|
80264R
|
80264R
MR296278
COVER,FR FOG LAMP,RH
|
MR296278 |
— | ||
|
80267
|
80267
MB623927 ADAPTER, FR SIDE TURN SIGNAL LAMP |
MB623927 |
US $3.55 |
||
|
80877
|
80877
MS200352 SCREW, FR UNDER GRILLE6x20 |
MS200352 |
US $3.85 |
||
|
80877B
|
80877B
MF453079 SCREW, FR FENDERTapping,4x16 |
MF453079 |
from US $1.52 |
||
|
80879
|
80879
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80881
|
80881
MU810520 GROMMET, HEADLAMP |
MU810520 |
US $7.11 |
||
|
80884
|
80884
MS820964 BULB, HEADLAMP12v-55w,h3 |
MS820964 |
from US $38.20 |
||
|
80885
|
80885
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
