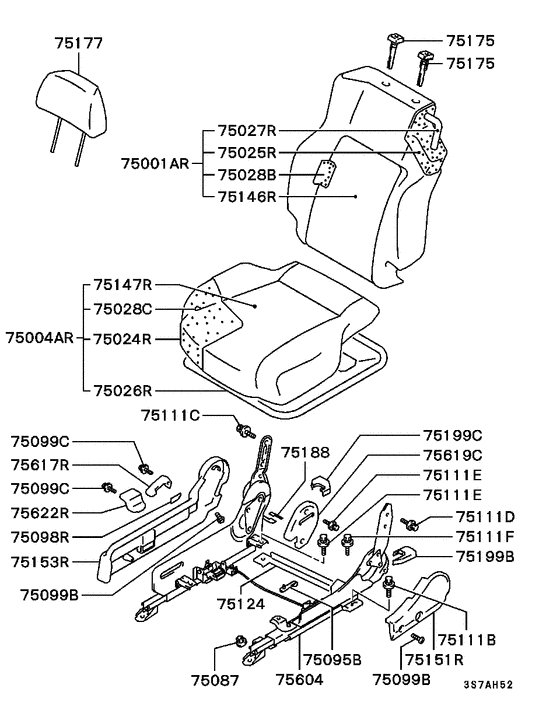

Front seat (RH..NORMAL) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR743932
BACK ASSY,FR SEAT,RH
|
MR743932 |
— | ||
|
75001AR
|
75001AR
MR743935
BACK ASSY,FR SEAT,RH
|
MR743935 |
— | ||
|
75001AR
|
75001AR
MR768914
BACK ASSY,FR SEAT,RH
|
MR768914 |
— | ||
|
75001AR
|
75001AR
MR778346
BACK ASSY,FR SEAT,RH
|
MR778346 |
— | ||
|
75001AR
|
75001AR
MR789374
BACK ASSY,FR SEAT,RH
|
MR789374 |
— | ||
|
75004AR
|
75004AR
MR743924
CUSHION ASSY,FR SEAT,RH
|
MR743924 |
— | ||
|
75004AR
|
75004AR
MR743927
CUSHION ASSY,FR SEAT,RH
|
MR743927 |
— | ||
|
75004AR
|
75004AR
MR768912
CUSHION ASSY,FR SEAT,RH
|
MR768912 |
— | ||
|
75004AR
|
75004AR
MR778344
CUSHION ASSY,FR SEAT,RH
|
MR778344 |
— | ||
|
75004AR
|
75004AR
MR789371
CUSHION ASSY,FR SEAT,RH
|
MR789371 |
— | ||
|
75024R
|
75024R
MR140186 PAD, FR SEAT CUSHION, RH |
MR140186 |
US $279.72 |
||
|
75025R
|
75025R
MR140210
PAD, FR SEAT BACK, RH
|
MR140210 |
— | ||
|
75026R
|
75026R
MR202312
FRAME,FR SEAT CUSHION,RH
|
MR202312 |
— | ||
|
75027R
|
75027R
MR202324
FRAME,FR SEAT BACK,RH
|
MR202324 |
— | ||
|
75028B
|
75028B
MR140189 WIRE, FR SEAT TRIMMING2.0x400 |
MR140189 |
US $2.07 |
||
|
75028B
|
75028B
MR140190
WIRE, FR SEAT TRIMMING
|
MR140190 |
— | ||
|
75028B
|
75028B
MR140202 WIRE, FR SEAT TRIMMING2.6x300 |
MR140202 |
US $1.48 |
||
|
75028C
|
75028C
MR139601
WIRE, RR SEAT TRIMMING
|
MR139601 |
— | ||
|
75028C
|
75028C
MR140188
WIRE, FR SEAT TRIMMING
|
MR140188 |
— | ||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75095B
|
75095B
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.87 |
||
|
75098R
|
75098R
MR731037 CAP, FR SEAT, RH |
MR731037 |
US $5.18 |
||
|
75098R
|
75098R
MR789320
CAP,FR SEAT,RH
|
MR789320 |
— | ||
|
75099B
|
75099B
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099C
|
75099C
MF350983 SCREW, FR SEATWasher assembled,4x8 |
MF350983 |
US $1.33 |
||
|
75111B
|
75111B
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111C
|
75111C
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
75111D
|
75111D
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
75111E
|
75111E
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.33 |
||
|
75111F
|
75111F
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
75124
|
75124
MR140144 BRACKET, FR SEAT SUPPORT |
MR140144 |
US $14.21 |
||
|
75146R
|
75146R
MR744091
COVER,FR SEAT BACK,RH
|
MR744091 |
— | ||
|
75146R
|
75146R
MR744094
COVER,FR SEAT BACK,RH
|
MR744094 |
— | ||
|
75146R
|
75146R
MR768918
COVER,FR SEAT BACK,RH
|
MR768918 |
— | ||
|
75146R
|
75146R
MR778350
COVER,FR SEAT BACK,RH
|
MR778350 |
— | ||
|
75146R
|
75146R
MR789379
COVER,FR SEAT BACK,RH
|
MR789379 |
— | ||
|
75147R
|
75147R
MR744084
COVER,FR SEAT CUSHION,RH
|
MR744084 |
— | ||
|
75147R
|
75147R
MR744086
COVER,FR SEAT CUSHION,RH
|
MR744086 |
— | ||
|
75147R
|
75147R
MR768916
COVER,FR SEAT CUSHION,RH
|
MR768916 |
— | ||
|
75147R
|
75147R
MR778348
COVER,FR SEAT CUSHION,RH
|
MR778348 |
— | ||
|
75147R
|
75147R
MR789376
COVER,FR SEAT CUSHION,RH
|
MR789376 |
— | ||
|
75151R
|
75151R
MR731045 COVER, FR SEAT HINGE, RH |
MR731045 |
US $11.54 |
||
|
75151R
|
75151R
MR789324
COVER,FR SEAT HINGE,RH
|
MR789324 |
— | ||
|
75153R
|
75153R
MR731033 COVER, FR SEAT SIDE SHIELD, RH |
MR731033 |
US $46.62 |
||
|
75153R
|
75153R
MR789317
COVER,FR SEAT SIDE SHIELD,RH
|
MR789317 |
— | ||
|
75175
|
75175
MR731047 GUIDE, FR SEAT HEADRESTW/lock |
MR731047 |
US $9.32 |
||
|
75175
|
75175
MR731049 GUIDE, FR SEAT HEADRESTW/o lock |
MR731049 |
US $9.32 |
||
|
75175
|
75175
MR789325 GUIDE, FR SEAT HEADRESTW/lock |
MR789325 |
US $9.32 |
||
|
75175
|
75175
MR789326 GUIDE, FR SEAT HEADRESTW/o lock |
MR789326 |
US $9.32 |
||
|
75177
|
75177
MR719000 HEADREST, FR SEAT |
MR719000 |
US $250.12 |
||
|
75177
|
75177
MR741222 HEADREST, FR SEATLea/vnl |
MR741222 |
US $525.62 |
||
|
75177
|
75177
MR773206 HEADREST, FR SEAT |
MR773206 |
US $493.58 |
||
|
75177
|
75177
MR773214
HEADREST,FR SEAT
|
MR773214 |
— | ||
|
75177
|
75177
MR778357
HEADREST,FR SEAT
|
MR778357 |
— | ||
|
75177
|
75177
MR789384
HEADREST,FR SEAT
|
MR789384 |
— | ||
|
75188
|
75188
MR140156 KNOB, FR SEAT WALK-IN |
MR140156 |
US $3.85 |
||
|
75199B
|
75199B
MR717636
COVER, FR SEAT ANCHOR, RR
|
MR717636 |
— | ||
|
75199C
|
75199C
MR717642
COVER, FR SEAT ANCHOR, RR
|
MR717642 |
— | ||
|
75604
|
75604
MR251510
ADJUSTER, FR SEAT SLIDE
|
MR251510 |
— | ||
|
75617R
|
75617R
MR731053 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR731053 |
US $14.65 |
||
|
75617R
|
75617R
MR766380
KNOB,FR SEAT RECLINING ADJUSTER,RH
|
MR766380 |
— | ||
|
75619C
|
75619C
MR731041 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR731041 |
US $26.64 |
||
|
75619C
|
75619C
MR789322
COVER,FR SEAT RECLINING ADJUSTER,LWR
|
MR789322 |
— | ||
|
75622R
|
75622R
MR731059 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MR731059 |
US $14.36 |
||
|
75622R
|
75622R
MR743270 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MR743270 |
US $14.65 |
