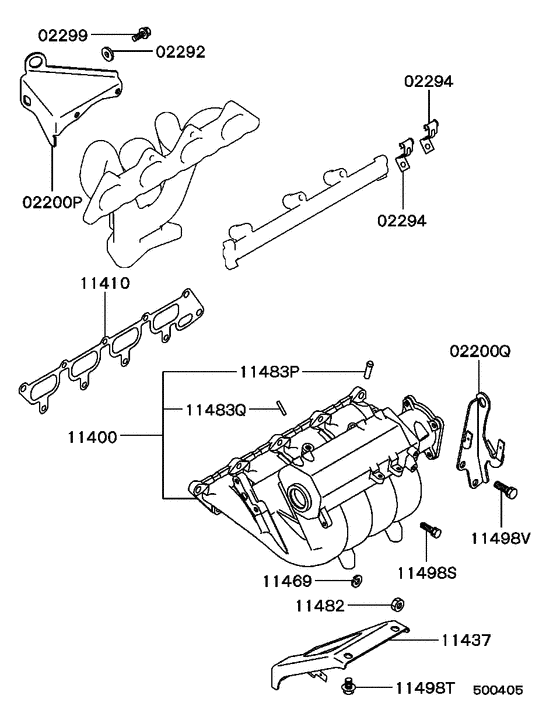

Inlet manifold Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200P
|
02200P
MD199937
ENGINE HANGER
|
MD199937 |
— | ||
|
02200Q
|
02200Q
MD330734
ENGINE HANGER
|
MD330734 |
— | ||
|
02200Q
|
02200Q
MD335436 ENGINE HANGER |
MD335436 |
US $19.98 |
||
|
02292
|
02292
MD302571
WASHER, ENG HANGER
|
MD302571 |
— | ||
|
02294
|
02294
MD189999
CLAMP, ACCEL CABLE SUPPORT
|
MD189999 |
— | ||
|
02299
|
02299
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
11400
|
11400
MD317112 MANIFOLD, INLET |
MD317112 |
US $1,105.10 |
||
|
11410
|
11410
MD192031 GASKET, INLET MANIFOLD |
MD192031 |
from US $12.54 |
||
|
11437
|
11437
MD322837
STAY,INLET MANIFOLD
|
MD322837 |
— | ||
|
11469
|
11469
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
11482
|
11482
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
11483P
|
11483P
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11498S
|
11498S
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
11498T
|
11498T
MF140056 BOLT, ENG BREATHERFlange,10x16 |
MF140056 |
US $1.37 |
||
|
11498V
|
11498V
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
