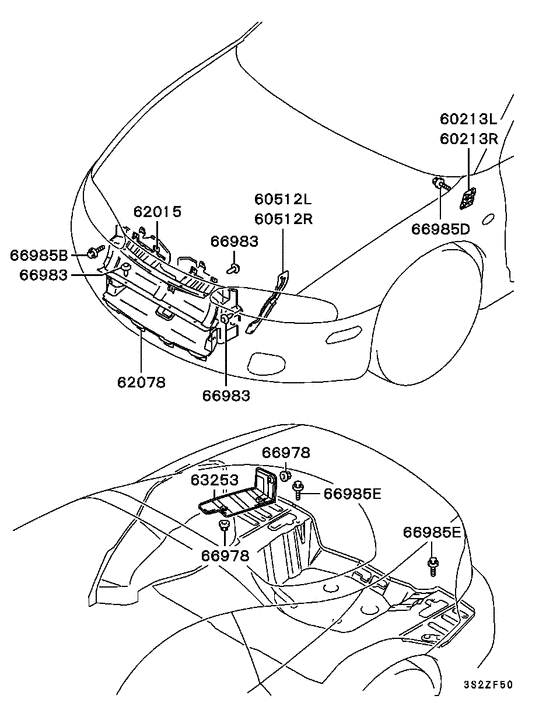

Loose panel (DUCT UNDER COVER ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60213L
|
60213L
MB885762
STAY, FR DECK, LH
|
MB885762 |
— | ||
|
60213R
|
60213R
MB885763 STAY, FR DECK, RH |
MB885763 |
US $10.95 |
||
|
60512L
|
60512L
MR118297 STAY, TRACTION HOOK, LH |
MR118297 |
US $46.62 |
||
|
60512R
|
60512R
MR118298
STAY, TRACTION HOOK, RH
|
MR118298 |
— | ||
|
62015
|
62015
MB909295
BRACKET, FR BUMPER, CTR
|
MB909295 |
— | ||
|
62078
|
62078
MB914216
DUCT, FR BUMPER AIR GUIDE, CTR
|
MB914216 |
— | ||
|
62078
|
62078
MR236478
DUCT,FR BUMPER AIR GUIDE,CTR
|
MR236478 |
— | ||
|
62078
|
62078
MR294553
DUCT, FR BUMPER AIR GUIDE, CTR
|
MR294553 |
— | ||
|
63253
|
63253
MR170652 COVER, QTR PANEL, RR LWR |
MR170652 |
US $13.02 |
||
|
66978
|
66978
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
66983
|
66983
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.68 |
||
|
66985B
|
66985B
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
66985D
|
66985D
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
66985E
|
66985E
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
66985E
|
66985E
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
66985E
|
66985E
MS240145 BOLT, ENG CONTROL EQUIPWasher assembled,8x20 |
MS240145 |
from US $1.42 |
