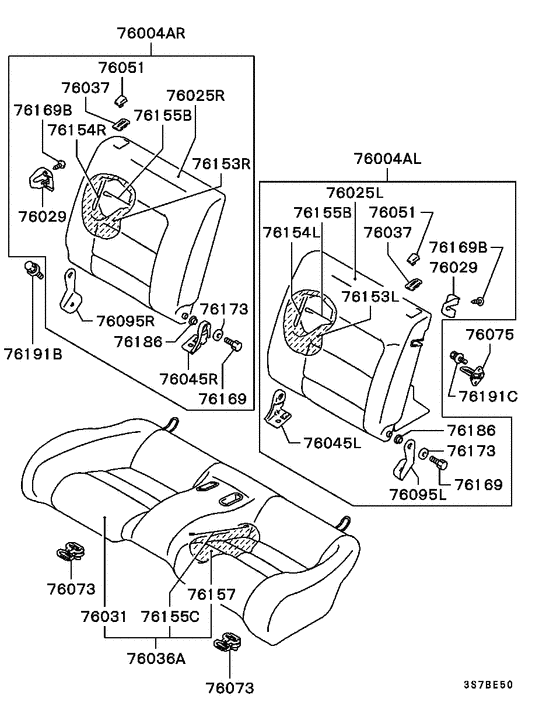

Rear seat Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76004AL
|
76004AL
MR731981
BACK ASSY,RR SEAT,LH
|
MR731981 |
— | ||
|
76004AL
|
76004AL
MR741226
BACK ASSY,RR SEAT,LH
|
MR741226 |
— | ||
|
76004AL
|
76004AL
MR768919
BACK ASSY,RR SEAT,LH
|
MR768919 |
— | ||
|
76004AL
|
76004AL
MR778351
BACK ASSY,RR SEAT,LH
|
MR778351 |
— | ||
|
76004AL
|
76004AL
MR789380
BACK ASSY,RR SEAT,LH
|
MR789380 |
— | ||
|
76004AR
|
76004AR
MR731985
BACK ASSY,RR SEAT,RH
|
MR731985 |
— | ||
|
76004AR
|
76004AR
MR741227
BACK ASSY,RR SEAT,RH
|
MR741227 |
— | ||
|
76004AR
|
76004AR
MR768920
BACK ASSY,RR SEAT,RH
|
MR768920 |
— | ||
|
76004AR
|
76004AR
MR778352
BACK ASSY,RR SEAT,RH
|
MR778352 |
— | ||
|
76004AR
|
76004AR
MR789381
BACK ASSY,RR SEAT,RH
|
MR789381 |
— | ||
|
76025L
|
76025L
MR744095
COVER,RR SEAT BACK,LH
|
MR744095 |
— | ||
|
76025L
|
76025L
MR744097
COVER,RR SEAT BACK,LH
|
MR744097 |
— | ||
|
76025L
|
76025L
MR768921
COVER,RR SEAT BACK,LH
|
MR768921 |
— | ||
|
76025L
|
76025L
MR778353
COVER,RR SEAT BACK,LH
|
MR778353 |
— | ||
|
76025L
|
76025L
MR789382
COVER,RR SEAT BACK,LH
|
MR789382 |
— | ||
|
76025R
|
76025R
MR744098
COVER,RR SEAT BACK,RH
|
MR744098 |
— | ||
|
76025R
|
76025R
MR744100
COVER,RR SEAT BACK,RH
|
MR744100 |
— | ||
|
76025R
|
76025R
MR768922
COVER,RR SEAT BACK,RH
|
MR768922 |
— | ||
|
76025R
|
76025R
MR778354
COVER,RR SEAT BACK,RH
|
MR778354 |
— | ||
|
76025R
|
76025R
MR789383
COVER,RR SEAT BACK,RH
|
MR789383 |
— | ||
|
76029
|
76029
MR219974
COVER,RR SEAT CATCH
|
MR219974 |
— | ||
|
76031
|
76031
MR731989
COVER,RR SEAT CUSHION
|
MR731989 |
— | ||
|
76031
|
76031
MR741281 COVER, RR SEAT CUSHIONVnl/vnl |
MR741281 |
US $896.90 |
||
|
76031
|
76031
MR768900
COVER,RR SEAT CUSHION
|
MR768900 |
— | ||
|
76031
|
76031
MR778338
COVER,RR SEAT CUSHION
|
MR778338 |
— | ||
|
76031
|
76031
MR789342
COVER,RR SEAT CUSHION
|
MR789342 |
— | ||
|
76036A
|
76036A
MR718964
CUSHION ASSY,RR SEAT
|
MR718964 |
— | ||
|
76036A
|
76036A
MR741278 CUSHION ASSY, RR SEATVnl/vnl |
MR741278 |
US $1,771.20 |
||
|
76036A
|
76036A
MR768891
CUSHION ASSY,RR SEAT
|
MR768891 |
— | ||
|
76036A
|
76036A
MR778334
CUSHION ASSY,RR SEAT
|
MR778334 |
— | ||
|
76036A
|
76036A
MR789341
CUSHION ASSY,RR SEAT
|
MR789341 |
— | ||
|
76037
|
76037
MR732484 GARNISH, RR SEAT FOLDING KNOB |
MR732484 |
US $6.81 |
||
|
76037
|
76037
MR789742
GARNISH,RR SEAT FOLDING KNOB
|
MR789742 |
— | ||
|
76045L
|
76045L
MR140231
HINGE, RR SEAT, CTR LH
|
MR140231 |
— | ||
|
76045R
|
76045R
MR140232
HINGE, RR SEAT, CTR RH
|
MR140232 |
— | ||
|
76051
|
76051
MR732487
KNOB, RR SEAT FOLDING
|
MR732487 |
— | ||
|
76051
|
76051
MR789743
KNOB,RR SEAT FOLDING
|
MR789743 |
— | ||
|
76073
|
76073
MB873947 STOPPER, RR SEAT |
MB873947 |
from US $2.03 |
||
|
76075
|
76075
MB519811 STRIKER, RR SEAT |
MB519811 |
US $11.25 |
||
|
76095L
|
76095L
MR140229
HINGE, RR SEAT SIDE, LH
|
MR140229 |
— | ||
|
76095R
|
76095R
MR140230
HINGE, RR SEAT SIDE, RH
|
MR140230 |
— | ||
|
76153L
|
76153L
MR140225 PAD, RR SEAT BACK, LH |
MR140225 |
US $253.08 |
||
|
76153R
|
76153R
MR140226 PAD, RR SEAT BACK, RH |
MR140226 |
US $253.08 |
||
|
76154L
|
76154L
MR202329
FRAME,RR SEAT BACK,LH
|
MR202329 |
— | ||
|
76154R
|
76154R
MR202330
FRAME,RR SEAT BACK,RH
|
MR202330 |
— | ||
|
76155B
|
76155B
MR140262 WIRE, RR SEAT TRIMMING1.6x440 |
MR140262 |
US $2.52 |
||
|
76155C
|
76155C
MR140211 WIRE, RR SEAT TRIMMING2.0x180 |
MR140211 |
US $2.22 |
||
|
76155C
|
76155C
MR140274 WIRE, RR SEAT TRIMMING2.6x260 |
MR140274 |
US $2.22 |
||
|
76157
|
76157
MR140220 PAD, RR SEAT CUSHION |
MR140220 |
US $406.22 |
||
|
76169
|
76169
MR140261
SCREW, RR SEAT
|
MR140261 |
— | ||
|
76169B
|
76169B
MF453391 SCREW, SCUFF PLATETapping,5x12 |
MF453391 |
US $2.19 |
||
|
76173
|
76173
MF450193 WASHER, FR FENDERPlain,6 |
MF450193 |
from US $1.40 |
||
|
76186
|
76186
MR140264 BUSHING, RR SEAT |
MR140264 |
US $3.11 |
||
|
76191B
|
76191B
MU240028 BOLT, RR SEATWasher assenbled,8x22 |
MU240028 |
US $2.52 |
||
|
76191C
|
76191C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
