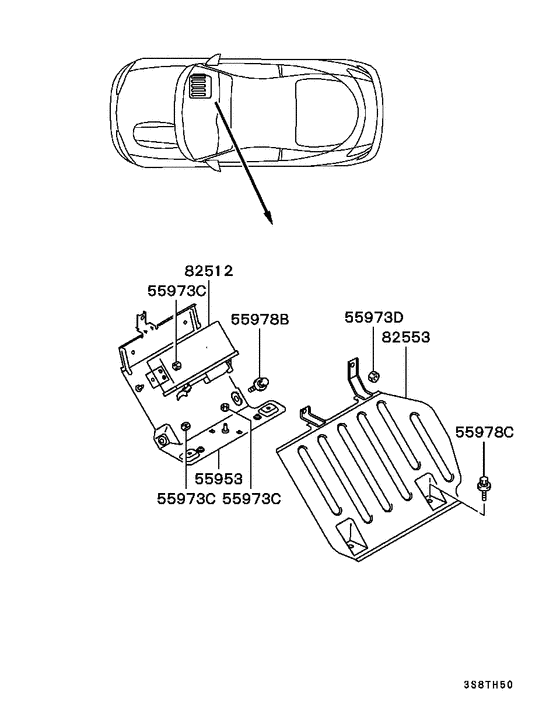

Relay,flasher & sensor (ABS C/U & BRACKET) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55953
|
55953
MB953681 BRACKET, ABS CONTROL UNIT |
MB953681 |
US $79.92 |
||
|
55973C
|
55973C
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
55973D
|
55973D
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
55978B
|
55978B
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
55978C
|
55978C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82512
|
82512
MB921844 CONTROL UNIT, ABS0 265 103 071 |
MB921844 |
US $3,139.20 |
||
|
82553
|
82553
MB953680 COVER, CONTROL UNIT |
MB953680 |
US $74 |
