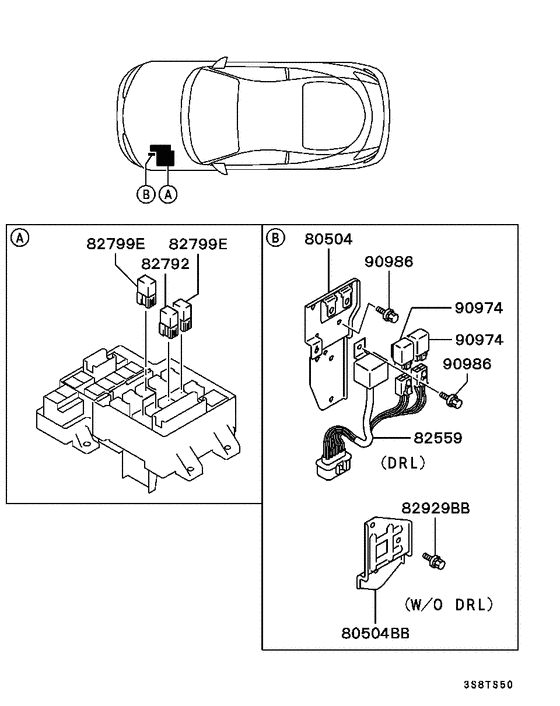

Relay,flasher & sensor (RELAY (AROUND ENGINE ROOM)) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80504
|
80504
MR225516 BRACKET, DRL RELAY |
MR225516 |
US $19.98 |
||
|
80504
|
80504
MR368954
BRACKET,DRL RELAY
|
MR368954 |
— | ||
|
80504BB
|
80504BB
MR245689 BRACKET, DRL RELAY |
MR245689 |
US $20.72 |
||
|
80504BB
|
80504BB
MR300195 BRACKET, DRL RELAY |
MR300195 |
US $29.60 |
||
|
82559
|
82559
MB894050
CONTROL UNIT,DRL
|
MB894050 |
— | ||
|
82792
|
82792
MR122409 RELAY, SPECIAL LAMPG8h-ua-007500 |
MR122409 |
US $41.72 |
||
|
82799E
|
82799E
MR122409 RELAY, SPECIAL LAMPG8h-ua-007500 |
MR122409 |
US $41.72 |
||
|
82929BB
|
82929BB
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
90974
|
90974
MB894080 RELAYG8ms-1a21t-r-n35 |
MB894080 |
US $54.02 |
||
|
90986
|
90986
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
