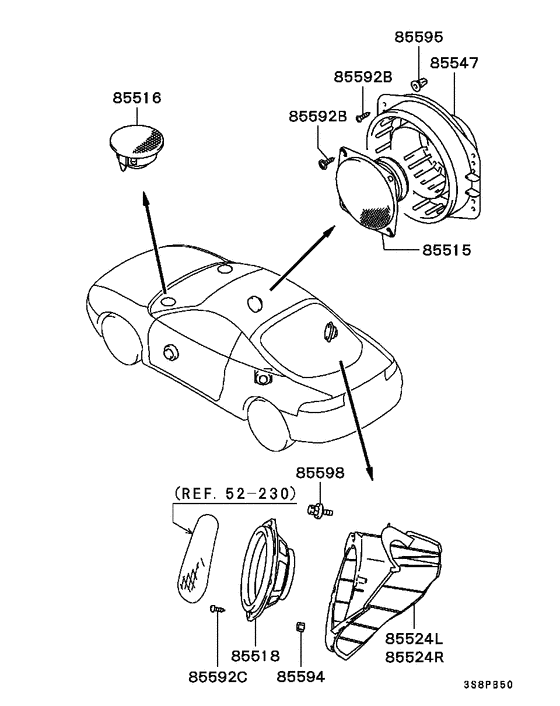

Speaker Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85515
|
85515
MR141384
SPEAKER,FR DOOR
|
MR141384 |
— | ||
|
85516
|
85516
MR719214 SPEAKER, FR10w,8cm |
MR719214 |
US $106.56 |
||
|
85516
|
85516
MR757688
SPEAKER, FR
|
MR757688 |
— | ||
|
85518
|
85518
MR141386
SPEAKER,QTR
|
MR141386 |
— | ||
|
85524L
|
85524L
MB954989
BRACKET,QTR SPEAKER,LH
|
MB954989 |
— | ||
|
85524R
|
85524R
MB954990
BRACKET,QTR SPEAKER,RH
|
MB954990 |
— | ||
|
85547
|
85547
MB863733
COVER,FR DOOR SPEAKER
|
MB863733 |
— | ||
|
85592B
|
85592B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
85592C
|
85592C
MF453091 SCREW, FUEL FILLER LID LOCKING |
MF453091 |
from US $1.77 |
||
|
85594
|
85594
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
85595
|
85595
MU480032 GROMMET, SIDE AIR DAM5 |
MU480032 |
from US $0.96 |
||
|
85598
|
85598
MS240199 BOLT, FR SEAT BELTWasher assembled,6x20 |
MS240199 |
US $1.92 |
||
|
52 230
|
Interior trim
52 230
|
||||
