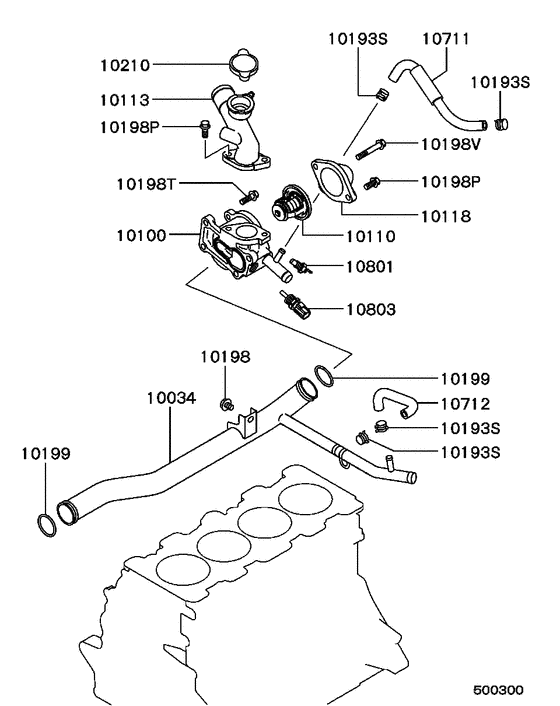

Water pipe & thermostat Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD331600
PIPE,WATER PUMP INLET
|
MD331600 |
— | ||
|
10100
|
10100
MD311594
CASE, THERMOSTAT
|
MD311594 |
— | ||
|
10110
|
10110
MD315301 THERMOSTAT82 |
MD315301 |
from US $15.97 |
||
|
10113
|
10113
MD326226
FITTING,COOLING WATER OUTLET HOSE
|
MD326226 |
— | ||
|
10118
|
10118
MD300834
FITTING, COOLING WATER INLET HOSE
|
MD300834 |
— | ||
|
10193S
|
10193S
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
10198T
|
10198T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198V
|
10198V
MF140235 BOLT, TIMING GEAR CASEFlange,8x50 |
MF140235 |
from US $1.40 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
10711
|
10711
MD193577 HOSE, THROTTLE BODY WATER FEED |
MD193577 |
US $16.42 |
||
|
10712
|
10712
MD195053
HOSE, THROTTLE BODY WATER RETURN
|
MD195053 |
— | ||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD182467
SENSOR UNIT, WATER TEMPERATURE
|
MD182467 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
