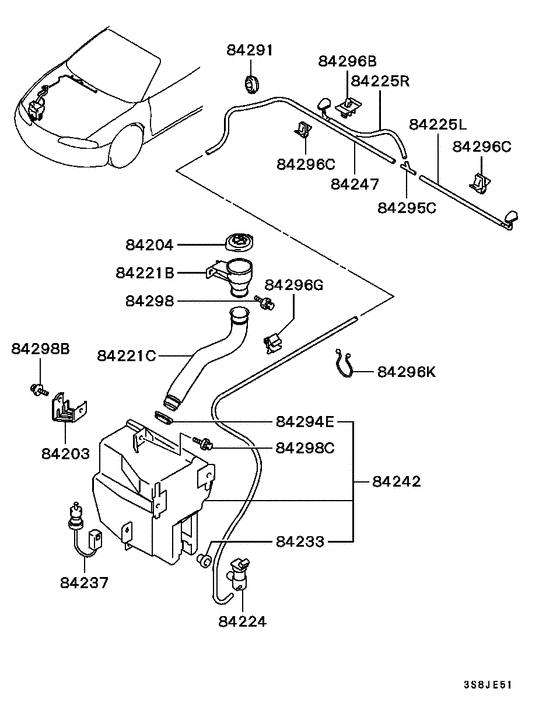

Windshield wiper & washer (WASHER TANK (W/O HEADLAMP WASHER)) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84203
|
84203
MR245403
BRACKET,WINDSHIELD WASHER TANK
|
MR245403 |
— | ||
|
84204
|
84204
MR245402 CAP, WINDSHIELD WASHER TANK FILLER |
MR245402 |
from US $4.80 |
||
|
84221B
|
84221B
MR245401
HOSE,WINDSHIELD WASHER TANK FILLER
|
MR245401 |
— | ||
|
84221C
|
84221C
MR245400
HOSE,WINDSHIELD WASHER TANK FILLER
|
MR245400 |
— | ||
|
84224
|
84224
MB286961 MOTOR, WINDSHIELD WASHER |
MB286961 |
US $69.83 |
||
|
84225L
|
84225L
MB882697 NOZZLE, WINDSHIELD WASHER, LH |
MB882697 |
US $38.99 |
||
|
84225R
|
84225R
MB882698
NOZZLE, WINDSHIELD WASHER, RH
|
MB882698 |
— | ||
|
84233
|
84233
MB617937
GASKET, RR WINDOW WASHER TANK
|
MB617937 |
— | ||
| replacement | |||||
|
84233
|
84233
MC845482 GASKET, WINDSHIELD WASHER MOTOR |
MC845482 |
from US $0.96 |
||
|
84237
|
84237
MR221127
SWITCH,WINDSHIELD WASHER TANK FLUID LEVEL
|
MR221127 |
— | ||
|
84237
|
84237
MR245397
SWITCH,WINDSHIELD WASHER TANK FLUID LEVEL
|
MR245397 |
— | ||
|
84242
|
84242
MR221122
TANK,WINDSHIELD WASHER
|
MR221122 |
— | ||
|
84242
|
84242
MR275081
TANK,WINDSHIELD WASHER
|
MR275081 |
— | ||
|
84247
|
84247
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
84291
|
84291
MU670033 PLUG, BODY20 |
MU670033 |
from US $3.45 |
||
|
84294E
|
84294E
MR221626 GROMMET, WINDSHIELD WASHER |
MR221626 |
US $2.81 |
||
|
84295C
|
84295C
MB623192 JOINT, WINDSHIELD WASHER |
MB623192 |
from US $1.15 |
||
|
84296B
|
84296B
MU481137 CLIP, WINDSHIELD WASHER6x2 |
MU481137 |
US $7.39 |
||
|
84296C
|
84296C
MU481009 CLIP, WINDSHIELD WASHER8 |
MU481009 |
US $2.60 |
||
|
84296G
|
84296G
MB952475 CLIP, WINDSHIELD WASHER7 |
MB952475 |
US $3.11 |
||
|
84296K
|
84296K
MB132098
CLIP, WIRING
|
MB132098 |
— | ||
|
84296K
|
84296K
MB248414 CLIP, FUEL TANK30 |
MB248414 |
US $3.40 |
||
|
84298
|
84298
MS240143 BOLT, FUEL LINEWasher assembled,6x25 |
MS240143 |
US $3.83 |
||
|
84298B
|
84298B
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
84298C
|
84298C
MR245404
BOLT,WINDSHIELD WASHER
|
MR245404 |
— | ||
