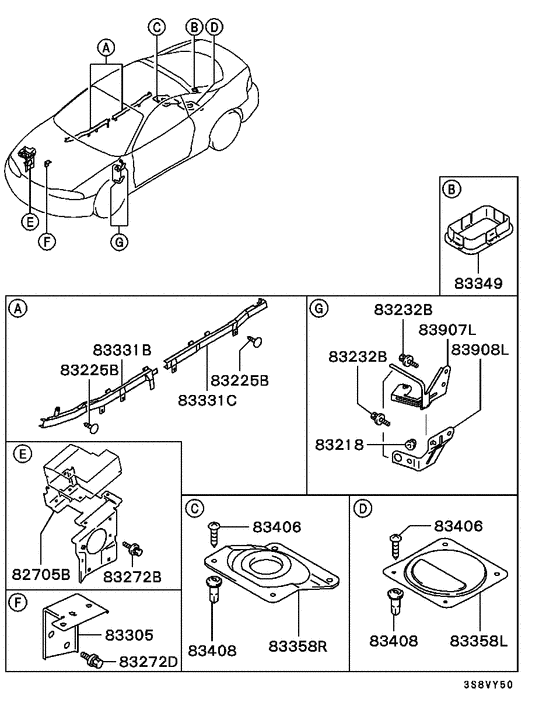

Wiring & attaching parts (BRACKET,PROTECTOR,ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82705B
|
82705B
MR238346
BRACKET,RELAY BOX
|
MR238346 |
— | ||
|
83218
|
83218
MS440512 NUT, AIR SPOILERWasher assembled,6 |
MS440512 |
US $2.46 |
||
|
83225B
|
83225B
MB189333 CLIP, SCUFF PLATE |
MB189333 |
US $2.46 |
||
|
83232B
|
83232B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83272B
|
83272B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83272D
|
83272D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
83305
|
83305
MR238823
BRACKET,HARNESS CONNECTOR
|
MR238823 |
— | ||
|
83331B
|
83331B
MB920232
PROTECTOR, HARNESS
|
MB920232 |
— | ||
|
83331C
|
83331C
MB920236
PROTECTOR, HARNESS
|
MB920236 |
— | ||
|
83349
|
83349
MB920120 PROTECTOR, WIRING |
MB920120 |
US $3.85 |
||
|
83358L
|
83358L
MR142543 COVER, FUEL GAUGE UNIT TOOLING HOLE |
MR142543 |
US $21.46 |
||
|
83358R
|
83358R
MB863850 COVER, FUEL GAUGE UNIT TOOLING HOLE, RH |
MB863850 |
US $21.89 |
||
|
83406
|
83406
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
83408
|
83408
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
83907L
|
83907L
MB943249 BRACKET, JUNCTION BLOCK, UPR LH |
MB943249 |
US $11.69 |
||
|
83908L
|
83908L
MB943250 BRACKET, JUNCTION BLOCK, LWR LH |
MB943250 |
US $9.47 |
