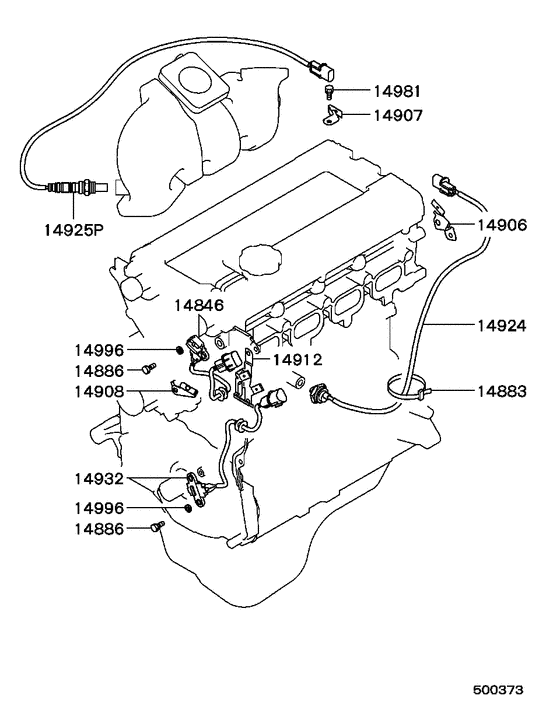

Electrical control (ALL (OXYGEN SENSOR ETC.)) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1996
- Sales region
- MMNA
- Note
- DOHC-TURBO,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14846
|
14846
MD300102
SENSOR, CAMSHAFT POSITION
|
MD300102 |
— | ||
|
14883
|
14883
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
14886
|
14886
MD182842
BOLT, CRANK ANGLE SENSOR
|
MD182842 |
— | ||
| replacement | |||||
|
14886
|
14886
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14906
|
14906
MD308214 BRACKET, KNOCK SENSOR CONNECTOR |
MD308214 |
US $9.92 |
||
|
14907
|
14907
MD191315 BRACKET, OXYGEN SENSOR CONNECTOR |
MD191315 |
US $10.66 |
||
|
14908
|
14908
MD300100 CLAMP, CRANK ANGLE SENSOR |
MD300100 |
US $5.62 |
||
|
14912
|
14912
MD192858 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD192858 |
US $4.14 |
||
|
14924
|
14924
MD300670
SENSOR, ENG CONTROL KNOCK
|
MD300670 |
— | ||
|
14925P
|
14925P
MD313045 SENSOR, ENG CONTROL OXYGEN |
MD313045 |
US $556.19 |
||
|
14932
|
14932
MD300101 SENSOR, ENG CRANK ANGLE |
MD300101 |
US $153.22 |
||
|
14981
|
14981
MF244224 BOLT, A/C PIPINGWasher assembled,6x16 |
MF244224 |
US $3.28 |
||
|
14996
|
14996
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
