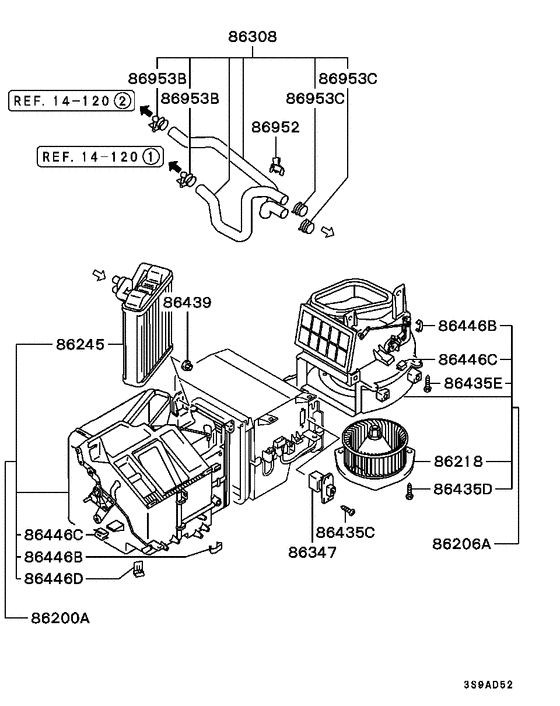

Heater unit & piping Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1996
- Sales region
- MMNA
- Note
- DOHC-TURBO,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86200A
|
86200A
MB898979
HEATER ASSY
|
MB898979 |
— | ||
|
86206A
|
86206A
MB898980
BLOWER ASSY, HEATER
|
MB898980 |
— | ||
|
86218
|
86218
MR146946
FAN & MOTOR KIT, HEATER
|
MR146946 |
— | ||
|
86245
|
86245
MR218776 CORE, HEATER |
MR218776 |
US $463.01 |
||
|
86308
|
86308
MR162454
HOSE KIT, HEATER WATER
|
MR162454 |
— | ||
|
86347
|
86347
MB439839
RESISTOR, HEATER
|
MB439839 |
— | ||
|
86435C
|
86435C
MF453079 SCREW, FR FENDERTapping,4x16 |
MF453079 |
from US $1.52 |
||
|
86435D
|
86435D
MF205004 SCREW, HEATERMachine cone point,4x16 |
MF205004 |
US $1.63 |
||
|
86435E
|
86435E
MF205026 SCREW, TAILGATE LOCKINGMachine cone point,5x16 |
MF205026 |
US $2.07 |
||
|
86439
|
86439
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86446B
|
86446B
MB081308
CLIP, RR HEATER
|
MB081308 |
— | ||
|
86446C
|
86446C
MR116199 CLIP, HEATER |
MR116199 |
US $2.87 |
||
|
86446D
|
86446D
MR116198 CLIP, HEATER |
MR116198 |
US $2.37 |
||
|
86952
|
86952
MS470478 CLIP, HEATER PIPING22.5-22.5 |
MS470478 |
US $5.62 |
||
|
86953B
|
86953B
MA609047 CLIP, FUEL LINED=25 |
MA609047 |
from US $2.24 |
||
|
86953C
|
86953C
MU470040 CLAMP, HEATER PIPING21.7 |
MU470040 |
from US $4.76 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
